Land Rover Discovery: Rear Drive Halfshafts
Outer Constant
Velocity Joint
Boot (G1791657) Removal
Removal
CAUTION:
The outer CV joint and the rear halfshaft are serviced together and
must not be separated. The inner joint and boot have to be removed
to allow the outer joint boot to be replaced.
NOTE:
Some variation in the illustrations may occur, but the essential
information is always correct.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Rear Right Halfshaft (205-05 Rear Drive Halfshafts,
Removal and Installation).
Refer to: Rear Left Halfshaft (205-05 Rear Drive Halfshafts, Removal
and Installation).
![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index248(7).jpg)
NOTE:
Using suitable cloth, clean the grease from the halfshaft.
![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index249(6).jpg)

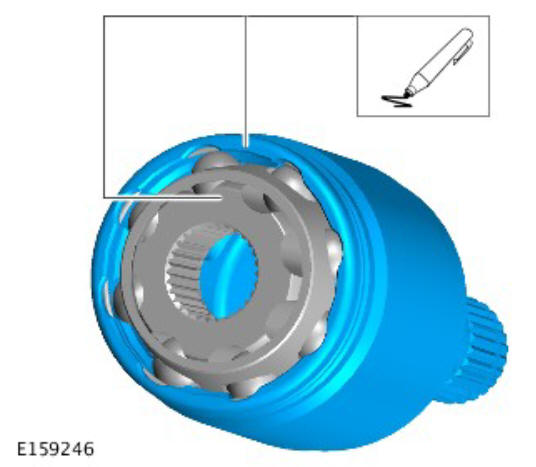

Mark the position of the component(s) as shown.
![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index250(6).jpg)

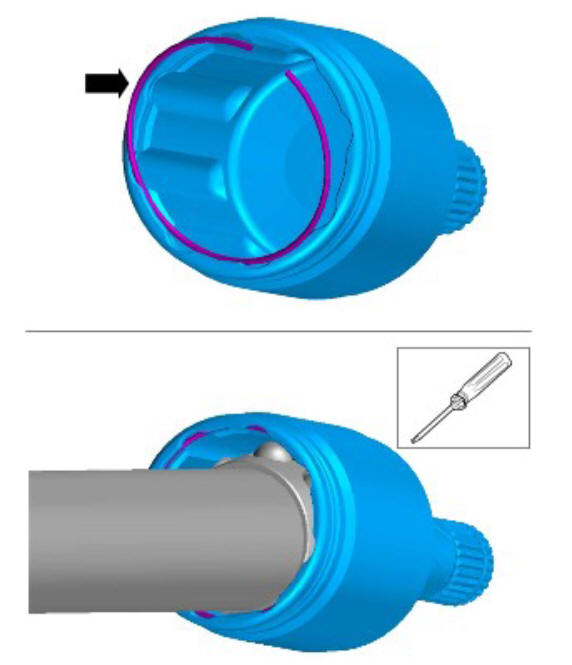

NOTE:
Discard the retaining clip.

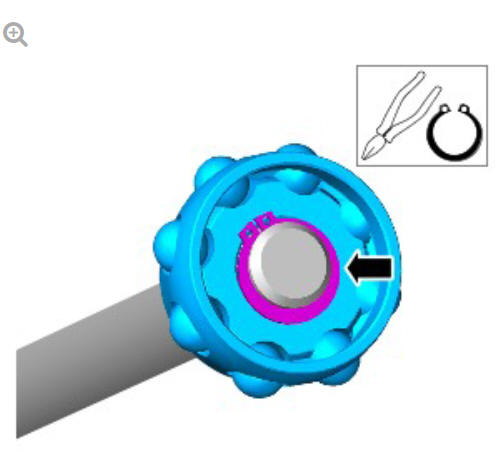

![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index251(6).jpg)
![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index252(6).jpg)

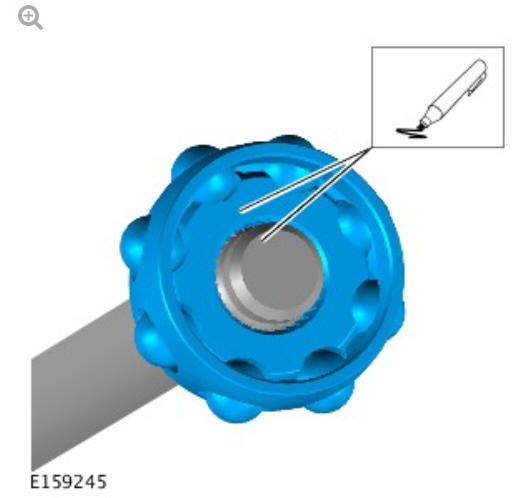

Mark the position of the component(s) as shown.
![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index253(5).jpg)

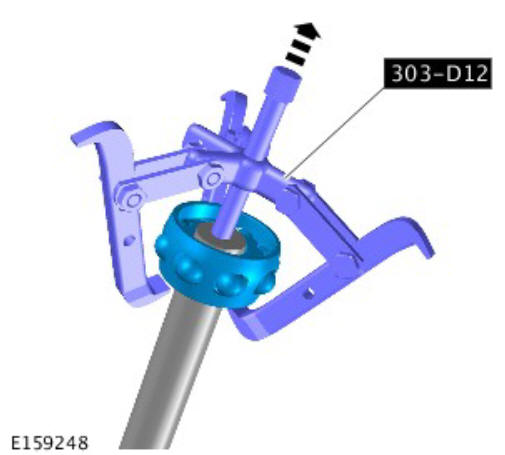

Special Tool(s): 303-D121

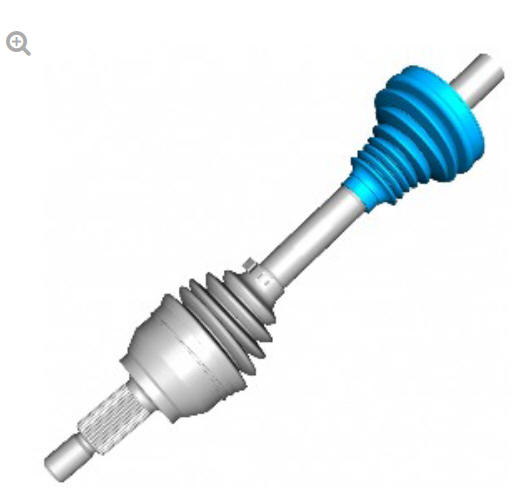

CAUTION:
Discard the component.
![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index254(5).jpg)

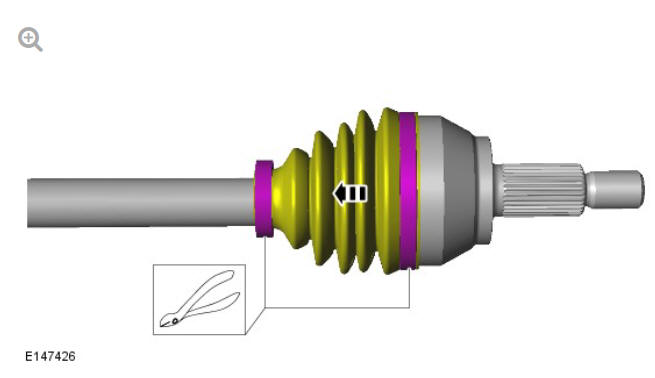

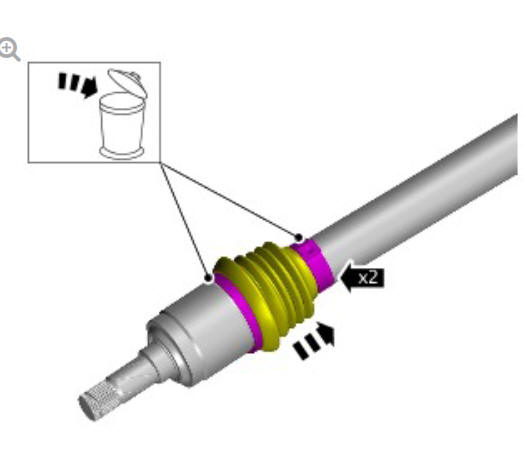

NOTE:
Discard the retaining clips.
![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index255(6).jpg)

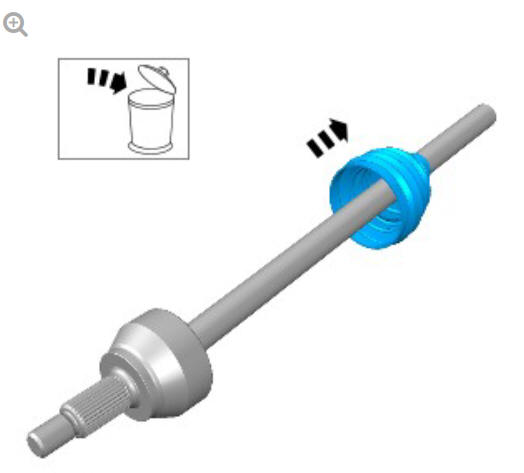

![Rear drive halfshafts outer constant velocity joint boot (G1791657) Removal](images/books/227/index256(6).jpg)
