Land Rover Discovery: Technical specifications

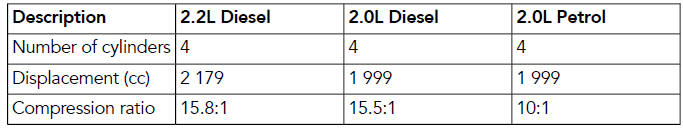

ENGINE SPECIFICATIONS

ENGINE SPECIFICATIONS

Note: For further information, contact a Retailer/Authorised Repairer and quote the Vehicle Identification Number (VIN).

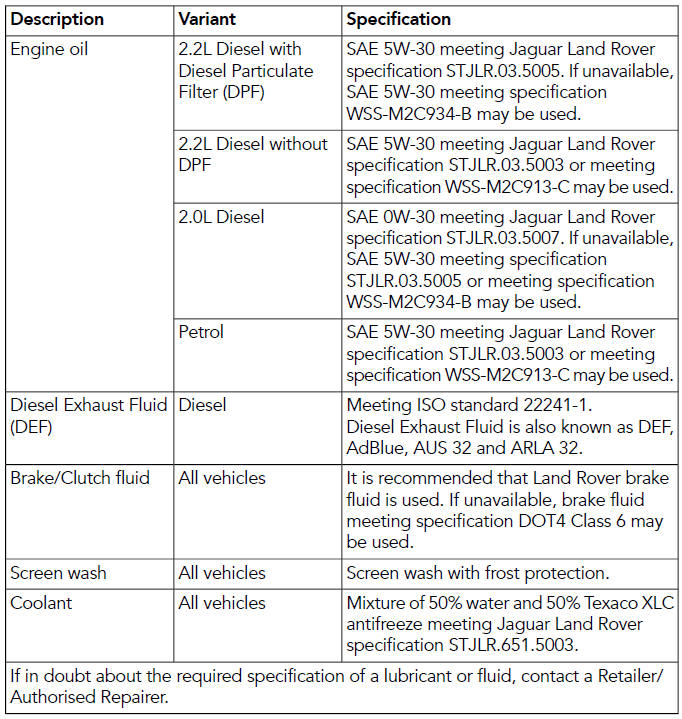

LUBRICANTS AND FLUIDS

LUBRICANTS AND FLUIDS

Castrol Edge Professional exclusively recommended by Land Rover.

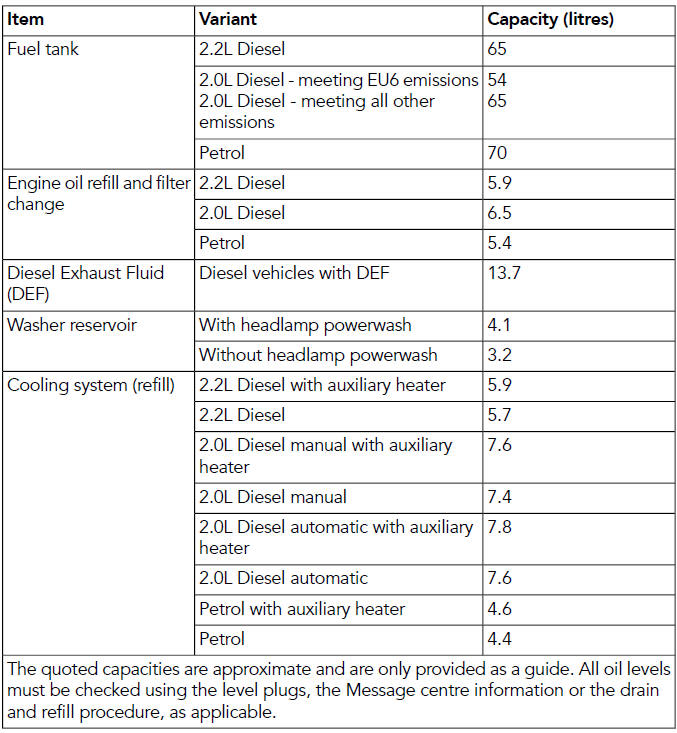

CAPACITIES

CAPACITIES

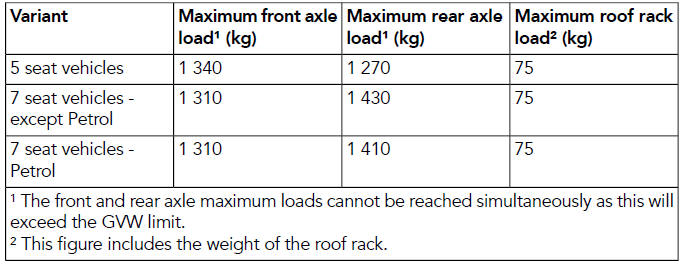

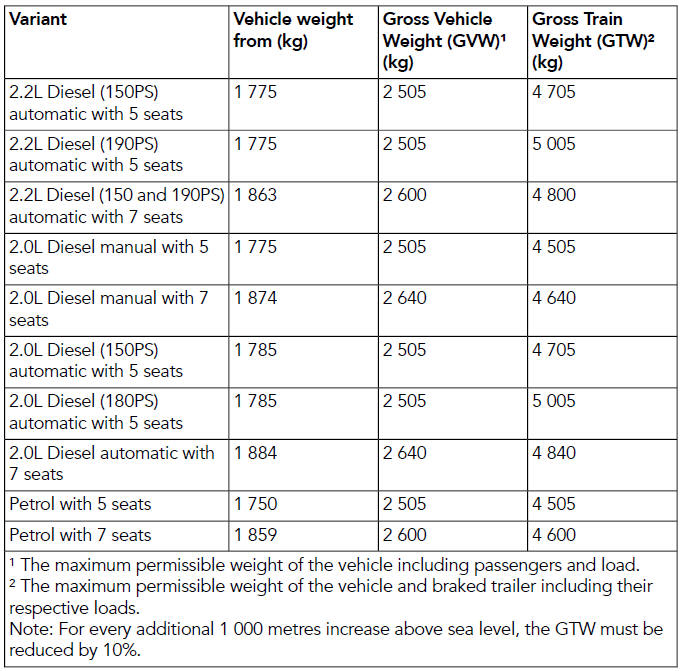

WEIGHTS

WEIGHTS

Technical specifications

Technical specifications

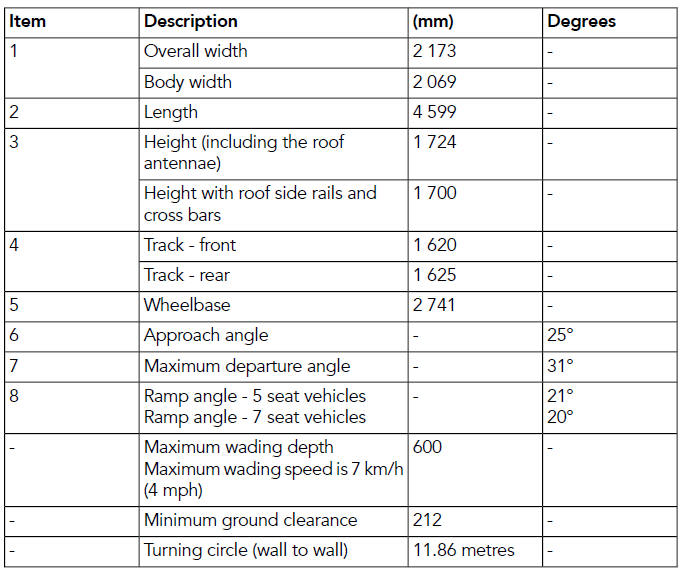

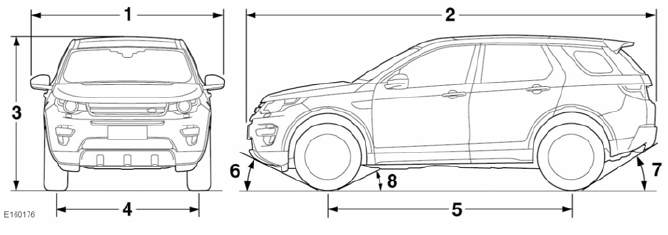

DIMENSIONS

DIMENSIONS

DIMENSIONS

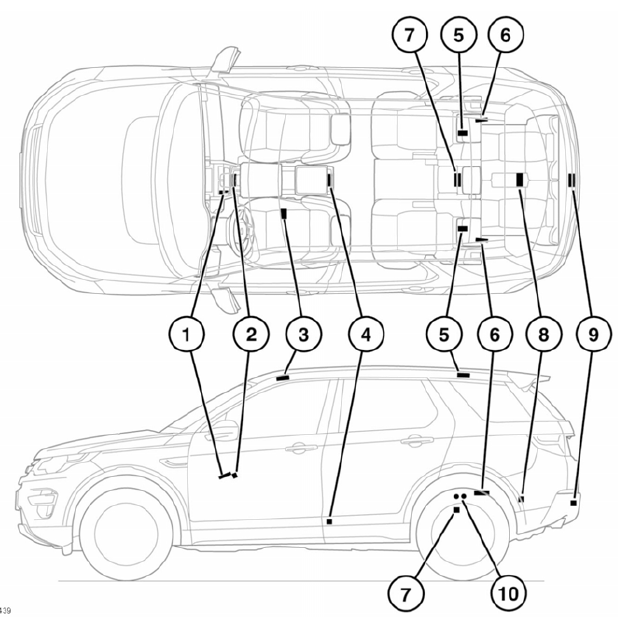

SMART KEY TRANSMITTER LOCATIONS

SMART KEY TRANSMITTER LOCATIONS

  1. Centre console transmitter.
  2. Centre console transmitter.
  3. Roof keyless receiver.
  4. Rear of centre console transmitter.
  5. Loadspace transmitters.
  6. Floor console rear transmitters (5 seat vehicles).
  7. Floor console rear transmitter (7 seat vehicles).
  8. Floor console rear transmitter (7 seat vehicles).
  9. Tailgate passive entry receiver.
  10. Low frequency antennas.

Any person fitted with an implanted medical device should make sure the device is kept at a distance of at least 22 cm away from any transmitter mounted in the vehicle. This is to avoid any possibility of interference between the system and the device.

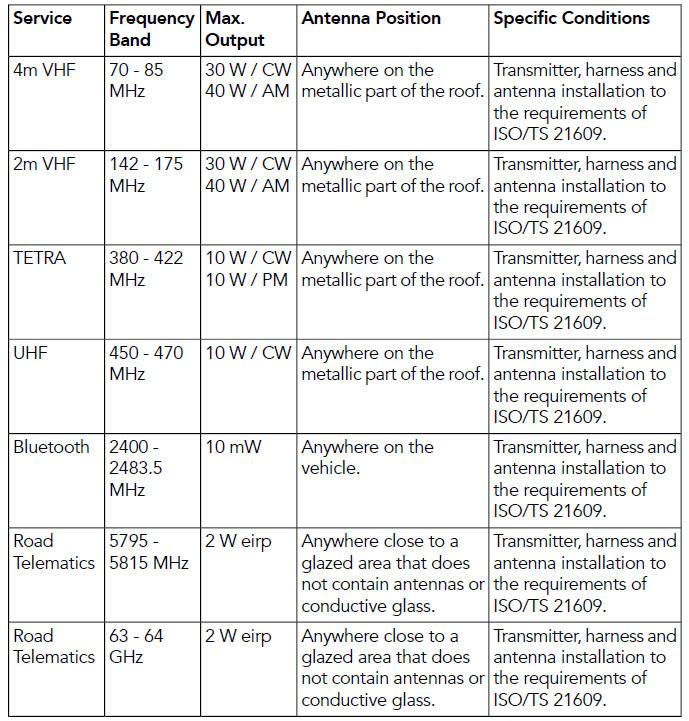

RADIO FREQUENCY SPECTRUM REGULATION STATEMENTS

RADIO FREQUENCY SPECTRUM REGULATION STATEMENTS

South Korea only

Omnidirectional transmission or point-to-multipoint transmission is prohibited according to the law.
