Land Rover Discovery: Steering Linkage Tie Rod (G1788230)  / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Steering-System / Steering Linkage Tie Rod (G1788230)  / Removal and Installation

SPECIAL TOOL(S)

SPECIAL TOOL(S)

SPECIAL TOOL(S)

REMOVAL

NOTES:

  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

Refer to: Steering Gear Boot (211-03 Steering Linkage, Removal and Installation).

Steering linkage tie rod (G1788230) removal and installation

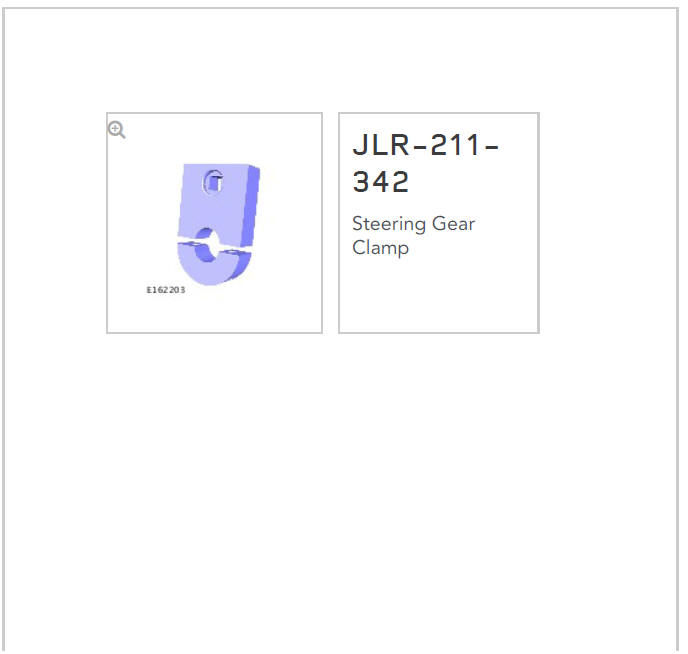

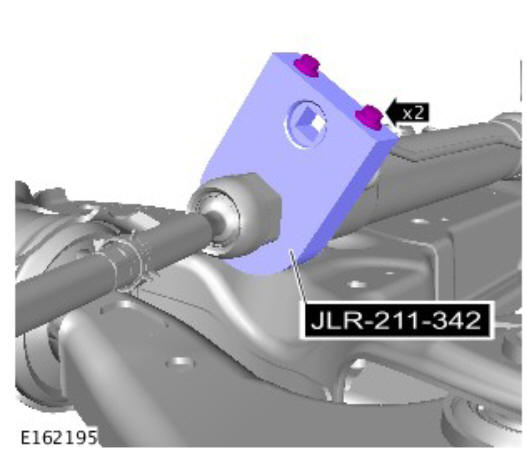

Special Tool(s): JLR-211-342

CAUTION:

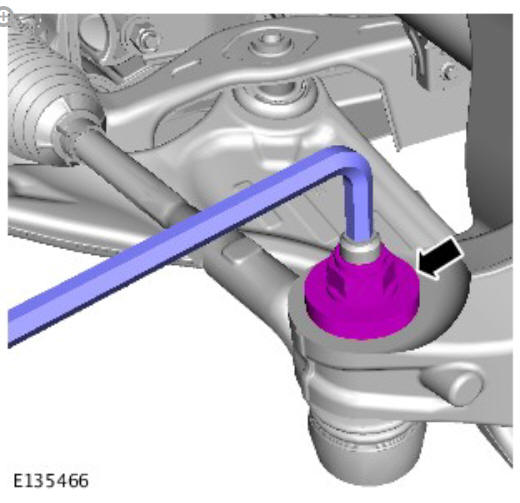

Make sure the steering gear bar does not rotate.

Steering linkage tie rod (G1788230) removal and installation

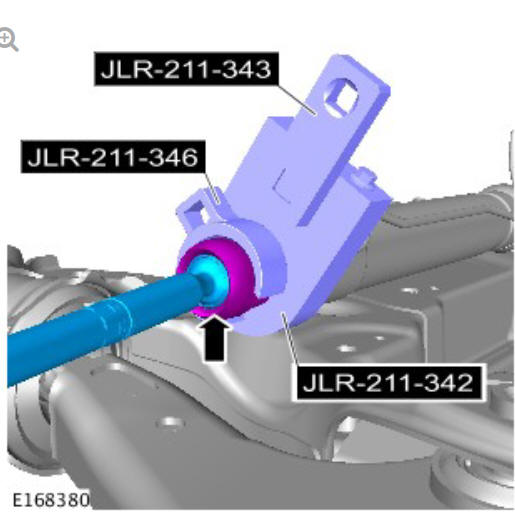

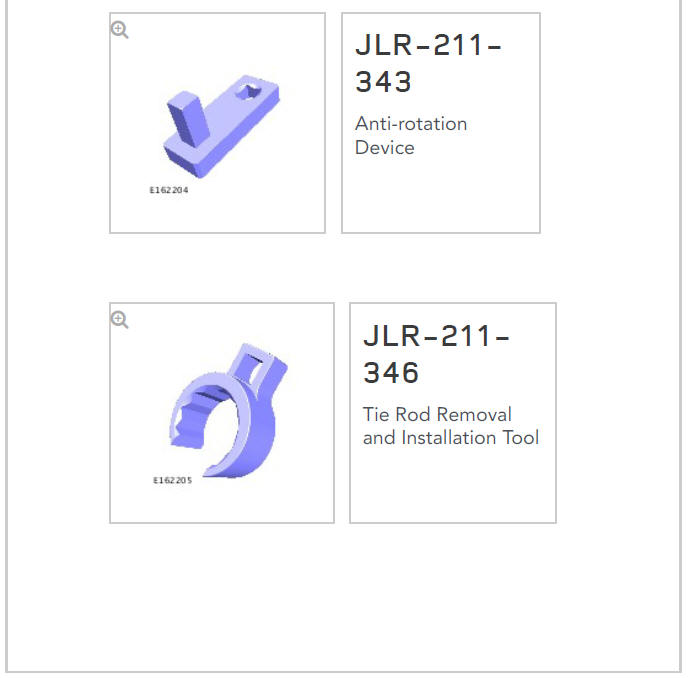

Using a suitable tool, secure the special tool JLR-211-343.

Special Tool(s): JLR-211-342, JLR-211-343, JLR-211-346

Torque: 105 Nm

INSTALLATION

  1. To install, reverse the removal procedure.

Steering linkage tie rod end (G1360702) removal and installation

SPECIAL TOOL(S)

SPECIAL TOOL(S)

PART(S)

PART(S)

PART(S)

REMOVAL

NOTE:

RH illustration shown, LH is similar.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

Steering linkage tie rod end (G1360702) removal and installation

CAUTIONS:

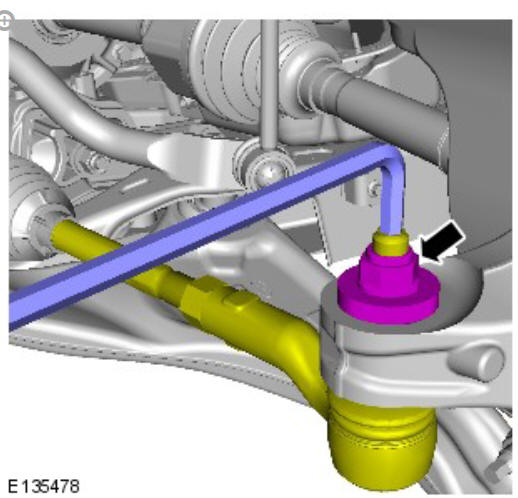

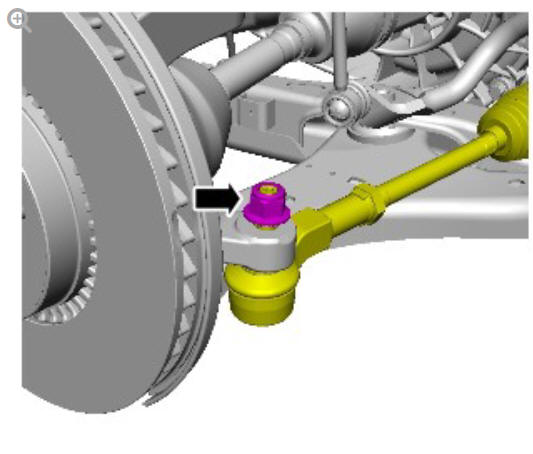

  • Make sure that the ball joint ball does not rotate.
  • Discard the nut.

Steering linkage tie rod end (G1360702) removal and installation

CAUTION:

Make sure that the ball joint seal is not damaged.

Steering linkage tie rod end (G1360702) removal and installation

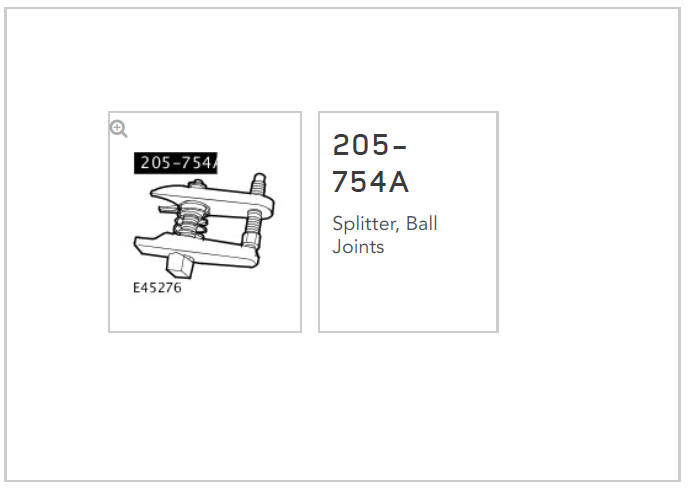

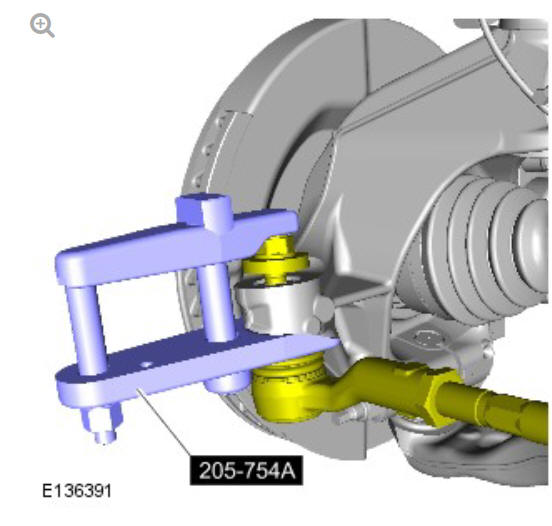

Special Tool(s): 205-754A

Steering linkage tie rod end (G1360702) removal and installation

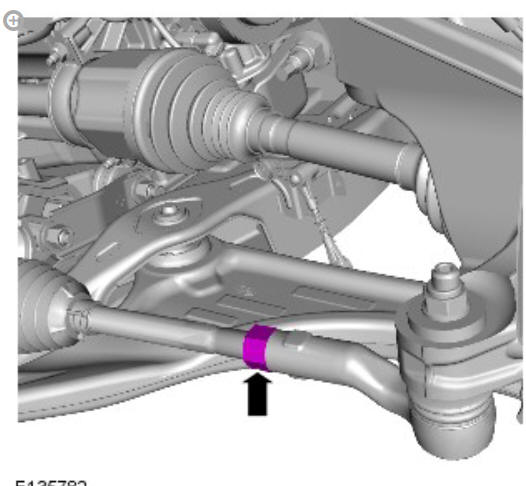

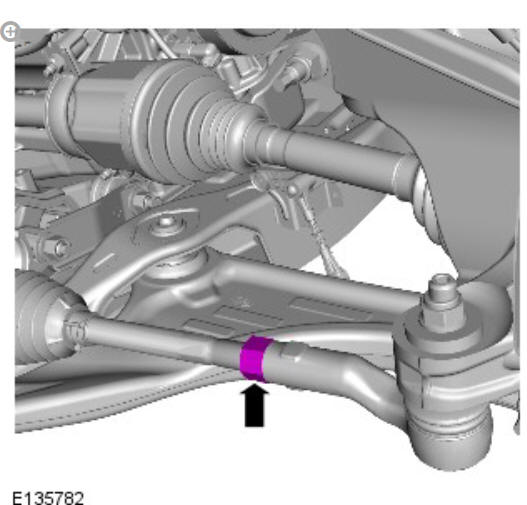

CAUTION:

Note the number of turns when removing the tie rod end to aid installation.

Steering linkage tie rod end (G1360702) removal and installation

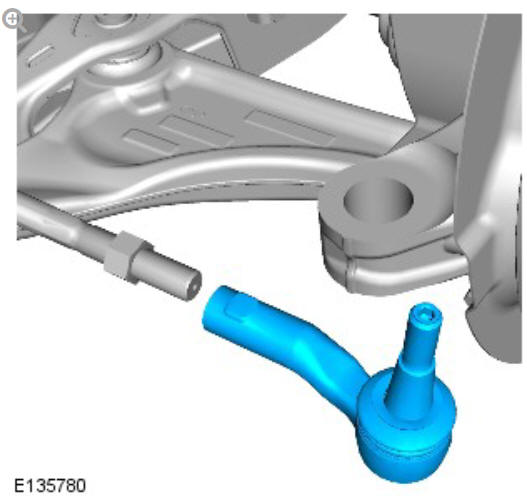

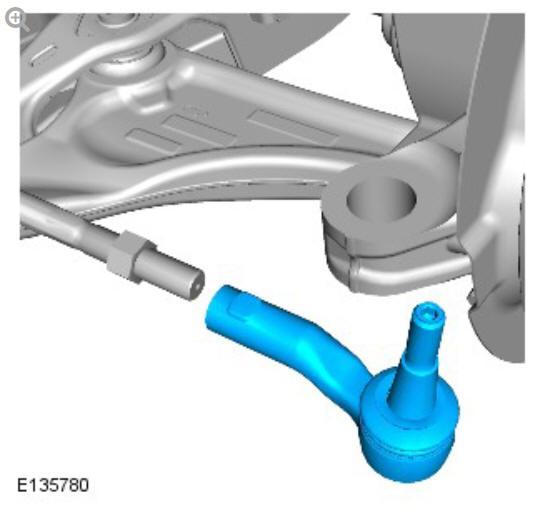

INSTALLATION

CAUTION:

Make sure that the tie rod end is installed with the same number of turns as when removed.

Steering linkage tie rod end (G1360702) removal and installation

WARNING:

Make sure that a new nut is installed.

CAUTION:

Make sure that the ball joint ball does not rotate.

Steering linkage tie rod end (G1360702) removal and installation

Renew Part: Tie-rod end nut.

Torque: 133 Nm

Steering linkage tie rod end (G1360702) removal and installation

Torque: 100 Nm

  1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).
  2. Using only four wheel alignment equipment approved by Land Rover, check and adjust the wheel alignment.

    Refer to: Four Wheel Alignment (204-00 Suspension System - General Information, General Procedures).

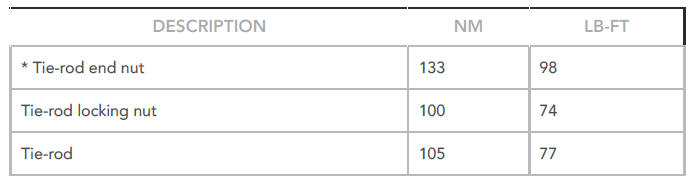

Steering linkage specifications

Torque Specifications

Torque Specifications

* New nut must be installed
