Land Rover Discovery: Steering Column Switches
Steering Column

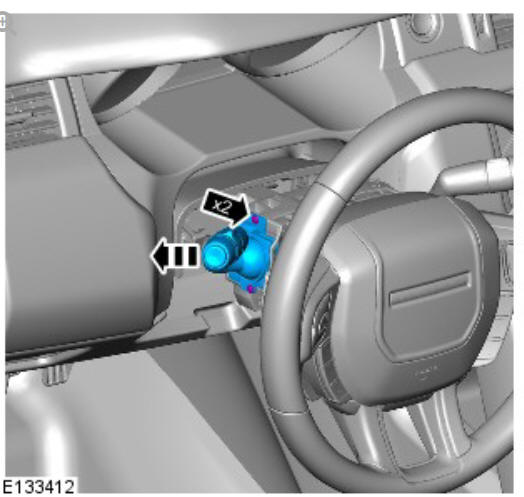

Multifunction Switch (G1351134)
/ Removal and Installation

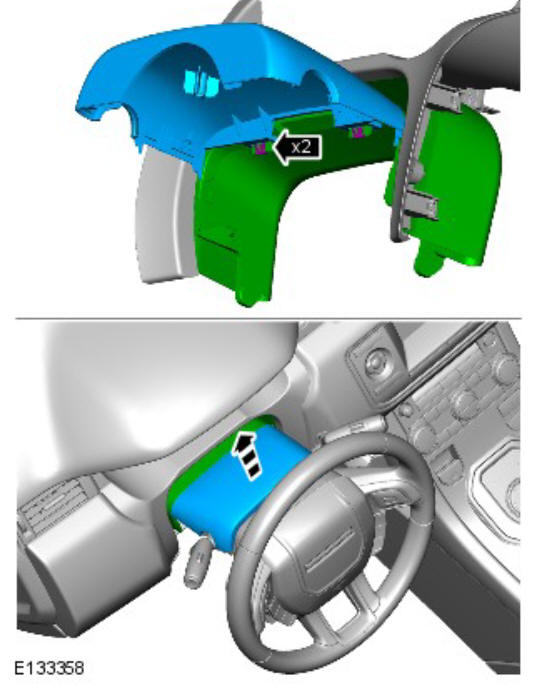

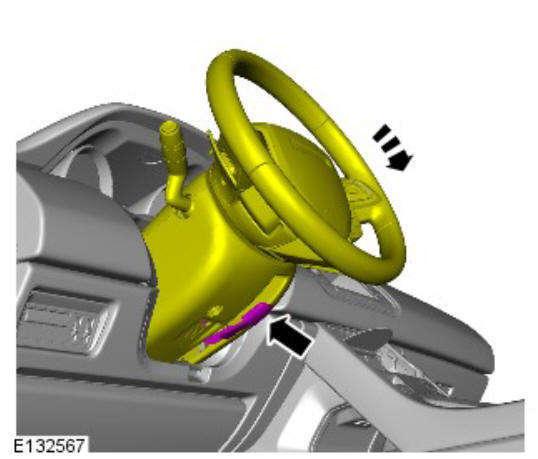

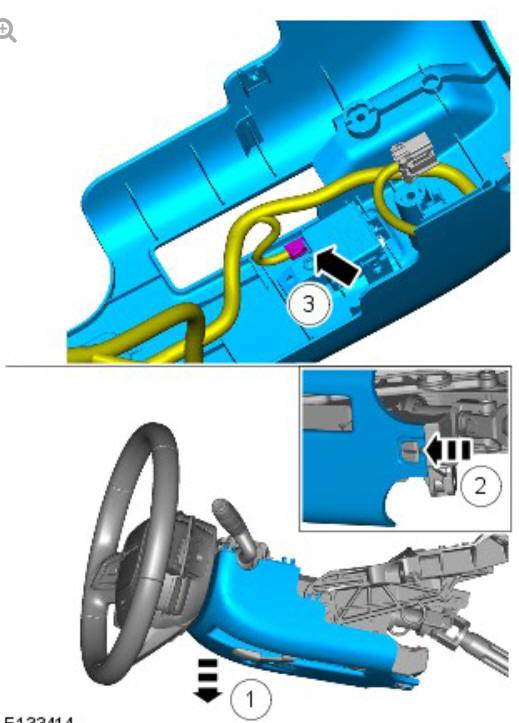

REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- Removal of the windshield wiper switch assembly is identical to this
procedure.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
INSTALLATION
To install, reverse the removal procedure.
Steering column switches specifications
Torque Specifications
NOTE:
The steering column lock module is retained with 2 patch locked,
tamper proof bolts.
.jpg)
Steering linkage steering gear boot (G1360703) removal and installation
REMOVAL
NOTE:
LHD illustration shown, RHD is similar.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Tie Rod End (211-03, Removal and Installation).

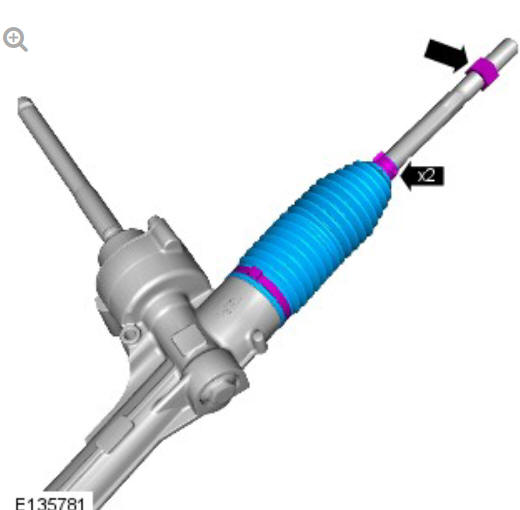

NOTES:
- Note the position of the components prior to removal.
- Discard the retaining clips.
.jpg)
INSTALLATION

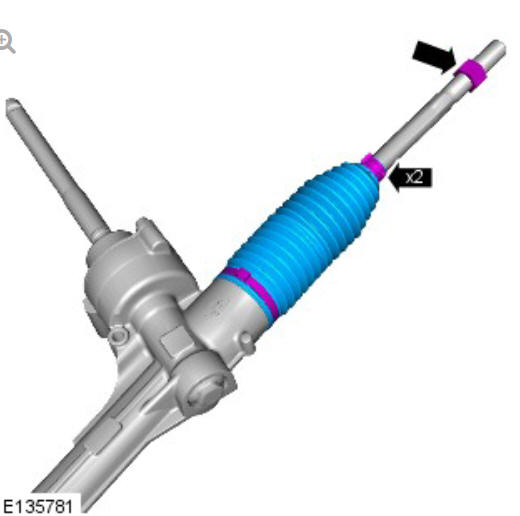

NOTES:
- Make sure that these components are installed to the
noted removal position.
- Install new retaining clips.
.jpg)
Refer to: Tie Rod End (211-03, Removal and Installation).
