Land Rover Discovery: Roof Pod (G1785332) / Removal and Installation
REMOVAL
CAUTION:
Protect the surrounding paintwork to avoid damage.
NOTES:
- Some variation in the illustrations may occur, but the
essential
information is always correct.
- Removal steps in this procedure may contain
installation details.
Refer to: 'A' Pillar Trim Panel (501-05 Interior Trim and
Ornamentation, Removal and Installation).
NOTE:
The procedure must be carried out on both sides.
Refer to: 'B' Pillar Upper Trim Panel (501-05 Interior Trim
and
Ornamentation, Removal and Installation).
NOTE:
The procedure must be carried out on both sides.
Refer to: 'C' Pillar Upper Trim Panel (501-05 Interior Trim
and
Ornamentation, Removal and Installation).
NOTE:
The procedure must be carried out on both sides.
Refer to: 'D' Pillar Trim Panel (501-05 Interior Trim and
Ornamentation, Removal and Installation).
NOTE:
The procedure must be carried out on both sides.

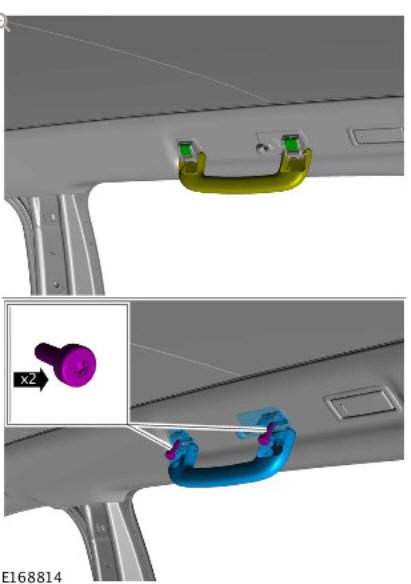

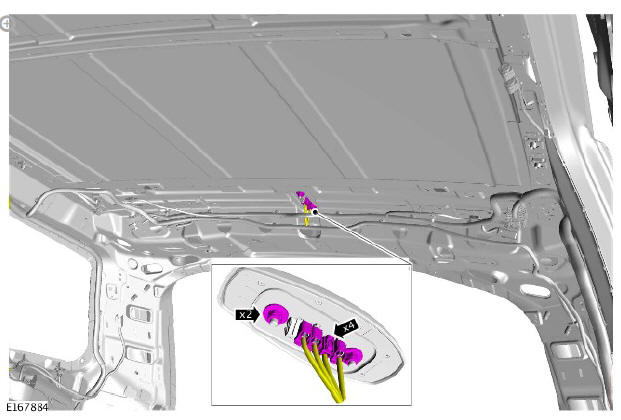

.jpg)
NOTE:
The step must be carried out on both sides.

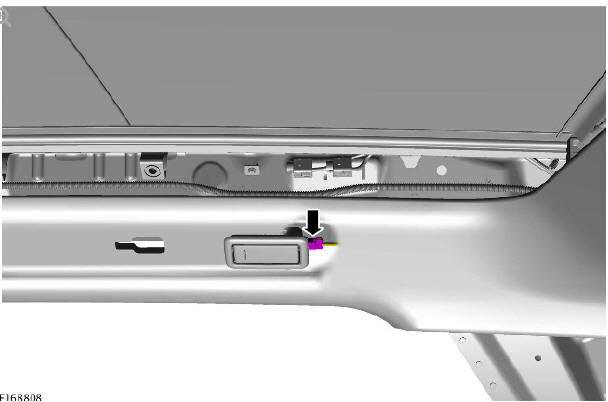

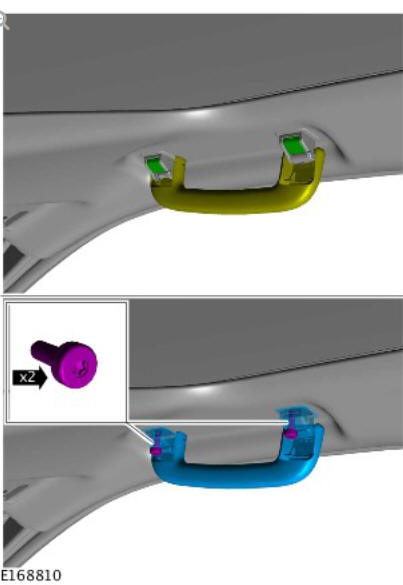

.jpg)
NOTE:
The step must be carried out on both sides

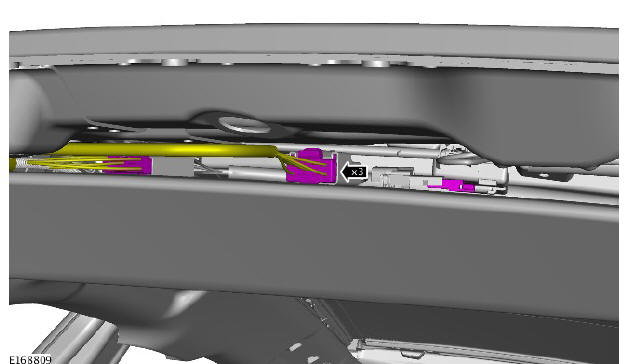

.jpg)
NOTE:
The step must be carried out on both sides.

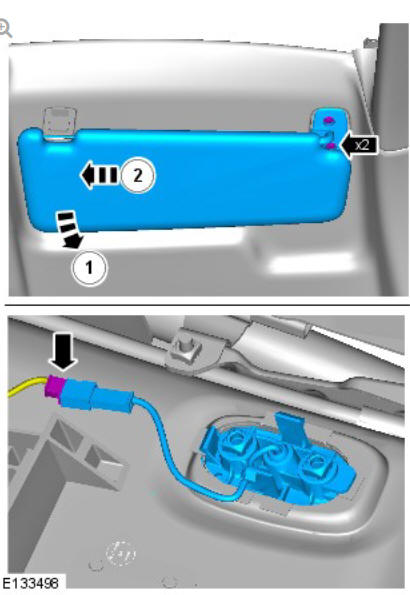

.jpg)
Torque: 6 Nm
NOTE:
The step must be carried out on both sides.
.jpg)
Torque: 6 Nm
CAUTIONS:
- Take extra care not to damage the component.
- Using a suitable plastic trim tool, release the
magnetic
fixings.
NOTES:
- Discard the retaining clips.
- Make sure that there is at least 50mm clearance
between
the magnetic fixings and the headliner during the removal
procedure. The fixings will engage if too close to each
other.

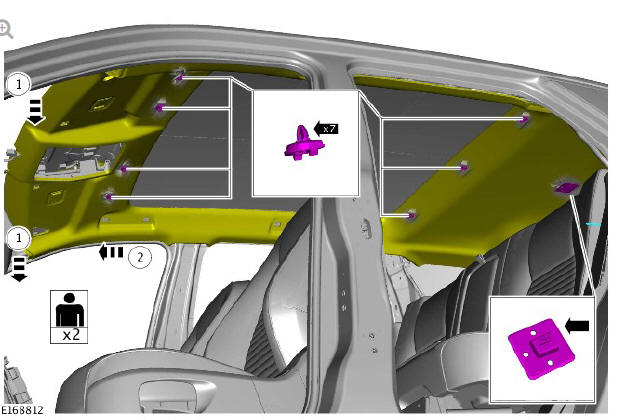

.jpg)
CAUTION:
Take extra care not to damage the component.

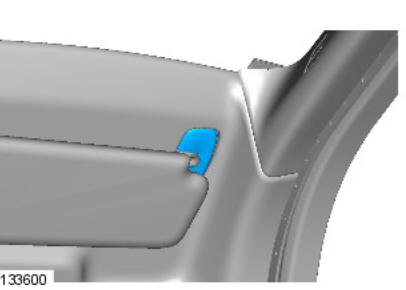

.jpg)
NOTE:
RH illustration shown, LH is similar.

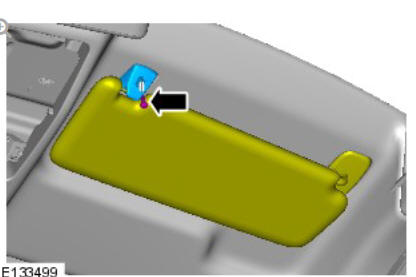

.jpg)
.jpg)
Torque: 9 Nm

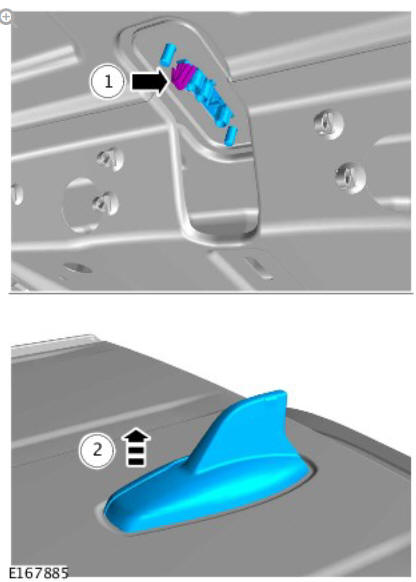

.jpg)
INSTALLATION
- To install, reverse the removal procedure.
