Land Rover Discovery (2009–2016) Service Manual / Electrical / Information and Entertainment System / Telematics

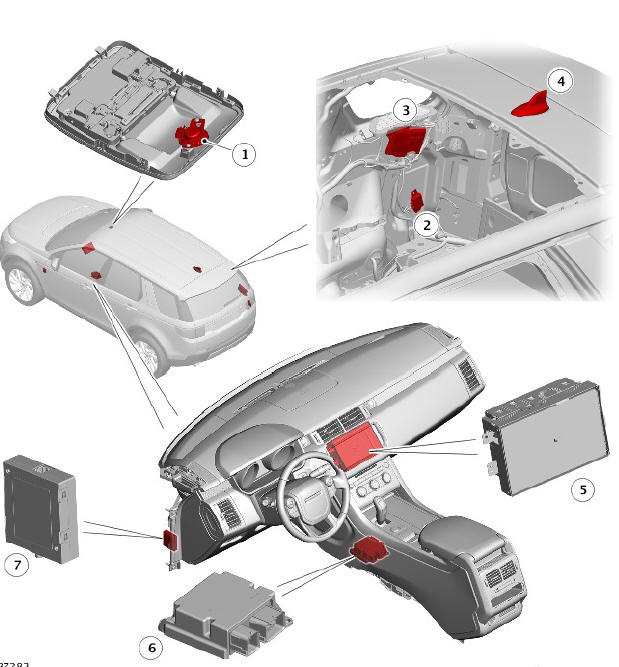

COMPONENT LOCATION

Telematics

  1. Overhead console - Telematics speaker and b-Call and e-Call switches
  2. Global Positioning System (GPS) signal splitter
  3. Telematics Control Module (TCU)
  4. Rood pod - Global System for Mobile communications (GSM) antenna
  5. Touch Screen (TS)
  6. Restraints Control Module (RCM)
  7. Sim Card Reader

OVERVIEW

Telematics is a system of devices and features which communicates with other devices or with human users over several communications networks including vehicle networks and cellular networks Global System for Mobile communications (GSM).

The telematics system is integrated into the vehicle powertrain and body MultiCAN systems and communicates with the vehicle infotainment system.

The system is controlled by a Telematics Control Module (TCU).

Land Rover's telematics system is marketed under the name of 'InControl' Telematics is a combination of built-in mobile connectivity, global satellite location information and vehicle status and control. The system provides:

  • Emergency Call Support
  • Breakdown Call
  • Stolen Vehicle Tracking/Recovery
  • Smart Phone Applications.

The telematics system also features an in-vehicle WiFi hotspot using access to a 3G cellular network. The system enables the customer to access an internet connected WiFi service via the Telematics Control module and a SIM Card Reader which contains the users SIM card.

For NAS customers, the SIM card is provided to the customer, the customer is not able to register with the network of their choice.

The WiFi hotspot provides the following features:

The WiFi hotspot provides the following features:

  • In-vehicle internet connection for WiFi enabled devices
  • A Local Area Network (LAN) for more than one device, for example; for gaming
  • The internet connection is provided by the Telematics Control Module, using a customer provided Subscriber Identification Module (SIM) card located in the SIM Card Reader.

DESCRIPTION
