Land Rover Discovery: Navigation System Module (G1785187) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Information and Entertainment System / Navigation System / Navigation System Module (G1785187) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Remove the right front seat Refer to: Front Row Seat - Vehicles With: Power Seats (501-10 Seating, Removal and Installation).

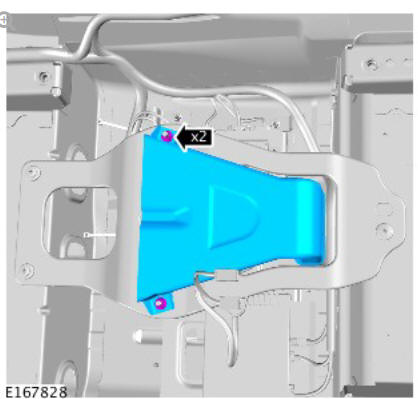

Navigation System Module (G1785187) / Removal and Installation

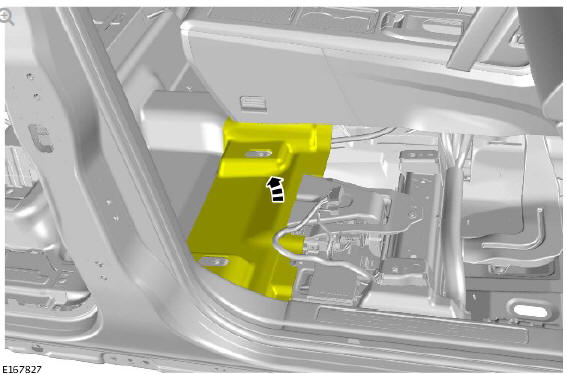

Navigation System Module (G1785187) / Removal and Installation

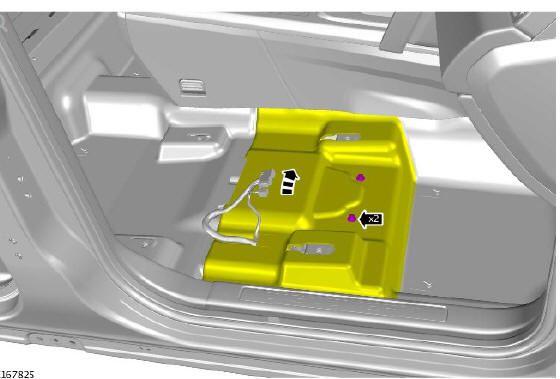

Navigation System Module (G1785187) / Removal and Installation

Torque: 9 Nm

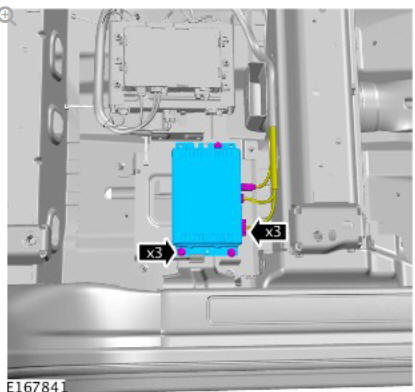

Navigation System Module (G1785187) / Removal and Installation

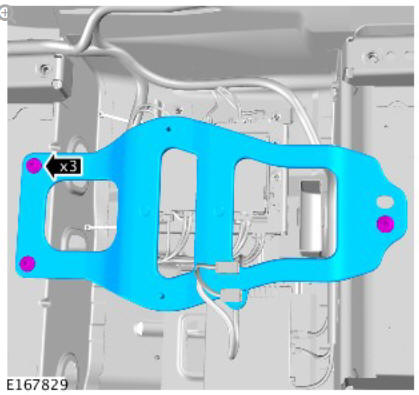

Navigation System Module (G1785187) / Removal and Installation

Torque: 6 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
