Land Rover Discovery: Rear Suspension Rear
Stabilizer Bar (G1779703)
/ Removal and Installation
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
All vehicles
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Remove both the rear wheels and tires.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and
Installation).
Vehicles with occasional rear seats
Remove the spare wheel and tire.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and
Installation).

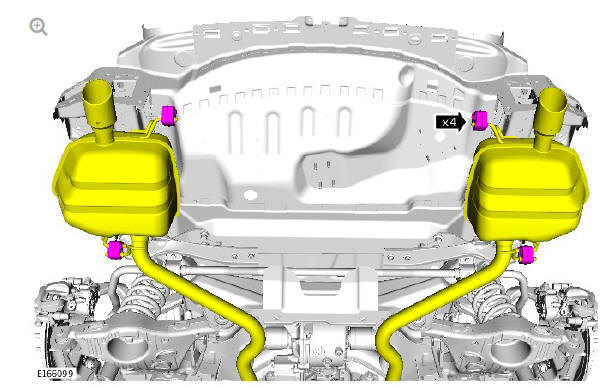

CAUTION:
Make sure that the exhaust system is supported with suitable
retaining straps.
.jpg)

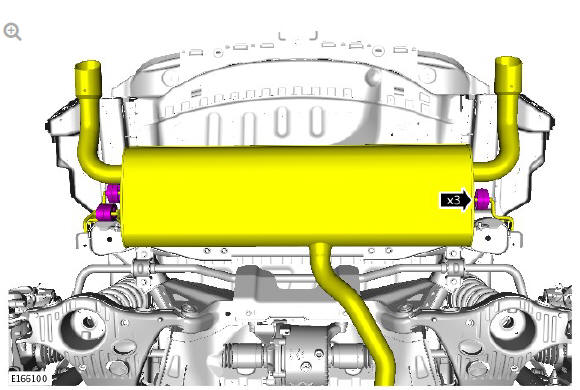

Vehicles without occasional rear seats
CAUTION:
Make sure that the exhaust system is supported with suitable
retaining straps.

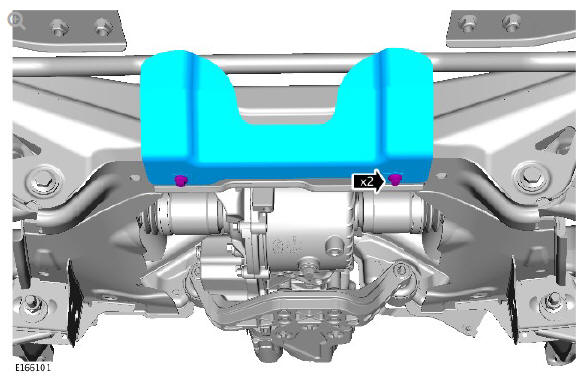

.jpg)
.jpg)

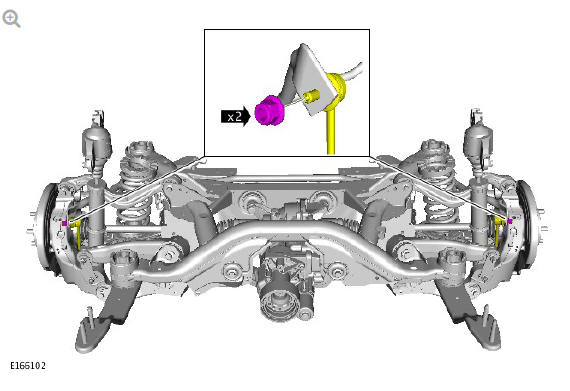

All vehicles
NOTES:
- Use an Allen key to prevent the ball joint rotating whilst
removing the nut.
- New nuts must be installed.
.jpg)

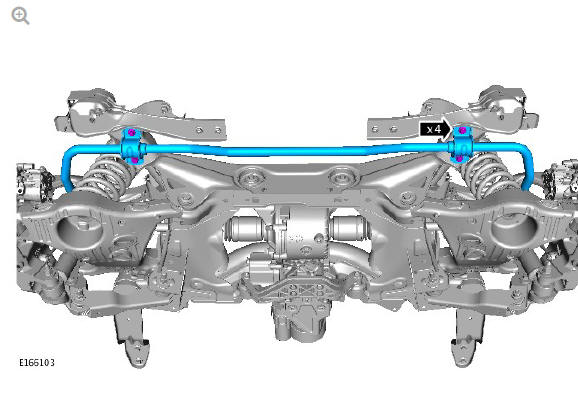

Torque: 60 Nm
.jpg)
Torque: 60 Nm

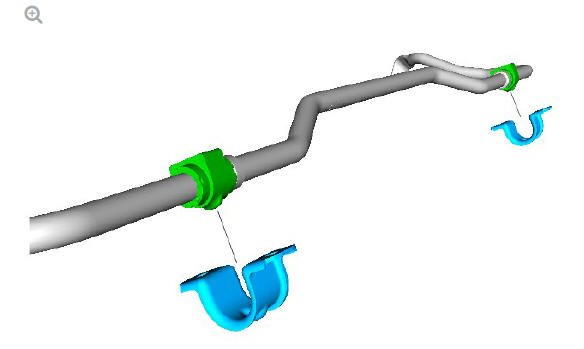

.jpg)
INSTALLATION
To install, reverse the removal procedure.
