Land Rover Discovery: Rear Suspension Rear
Shock Absorber (G1774678)
/ Removal and Installation
GENERAL EQUIPMENT
.jpg)
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- Dampers fitted with electromagnetic damping, when stored in one
position for an extended period, can exhibit a characteristic where
the electromagnetic damping fluid separates out into its
constituent materials. This can give a false impression that the
damper piston rod is seized. This is normal. Therefore, when fitting
replacement electromagnetic damping dampers it is important that
prior to installing the dampers, they are inverted and compressed
against a suitable piece of wood by pushing downwards using body
weight only. Carry out this procedure 15 times. This makes sure that
the fluid is fully mixed and operating as normal. It is important that
the threads on the piston rod are protected at all times.
WARNING:
Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and
Installation).

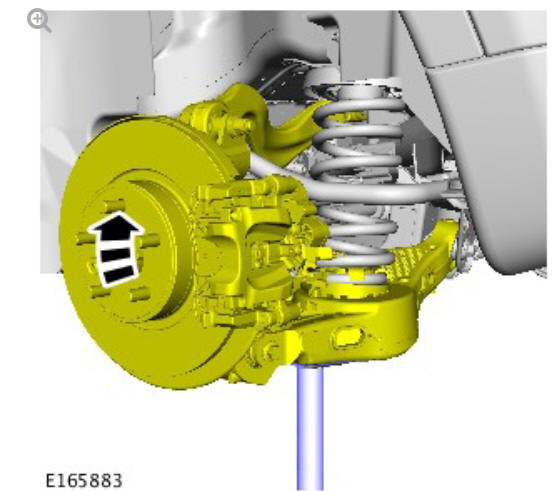

.jpg)
General Equipment: Transmission jack

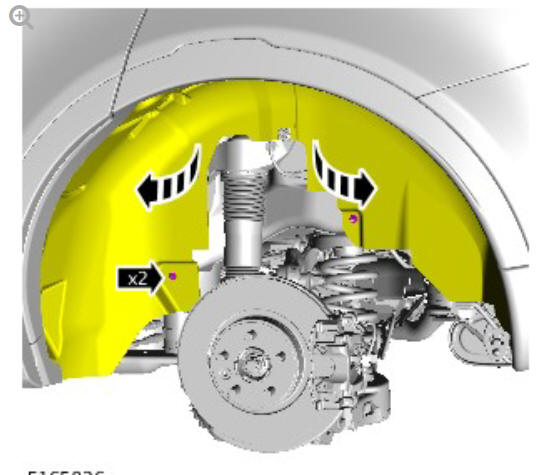

.jpg)
NOTE:
Vehicles with active damping.

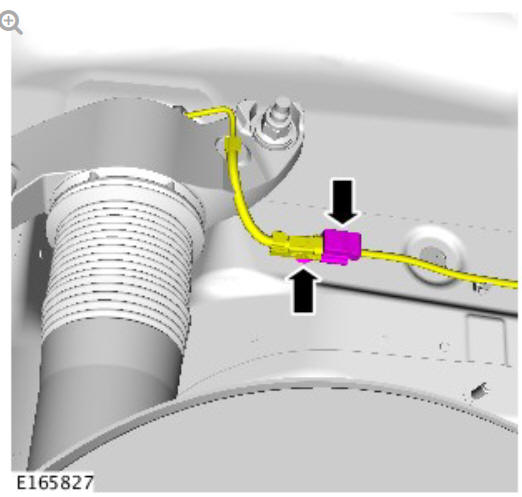

.jpg)
NOTE:
Make sure that new nuts are installed

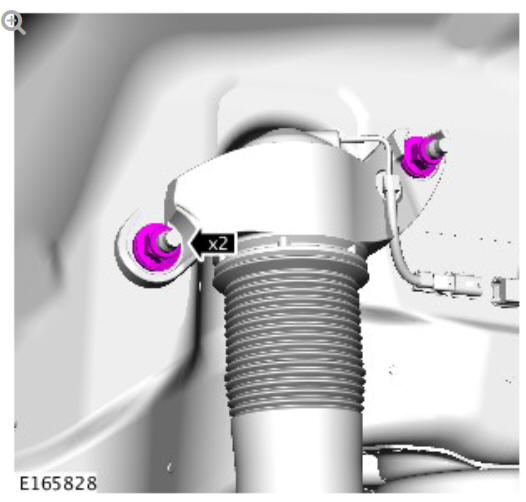

.jpg)
Torque: 110 Nm
NOTES:
- Make sure that a new bolt is installed.
- Not disassemble further if component is removed for
access only.

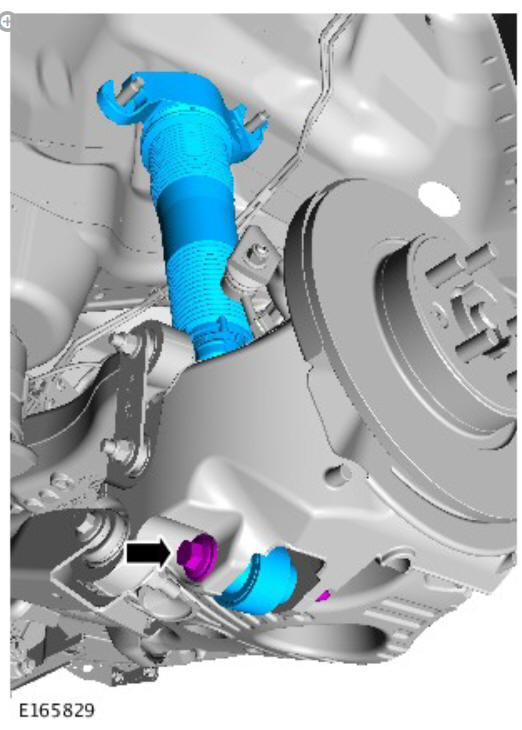

.jpg)
Torque: 170 Nm

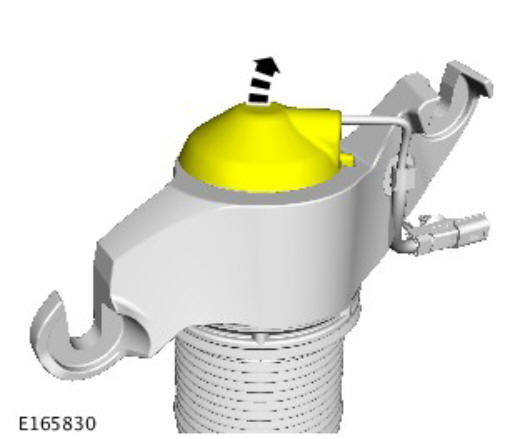

NOTE:
Vehicles with active damping.

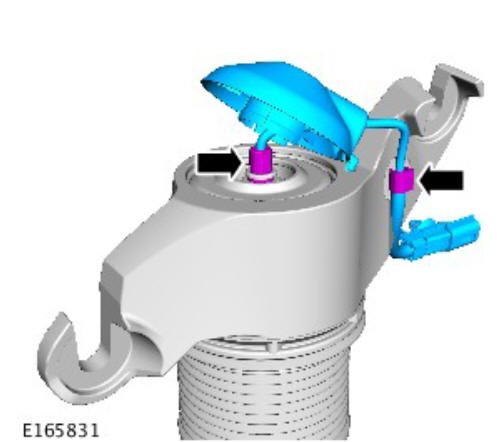

.jpg)
NOTE:
Vehicles with active damping.

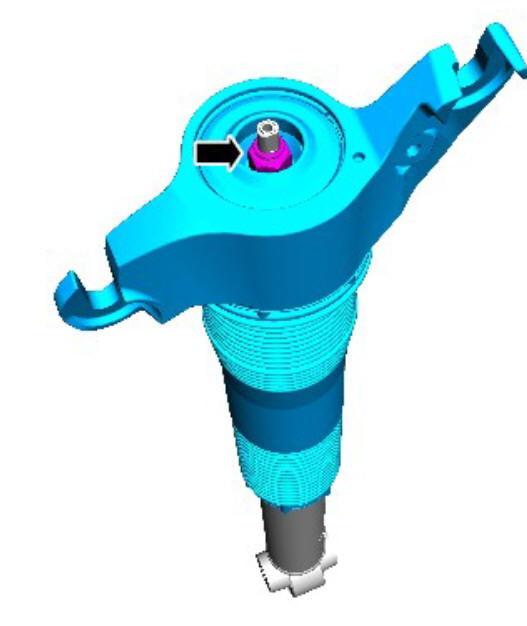

.jpg)
NOTE:
Make sure that a new nut is installed.
.jpg)
Torque: 35 Nm
INSTALLATION
CAUTION:
Nuts and bolts must be tightened with vehicle at normal ride
height.
To install, reverse the removal procedure.
Refer to: Specifications (204-00 Suspension System - General Information,
Specifications).
