Land Rover Discovery: Parking Aid Front Parking Aid Camera (G1780351) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Electrical / Instrument and Warning Systems / Parking Aid / Parking Aid Front Parking Aid Camera (G1780351) / Removal and Installation

REMOVA L

NOTES:

  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

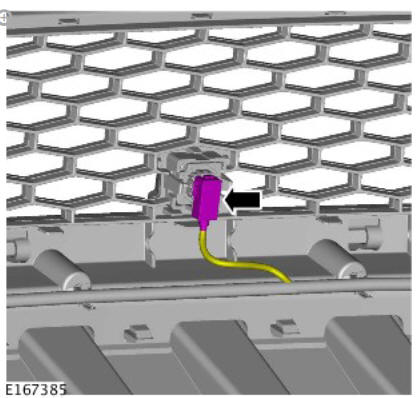

CAUTION:

Take extra care not to damage the wiring harnesses.

Parking Aid Front Parking Aid Camera (G1780351) / Removal and Installation

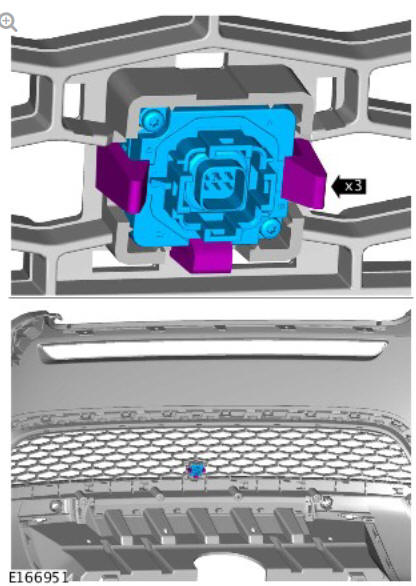

CAUTION:

Make sure that the component is correctly located on the locating dowels.

NOTE:

Note the orientation of the component prior to removal.

Parking Aid Front Parking Aid Camera (G1780351) / Removal and Installation

INSTALLATION

To install, reverse the removal procedure.

  • Following the replacement of a camera on these vehicles the calibration process is:
  • Drive the vehicle for 5 to 10 minutes as much as possible in a straight line, up to 30kph / 19mph, during this time the camera will self-calibrate (do not have the camera functions turned on) to be carried out in normal daylight conditions.
  • After completing the drive cycle camera operation can be checked by:
  • Surround View Camera: To check calibration parked next to a kerb/line select camera view make sure a straight line is visible on screen in the 360 plan view
  • Standalone Rear Camera To check calibration reverse straight into a marked parking slot and see trajectory overlays are parallel to the markings on the ground

Parking Aid Parking Aid Camera (G1780352) / Removal and Installation

REMOVAL

NOTES:

  • Removal steps in this procedure may contain installation details.
  • The ignition must be switched off.

Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

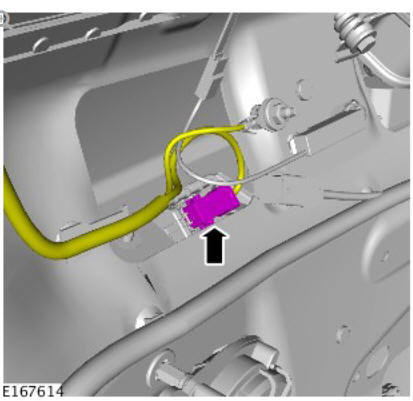

Parking Aid Parking Aid Camera (G1780352) / Removal and Installation

Parking Aid Parking Aid Camera (G1780352) / Removal and Installation

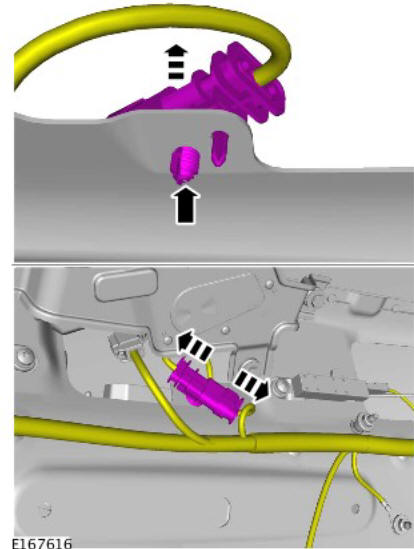

CAUTION:

Take extra care not to damage the component.

Parking Aid Parking Aid Camera (G1780352) / Removal and Installation

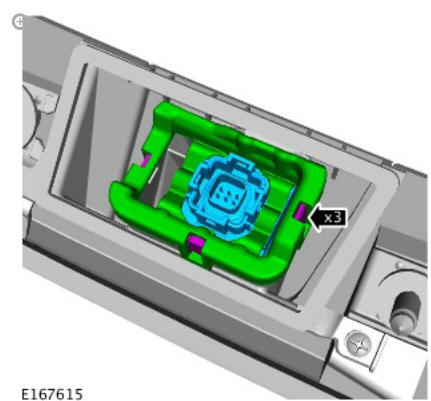

CAUTION:

Take extra care not to damage the clips.

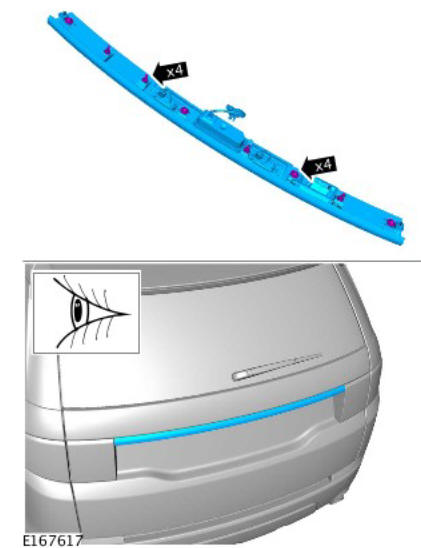

NOTE:

Make sure that this component is installed to the noted removal position.

Parking Aid Parking Aid Camera (G1780352) / Removal and Installation

INSTALLATION

  1. To install, reverse the removal procedure.
  2. Vehicles fitted with InControl Touch rear camera only do not require calibration when fitting a new camera.
  • Following the replacement of a camera on these vehicles the calibration process is:
  • Drive the vehicle for 5 to 10 minutes as much as possible in a straight line, up to 30kph / 19mph, during this time the camera will self-calibrate (do not have the camera functions turned on) to be carried out in normal daylight conditions.
  • After completing the drive cycle camera operation can be checked by:
  • Surround View Camera: To check calibration parked next to a kerb/line select camera view make sure a straight line is visible on screen in the 360 plan view
  • Standalone Rear Camera To check calibration reverse straight into a marked parking slot and see trajectory overlays are parallel to the markings on the ground
