Land Rover Discovery: Parking Aid Parking Aid Module (G1780354) / Removal and Installation
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
Vehicles without occasional rear seats
NOTE:
Right side only.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation,
Removal and Installation).
Vehicles with occasional rear seats
Refer to: Auxiliary Blower Motor (412-02, Removal and Installation).

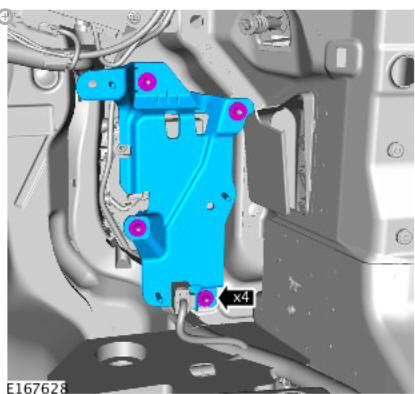

Torque: 20 Nm
All vehicles

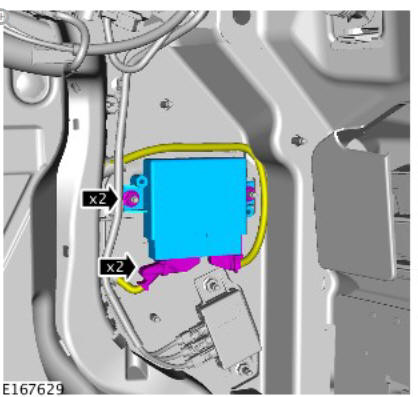

Torque: 5 Nm
INSTALLATION
To install, reverse the removal procedure.
If a new component has been installed, configure using Land Rover
approved diagnostic equipment.
Parking aid rear inner parking aid sensor (G1780355) removal and
installation
REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- The ignition must be switched off.
- RH illustration shown, LH is similar.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and
Installation).

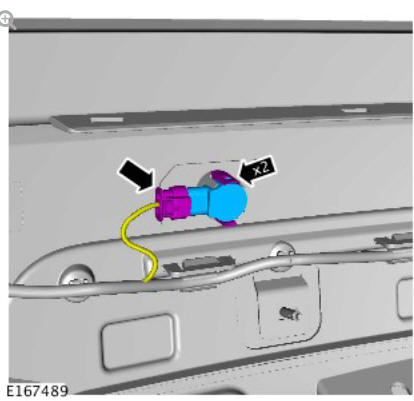

NOTE:
RH illustration shown, LH is similar.
INSTALLATION
CAUTION:

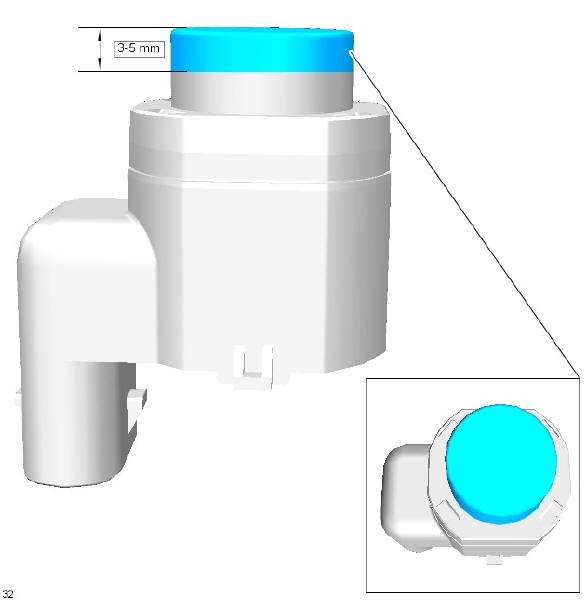

If a new sensor is installed, make sure that the area illustrated
is the only area painted. Failure to follow this instruction may
result in the component malfunctioning.
NOTE:
On vehicles that are equipped with black or unpainted
bumpers, the sensor(s) do not require painting.
To install, reverse the removal procedure.
