Land Rover Discovery: Parking Aid Front Inner Parking Aid Sensor (G1780349) / Removal and
Installation
REMOVAL
NOTES:
- LH illustration shown, RH is similar.
- Removal steps in this procedure may contain installation details.
- The ignition must be switched off.
WARNING:
Make sure to support the vehicle with axle stands.

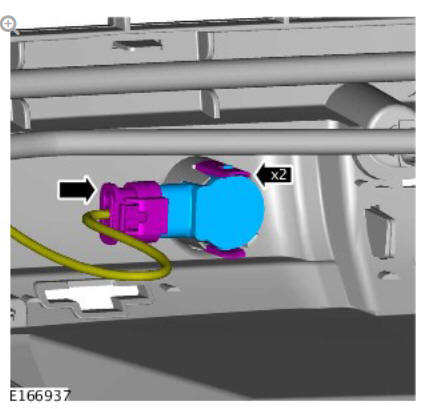

Raise and support the vehicle.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and
Installation).
![Parking Aid Front Inner Parking Aid Sensor (G1780349) / Removal and Installation](images/books/227/index419(1).jpg)
INSTALLATION
CAUTION:

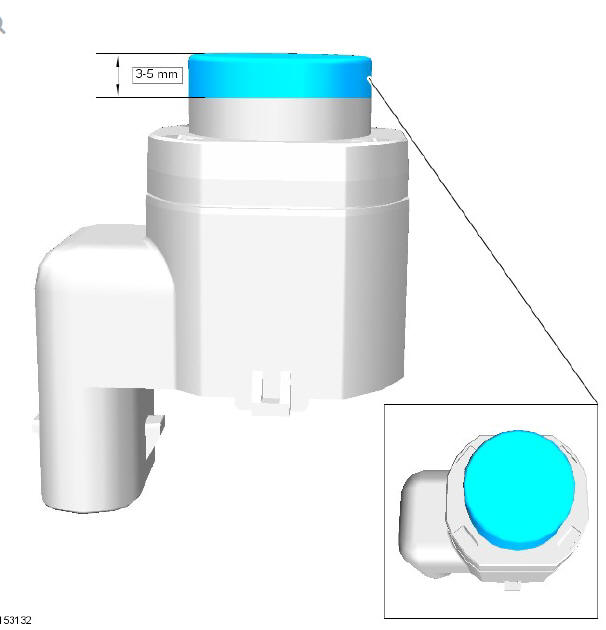

If a new sensor is installed, make sure that the area illustrated
is the only area painted. Failure to follow this instruction may
result in the component malfunctioning.
NOTE:
On vehicles that are equipped with black or unpainted
bumpers, the sensor(s) do not require painting.
![Parking Aid Front Inner Parking Aid Sensor (G1780349) / Removal and Installation](images/books/227/index420(1).jpg)
To install, reverse the removal procedure.
Parking aid front outer parking aid sensor (G1780350) removal and
installation
REMOVAL
CAUTION:
LH illustration shown, RH is similar.
NOTES:
- Removal steps in this procedure may contain installation details.
- The ignition must be switched off.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Wheel and Tire (204-04, Removal and Installation).

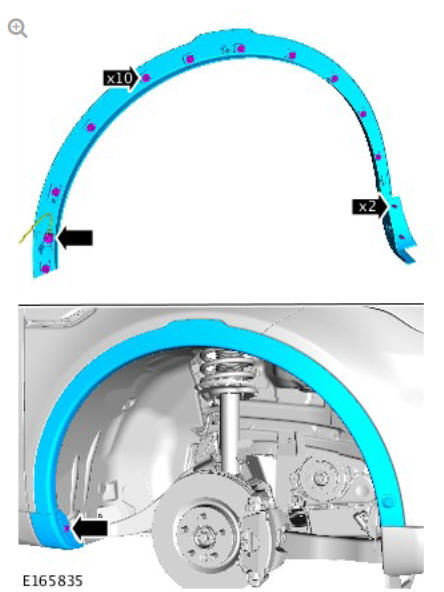

CAUTION:
Take extra care not to damage the component
![Parking aid front outer parking aid sensor (G1780350) removal and installation](images/books/227/index421(1).jpg)

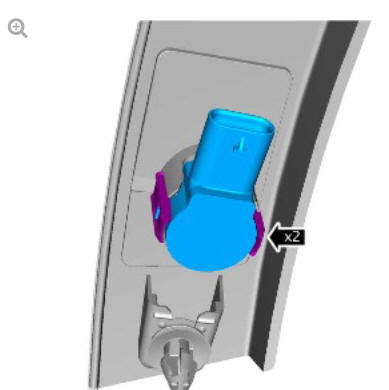

NOTE:
On vehicles that are equipped with black or unpainted
bumpers, the sensor(s) do not require painting.
![Parking aid front outer parking aid sensor (G1780350) removal and installation](images/books/227/index422(1).jpg)
INSTALLATION
To install, reverse the removal procedure.
