Land Rover Discovery: Front Suspension Wheel
Knuckle (G1778608) - Removal

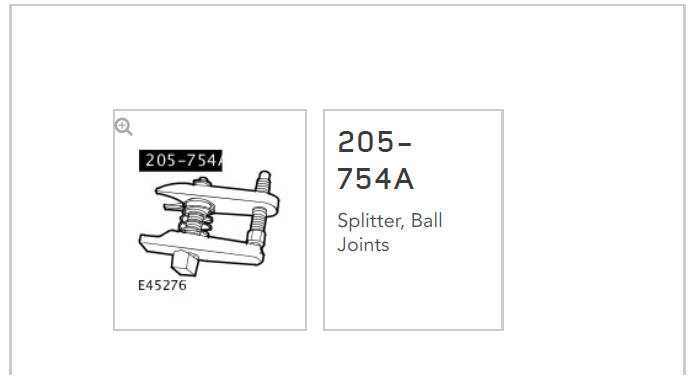

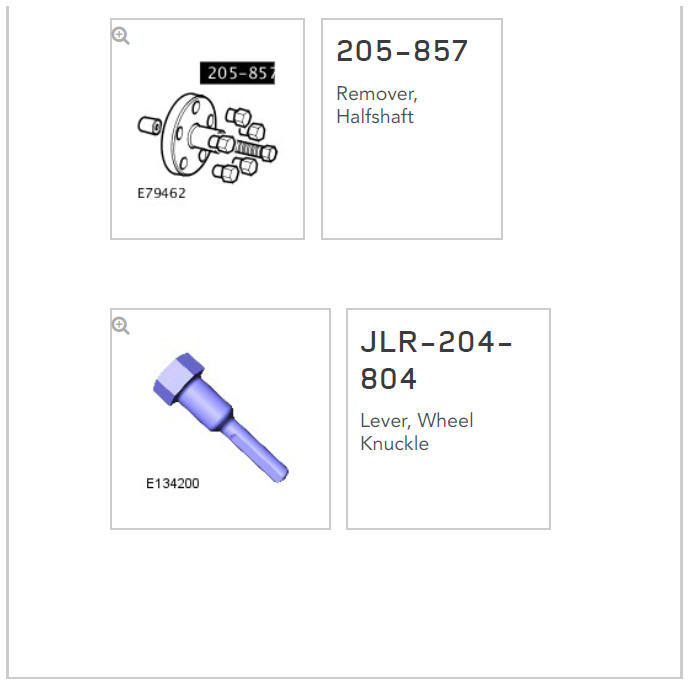

SPECIAL TOOL(S)
.jpg)
.jpg)

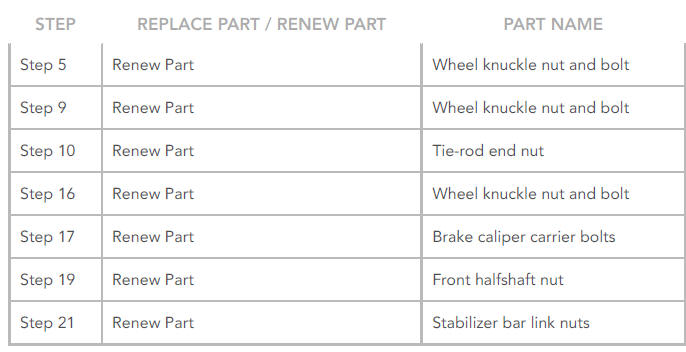

PART(S)
.jpg)
Removal
CAUTIONS:
- Nuts and bolts must be tightened with the weight of the vehicle on
the suspension.
- Do not allow halfshafts to hang unsupported at one end or joint
damage will occur.
- Make sure the halfshaft constant velocity (CV) joints do not over
articulate. Failure to follow this instruction may result in damage to
the CV joints.
NOTE:
If a new knuckle is installed, a new wheel bearing must be installed.
All vehicles
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and
Installation).

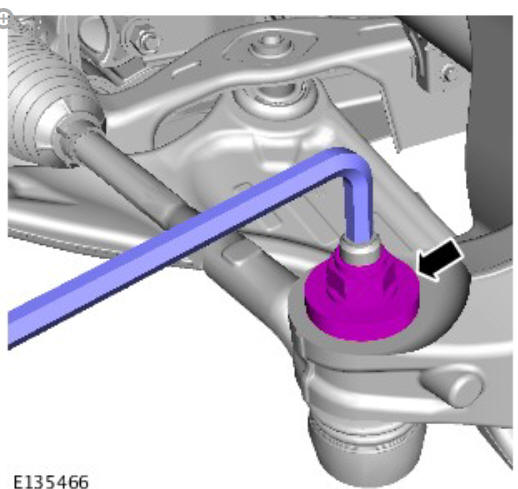

CAUTIONS:
- Discard the nut.
- Make sure that the ball joint ball does not rotate.
.jpg)
.jpg)

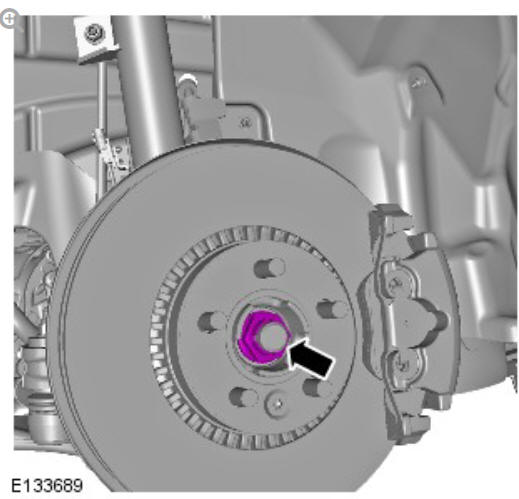

NOTES:
- Apply the brake pedal during the removal and installation
of the half shaft retaining nut.
- Retain the nut for use in the installation procedure.

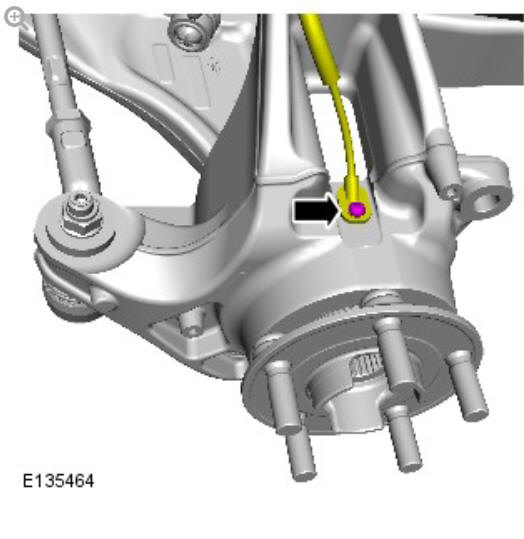

.jpg)

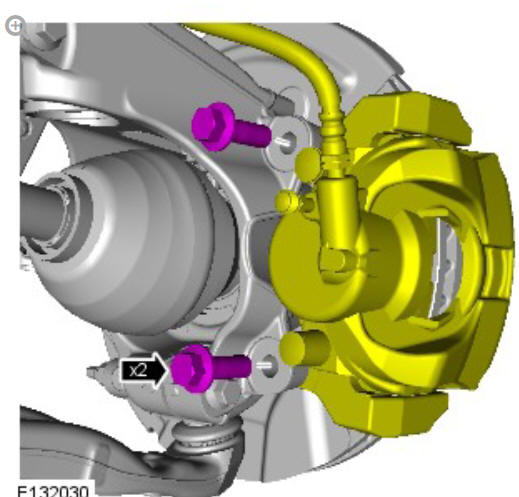

CAUTIONS:
- Make sure that the brake hose does not support the full
weight of the brake caliper assembly.
- Discard the bolts.
.jpg)
Tie aside with a suitable tie strap.

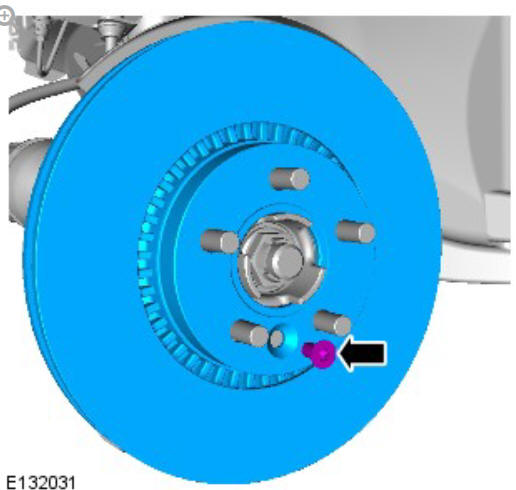

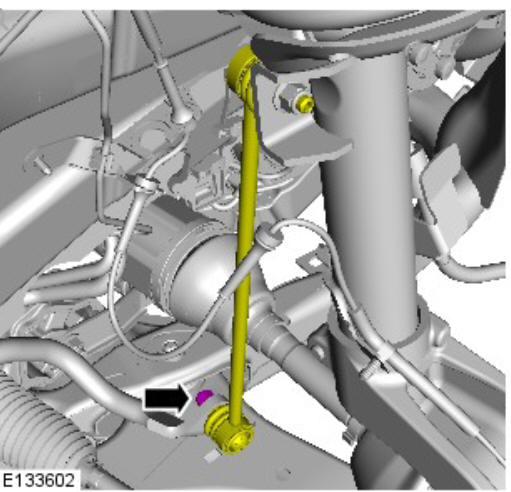

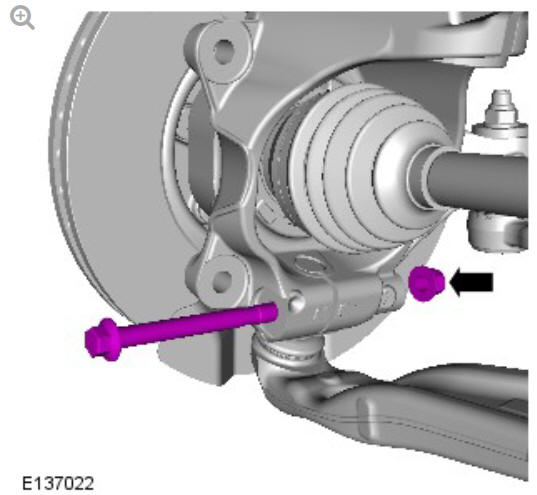

CAUTION:
Discard the bolt and nut.
.jpg)

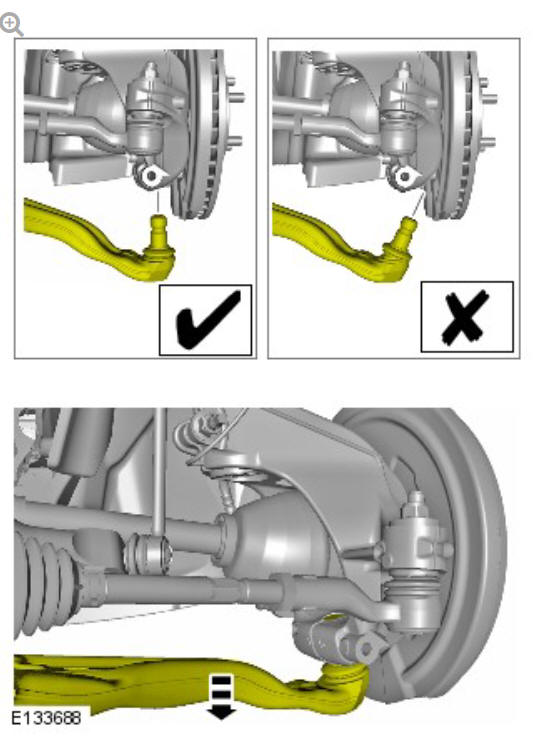

CAUTION:
Make sure that the ball joint seal is not damaged.
.jpg)
CAUTIONS:
- Make sure that the driveshaft is supported with suitable
retaining straps.
- Do not use a hammer to detach the halfshaft from the hub
assembly, failure to follow this instruction may result in
damage to the halfshaft.
.jpg)

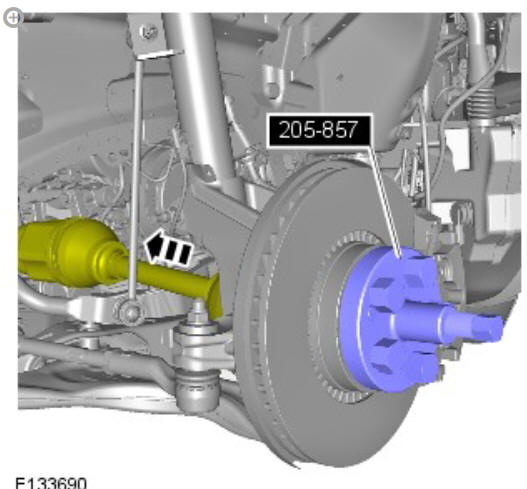

Special Tool(s): 205-857
.jpg)
.jpg)
.jpg)
CAUTIONS:
- Make sure that the ball joint ball does not rotate.
- Discard the nut.
.jpg)
CAUTION:
Make sure that the ball joint seal is not damaged.
.jpg)

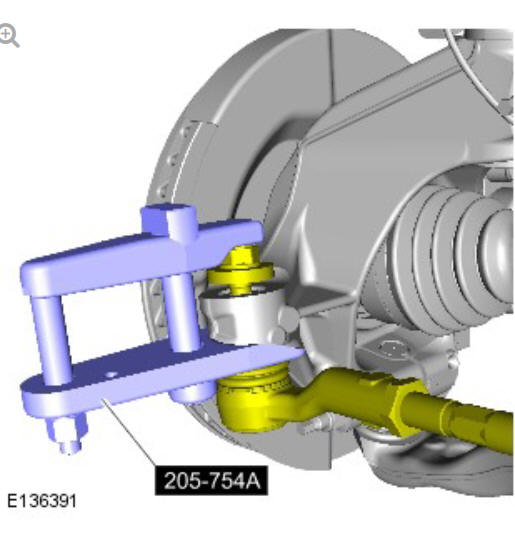

Special Tool(s): 205-754A

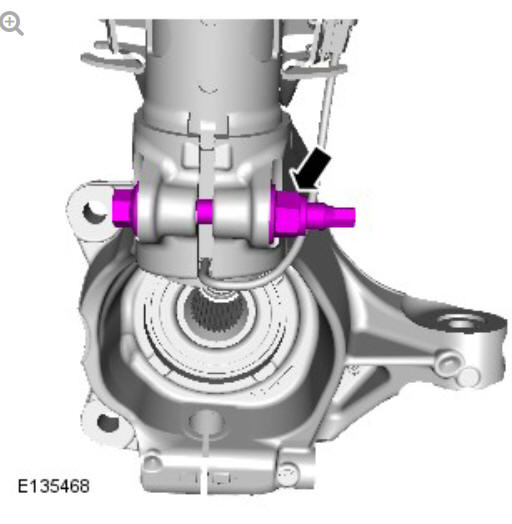

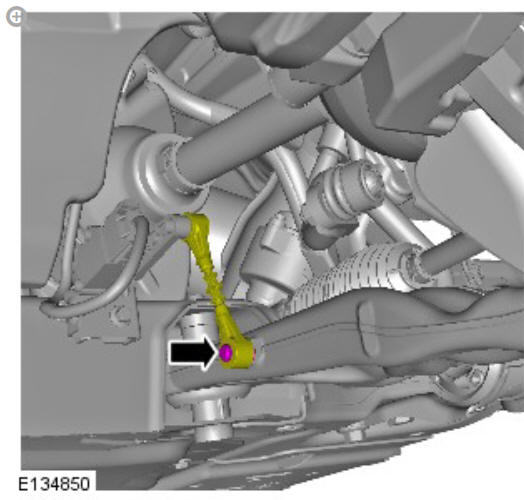

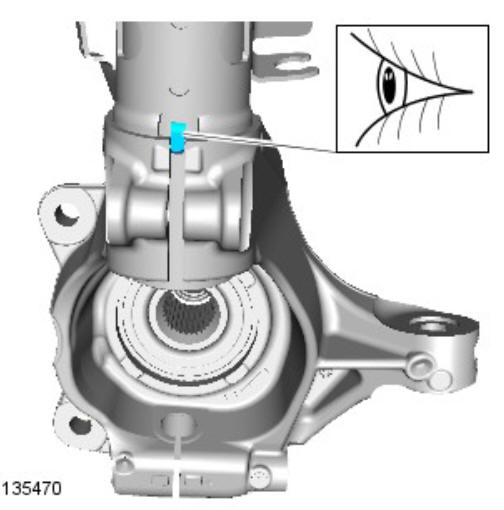

Vehicles without dynamic suspension
CAUTION:
Discard the bolt and nut.
.jpg)
.jpg)
.jpg)

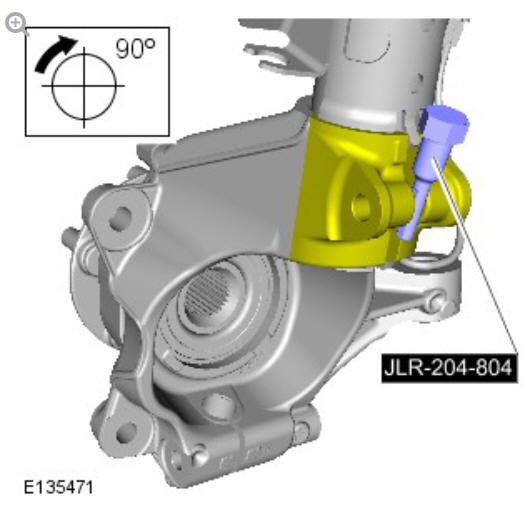

Special Tool(s): JLR-204-804

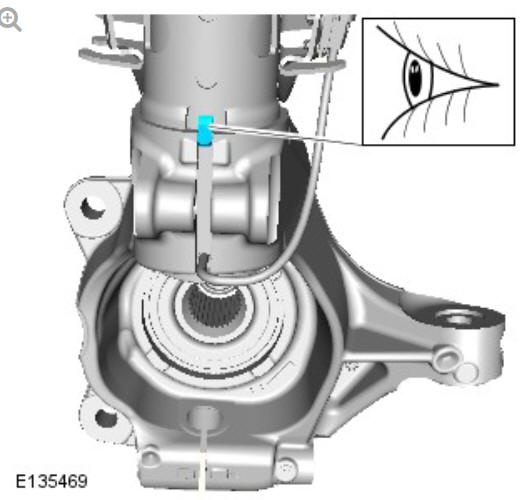

Vehicles with dynamic suspension

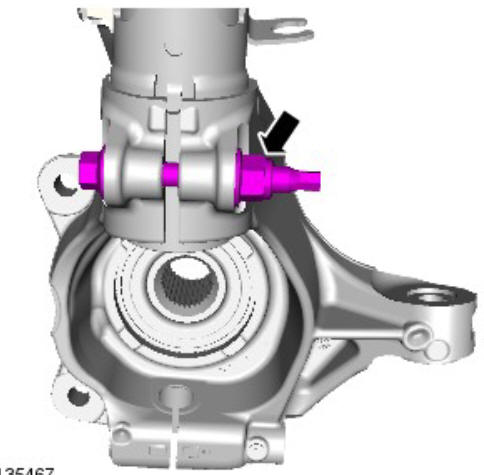

CAUTION:
Discard the bolt and nut.
.jpg)
.jpg)

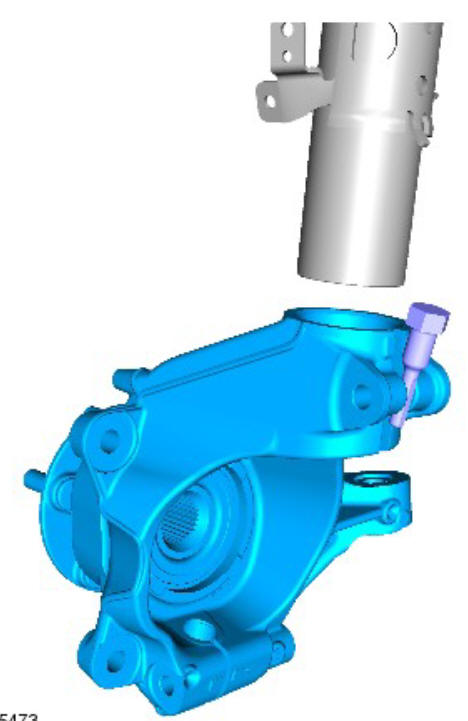

CAUTION:
Care must be taken not to damage the surrounding
components when inserting the special tool.
.jpg)

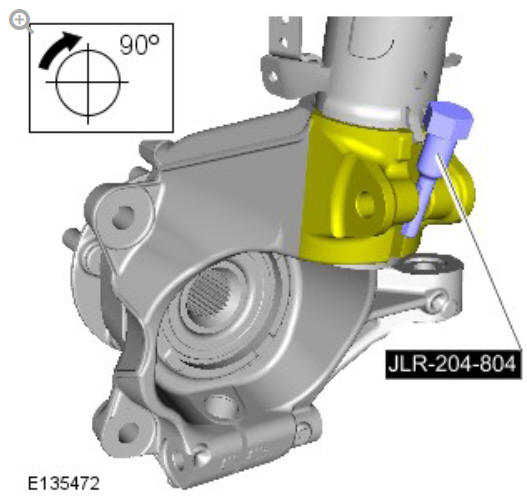

Special Tool(s): JLR-204-804

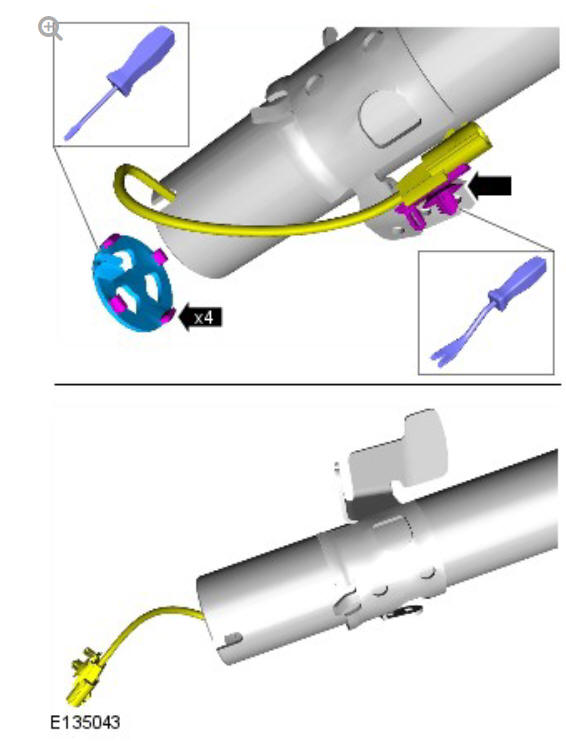

CAUTION:
Make sure the wiring harness and electrical connectors are
not damaged during this operation.
.jpg)
All vehicles
.jpg)

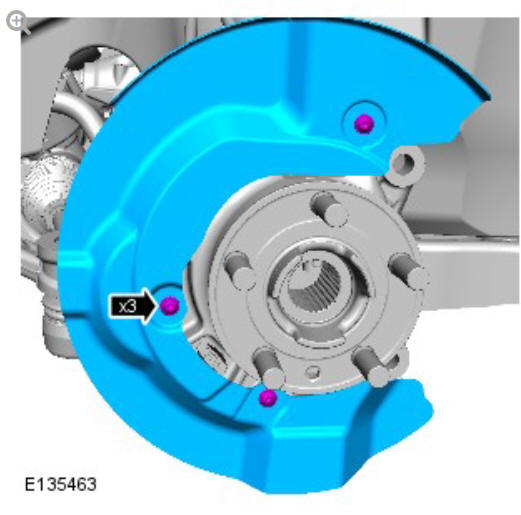

NOTE:
Do not disassemble further if the component is removed for
access only.
.jpg)
READ NEXT:
Installation
All vehicles
NOTE:
This step is only required if previously removed.

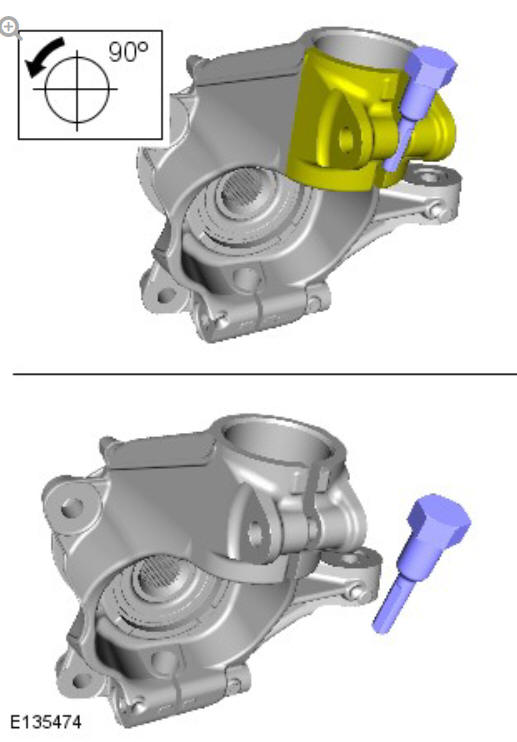

Vehicles with dynamic suspension
Remove the special tool.
CAUTION:
Install a new retaining bolt and nut.
