Land Rover Discovery: Engine Mount (G1913572) / Removal and Installation
PART(S)
.jpg)
REMOVAL
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Cooling System Draining, Filling and Bleeding (303-03B Engine Cooling - INGENIUM I4 2.0L Diesel, General Procedures).
Refer to: Accessory Drive Belt (303-05B Accessory Drive - INGENIUM I4 2.0L Diesel, Removal and Installation).
Refer to: Right Engine Mount (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

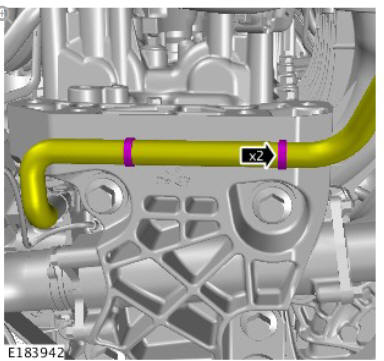

.jpg)

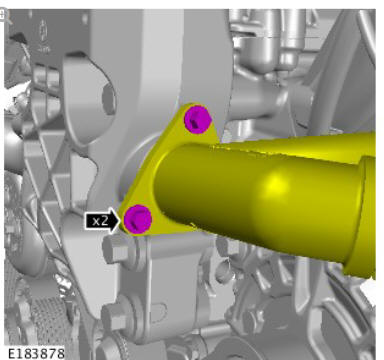

CAUTION:
Be prepared to collect escaping coolant.
.jpg)

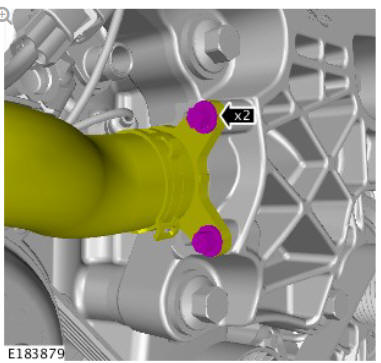

CAUTION:
Be prepared to collect escaping coolant.
.jpg)

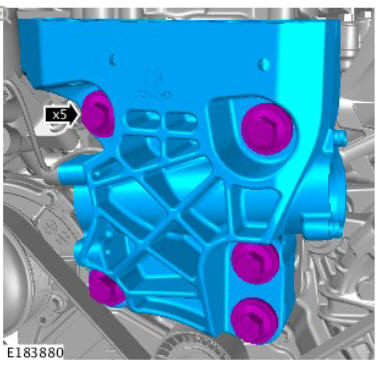

CAUTION:
Remove and discard bolts.
.jpg)
INSTALLATION

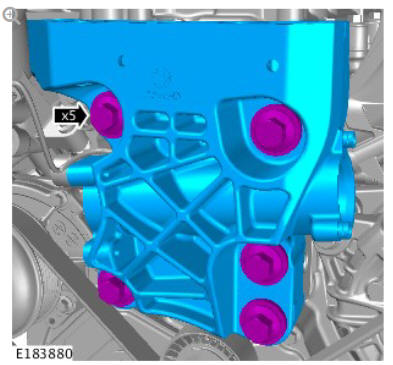

CAUTION:
Make sure new bolts are installed.
.jpg)
Renew Part: Engine mounting bracket to engine bolts.
Torque:
Stage 1: 55 Nm
Stage 2: 120º
.jpg)

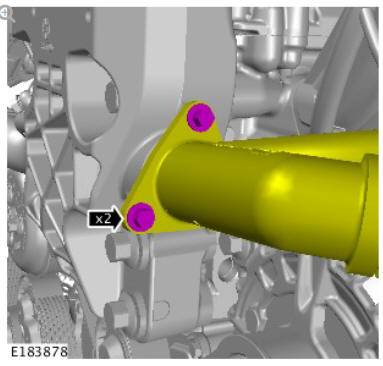

Torque: 12 Nm
.jpg)

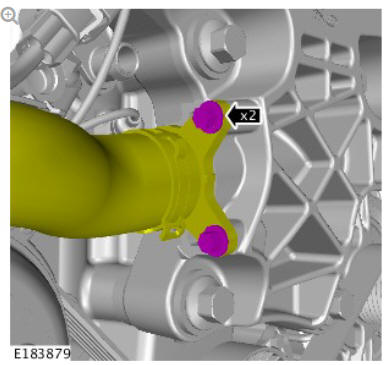

Torque: 12 Nm

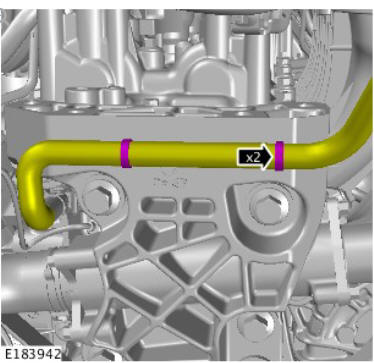

.jpg)
Refer to: Right Engine Mount (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).
Refer to: Accessory Drive Belt (303-05B Accessory Drive - INGENIUM I4 2.0L Diesel, Removal and Installation).
Refer to: Cooling System Draining, Filling and Bleeding (303-03B Engine Cooling - INGENIUM I4 2.0L Diesel, General Procedures).
