Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Oil Pump (G1875879) / Removal and Installation
REMOVAL
NOTE:
Some illustrations may show the engine removed for clarity.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Oil Pump Chain (303-01B, Removal and Installation).

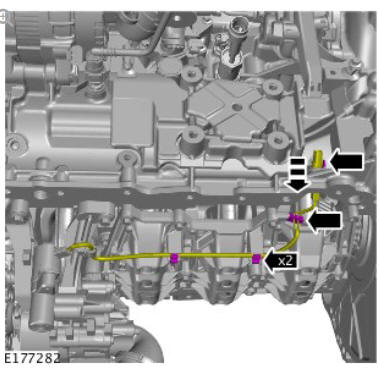

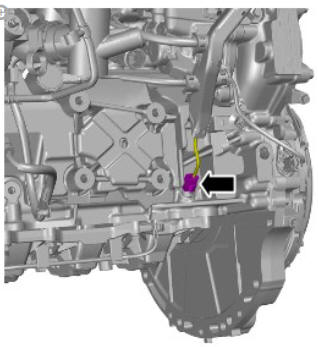

.jpg)
.jpg)
CAUTION:
Discard the seal.

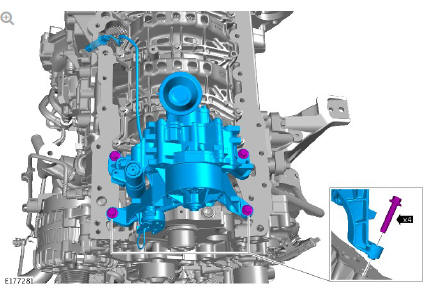

.jpg)
Torque: 25 Nm
CAUTION:
Discard the seal.
NOTE:
Do not disassemble further if the component is removed for access only.

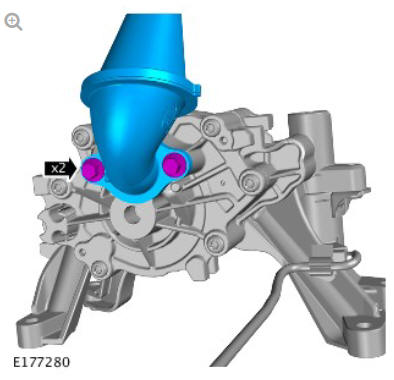

.jpg)
Torque: 12 Nm
INSTALLATION
- To install, reverse the removal procedure
Engine - Ingenium i4 2.0l Diesel Oil Pump Chain (G1875891) / Removal and Installation

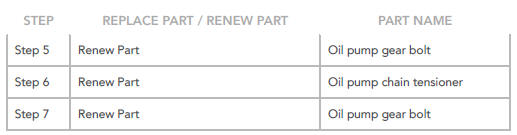

PART(S)
.jpg)
REMOVAL
NOTES:
- Some illustrations may show the engine removed for clarity.
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
All vehicles
Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Remove the oil pan.
Refer to: Oil Pan (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).
Engines fitted with tensioner
.jpg)

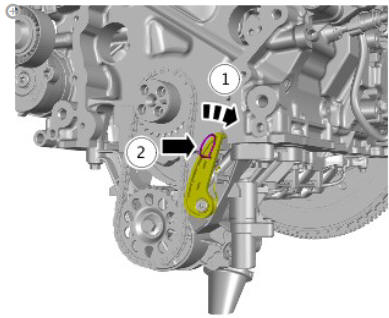

Using a suitable tool, hold the tensioner arm in the position illustrated.
CAUTION:
Using a suitable tool, hold the oil pump gear when removing the centre bolt.
NOTE:
Make sure a new centre bolt is installed.

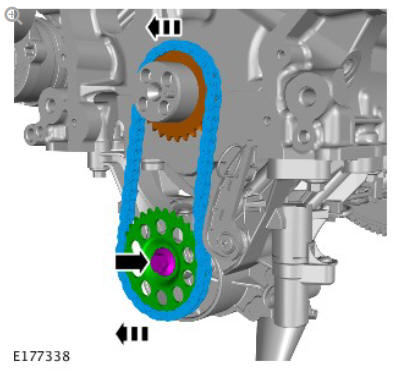

.jpg)
Remove and discard the centre bolt.
Renew Part: Oil pump gear bolt.
Torque:
Stage 1 60 Nm
Stage 2 90º

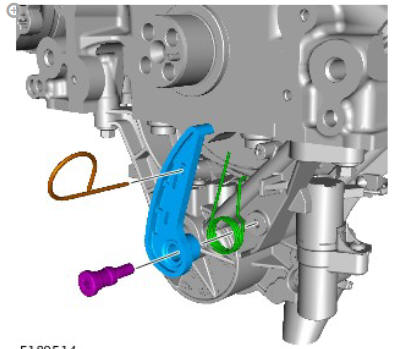

.jpg)
Remove and discard the chain tensioner assembly.
Renew Part: Oil pump chain tensioner.
Engines fitted without tensioner
CAUTION:
Using a suitable tool, hold the oil pump gear when removing the centre bolt.
NOTE:
Make sure a new centre bolt is installed.

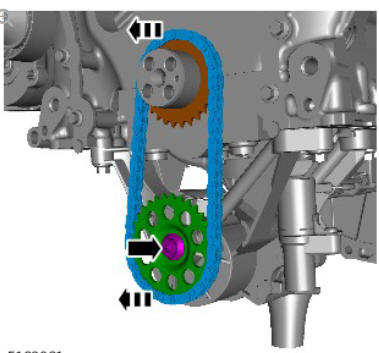

.jpg)
Remove and discard the centre bolt.
Renew Part: Oil pump gear bolt.
Torque:
Stage 1 60 Nm
Stage 2 90º
INSTALLATION
NOTE:
Do not install the chain tensioner assembly.
To install, reverse the removal procedure.
Engine - Ingenium i4 2.0l Diesel Right Engine Mount (G1875883) / Removal and Installation
REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential information is always correct.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Engine Upper Support Insulator (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).

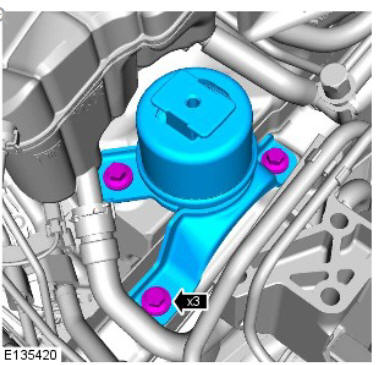

.jpg)
INSTALLATION
Refer to: Engine Mount Alignment (303-01B Engine - INGENIUM I4 2.0L Diesel, General Procedures).

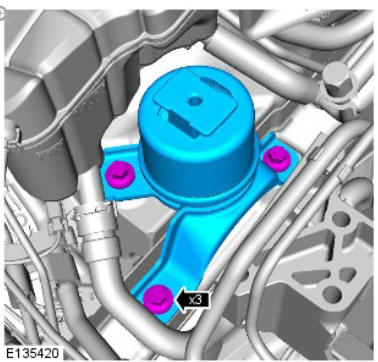

.jpg)
Torque: 80 Nm
Refer to: Engine Upper Support Insulator (303-01B Engine - INGENIUM I4 2.0L Diesel, Removal and Installation).
Engine - Ingenium i4 2.0l Diesel Oil Pan (G1875878) / Removal and InstallationEngine - Ingenium i4 2.0l Diesel Upper Timing Chain (G1875889)
