Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Oil Pan (G1875878) / Removal and Installation
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
WARNING:
Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.
Refer to: Engine Oil Draining and Filling (303-01B Engine -
INGENIUM I4 2.0L Diesel, General Procedures).
Refer to: Starter Motor (303-06B Starting System - INGENIUM I4
2.0L Diesel, Removal and Installation).
Refer to: Crankshaft Pulley (303-01B Engine - INGENIUM I4 2.0L
Diesel, Removal and Installation).
Refer to: Front Right Halfshaft - RHD AWD/LHD AWD (205-04 Front
Drive Halfshafts, Removal and Installation).
Refer to: Front Right Halfshaft - RHD AWD/LHD AWD (205-04 Front
Drive Halfshafts, Removal and Installation).

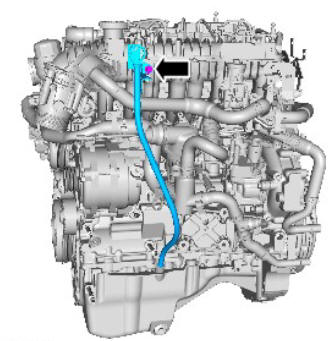

.jpg)

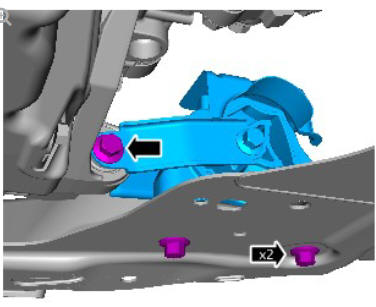

.jpg)

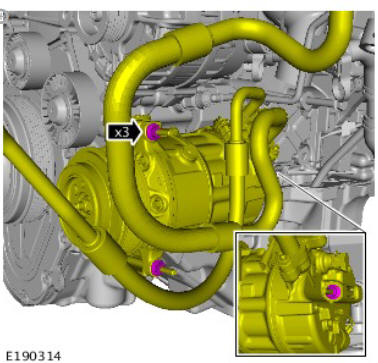

.jpg)

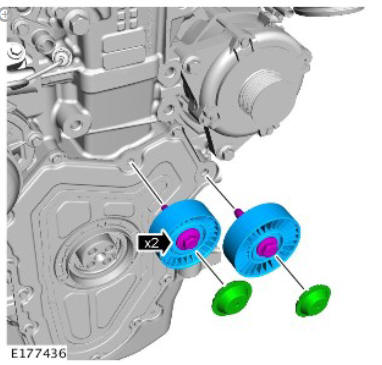

.jpg)
Torque: 25 Nm

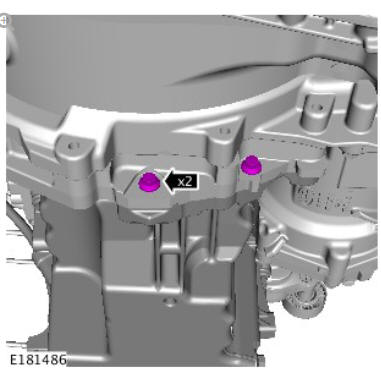

.jpg)
Torque: 25 Nm
CAUTION:
Inspect the seal and replace if necessary.

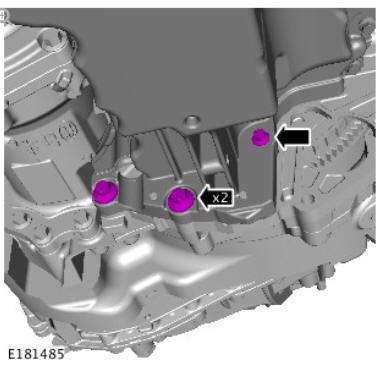

.jpg)
Torque: 12 Nm
.jpg)
Torque: 7 Nm

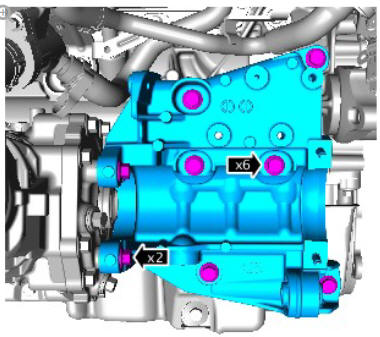

.jpg)
Torque: 48 Nm

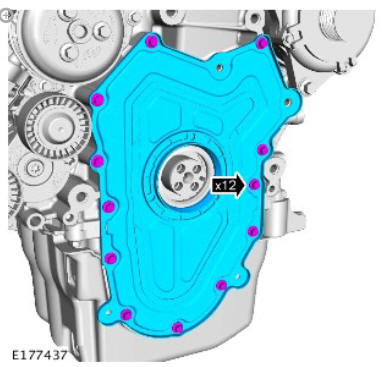

.jpg)
NOTE:
Make sure the oil pan is always supported.
.jpg)

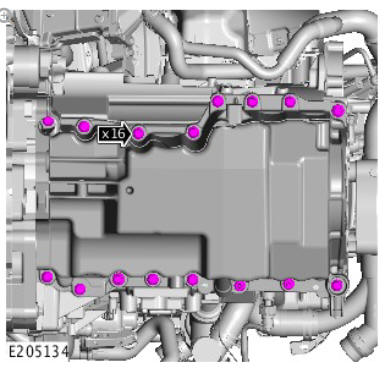

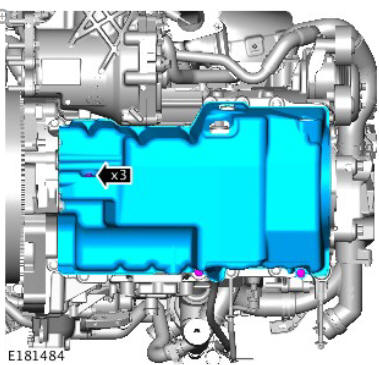

Make sure the oil pan assembly is supported after removal of all the
bolts.
Torque: 25 Nm
NOTE:
Make sure the oil pan is always supported.
.jpg)

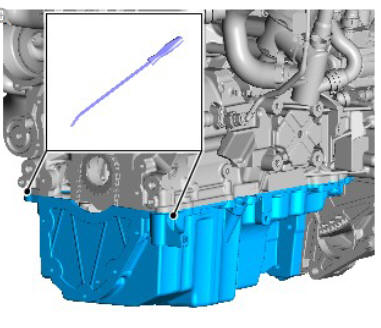

Pry the oil pan assembly in the areas shown in the illustration.
INSTALATION
NOTES:

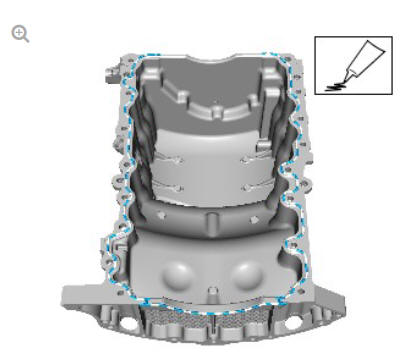

- Make sure that all traces of the old sealant are removed
from the mating faces.
- Apply silicone gasket sealant or equivalent meeting Land
Rover specification.
.jpg)
- To install, reverse the removal procedure.
