Land Rover Discovery: Driveshaft - Ingenium I4 2.0l Diesel, Vehicles with- active Driveline
(G1890848) - Removal

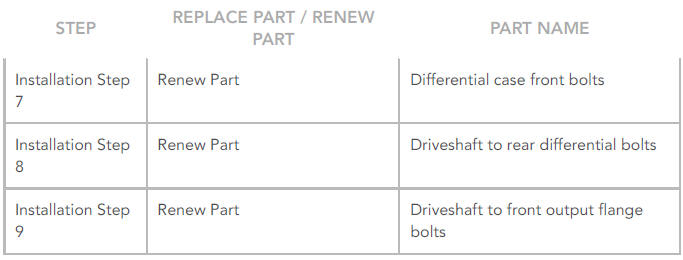

PART(S)
![PART(S)](images/books/227/index290(1).jpg)
REMOVAL
WARNING:
Make sure to support the vehicle with axle stands.

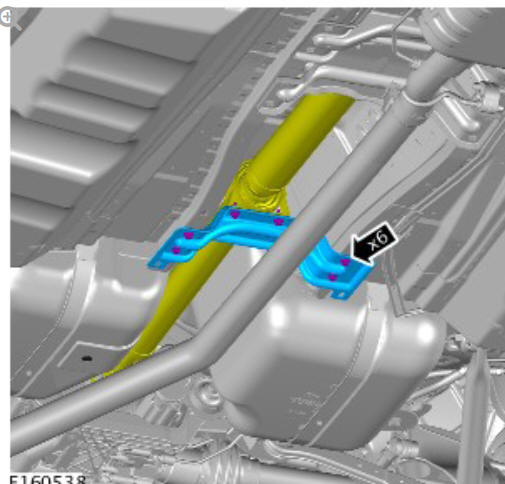

- Raise and support the vehicle.
- Refer to: Exhaust System (309-00C Exhaust System - INGENIUM I4
2.0L Diesel, Removal and Installation).
- Refer to: Diesel Particulate Filter - Vehicles With: Diesel Exhaust
Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal
and Installation).
Refer to: Diesel Particulate Filter - Vehicles Without: Diesel Exhaust
Fluid (309-00C Exhaust System - INGENIUM I4 2.0L Diesel, Removal
and Installation).
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index291(1).jpg)

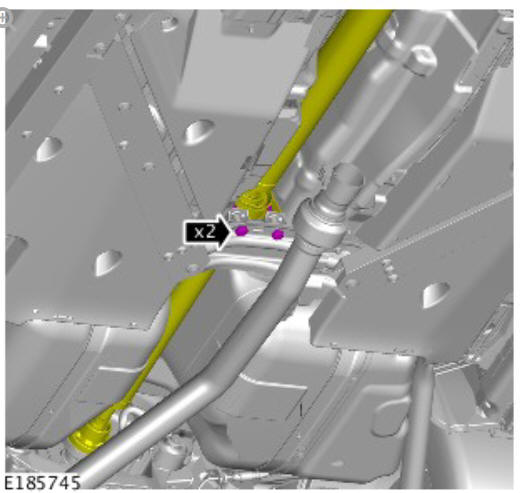

NOTE:
If equipped.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index292(1).jpg)

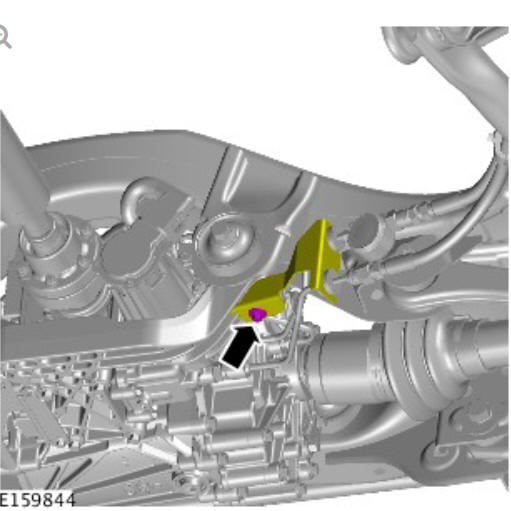

CAUTIONS:
- To avoid damage to the joint or gaiter, do not allow the
driveshaft to hang.
- Discard the bolts.

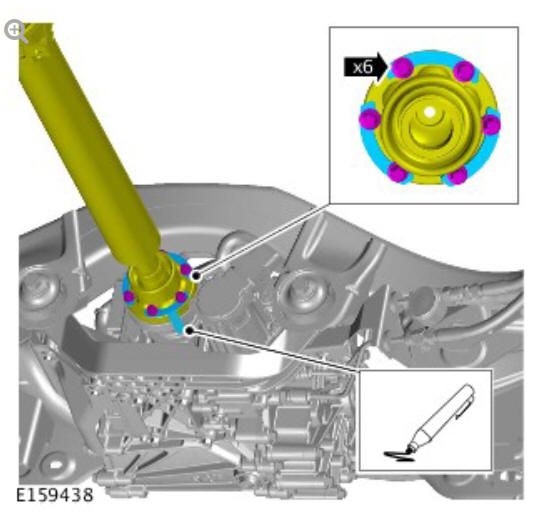

NOTE:
Mark the position of the driveshaft flange in relation to the
drive pinion flange damper.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index293(1).jpg)
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index294(1).jpg)
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index295(1).jpg)

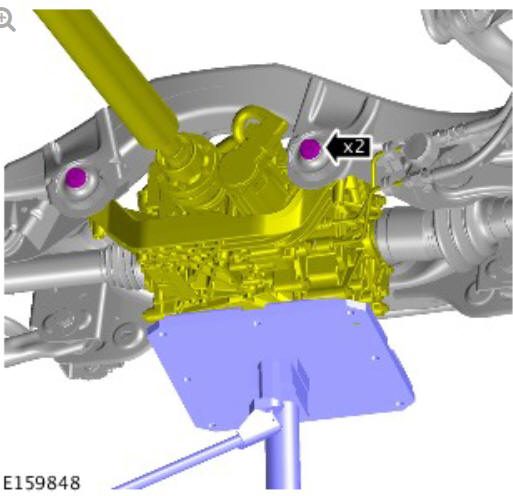

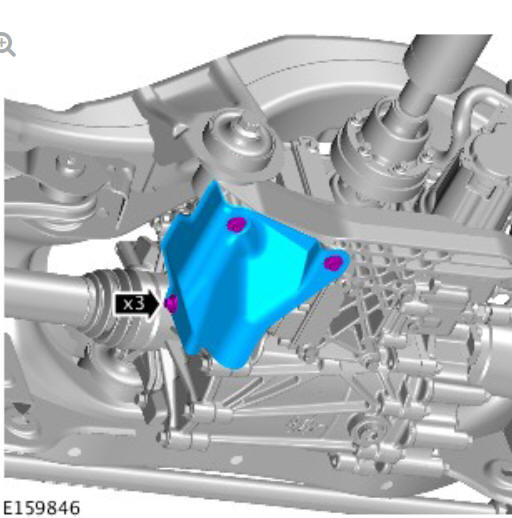

CAUTION:
Discard the bolts.

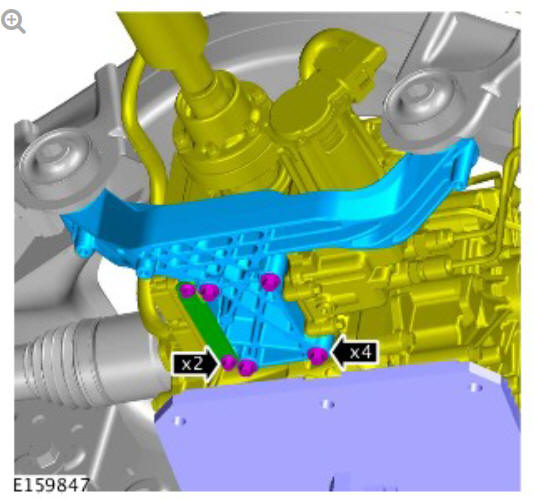

NOTE:
Using a suitable transmission jack support the differential
case.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index296(1).jpg)
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index297(1).jpg)
NOTE:
If equipped.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index298(1).jpg)

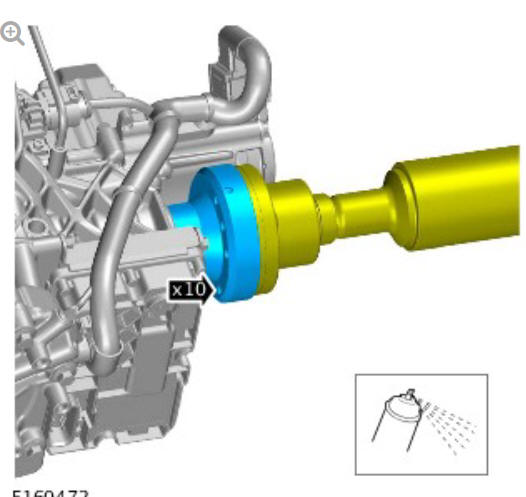

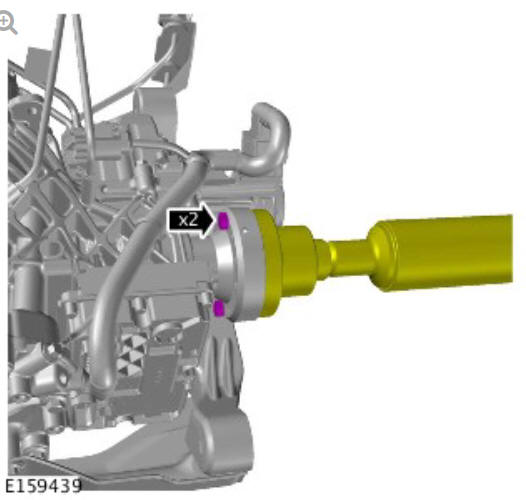

NOTE:
Use penetrating oil - spray through the driveshaft bolt holes
as shown.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index299(1).jpg)

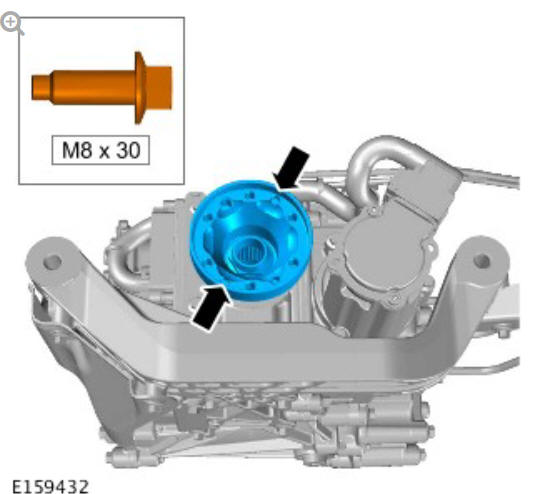

CAUTION:
Use a suitable bolt with a square cross section end to avoid
damaging the driveshaft joint.
NOTE:
Driveshaft joint shown removed for clarity.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index21(3).jpg)

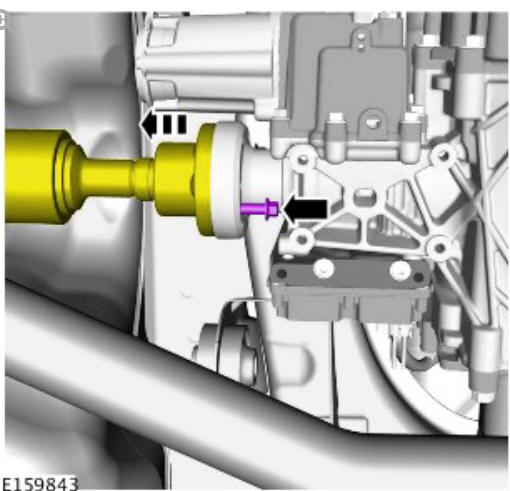

CAUTION:
Install the bolt finger tight.
NOTE:
Alternate tighten the bolts until the movement of the
driveshaft joint is detected.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index22(3).jpg)

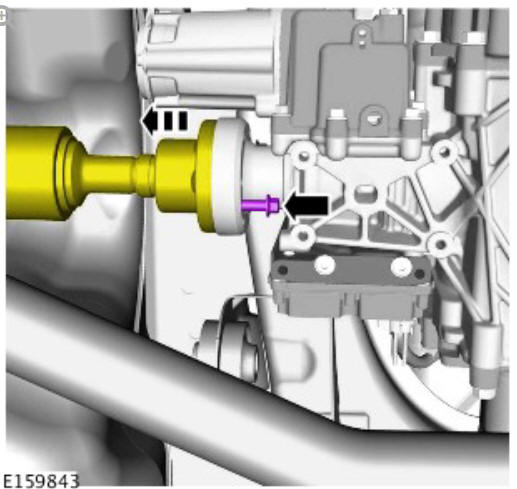

CAUTION:
Make sure that the driveshaft is supported with suitable
retaining straps.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index23(3).jpg)
- Remove the bolt, turn the driveshaft and repeat the above
step at the opposite threaded hole.
- Repeat above steps until the driveshaft joint is fully released

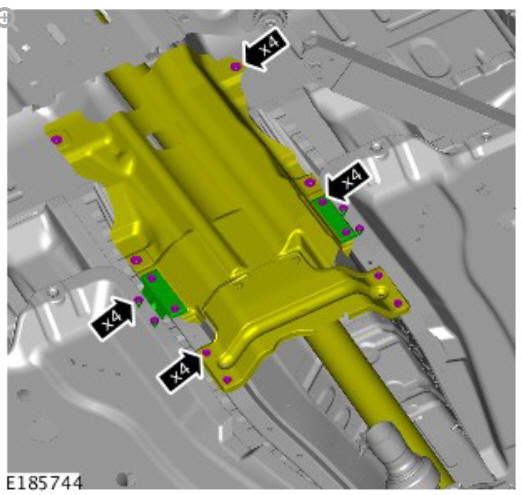

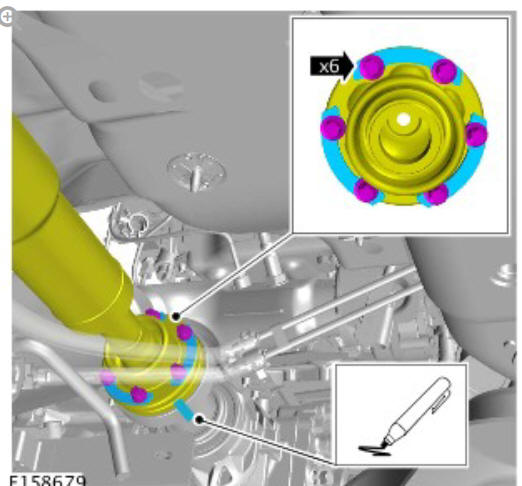

CAUTIONS:
- To avoid damage to the joint or gaiter, do not allow the
driveshaft to hang.
- Mark the position of the driveshaft flange in relation to the
drive pinion flange.
- Make sure that the driveshaft is supported with suitable
retaining straps.
- Discard the bolts.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index24(3).jpg)
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index25(3).jpg)

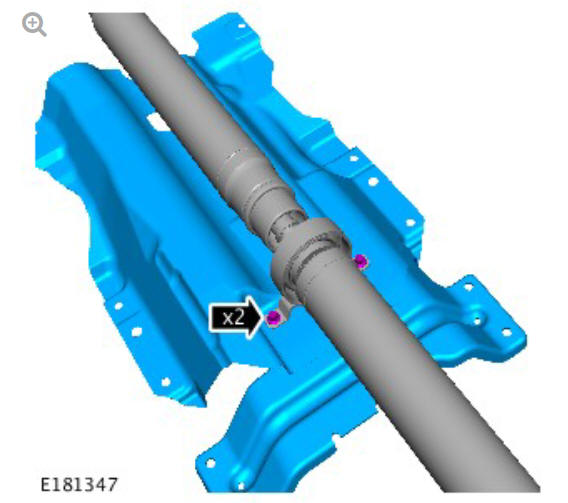

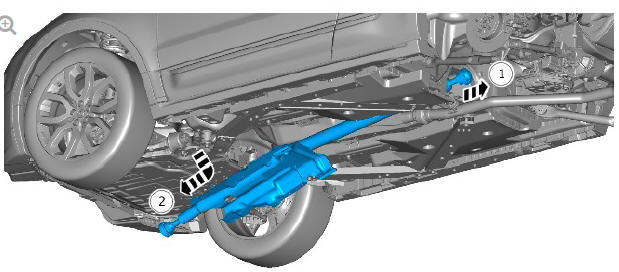

NOTES:
- This step requires the aid of another technician.
- Do not disassemble further if the component is removed
for access only.
![Driveshaft - ingenium i4 2.0l diesel, vehicles with- active driveline (G1890848) - Removal](images/books/227/index26(3).jpg)
![](images/books/227/index27(3).jpg)
