Land Rover Discovery: Rear View Mirrors
/ Diagnosis and Testing
PRINCIPLES OF OPERATION
For a detailed description of the Rear View Mirrors, refer to the relevant
Description and Operation section in the workshop manual. REFER to:
Interior Rear View Mirror (501-09 Rear View Mirrors, Removal and
Installation).
INSPECTION AND VERIFICATION
CAUTION:
Diagnosis by substitution from a donor vehicle is NOT acceptable.
Substitution of control modules does not guarantee confirmation of a
fault, and may also cause additional faults in the vehicle being tested
and/or the donor vehicle.
NOTES:
- If a control module or a component is suspect and the vehicle
remains under manufacturer warranty, refer to the Warranty Policy
and Procedures manual, or determine if any prior approval
programme is in operation, prior to the installation of a new
module/component.
- When performing voltage or resistance tests, always use a digital
multimeter accurate to three decimal places, and with an up-todate
calibration certificate. When testing resistance always take the
resistance of the digital multimeter leads into account.
- Check and rectify basic faults before beginning diagnostic routines
involving pinpoint tests.
- Verify the customer concern
- Visually inspect for obvious signs of damage and system integrity

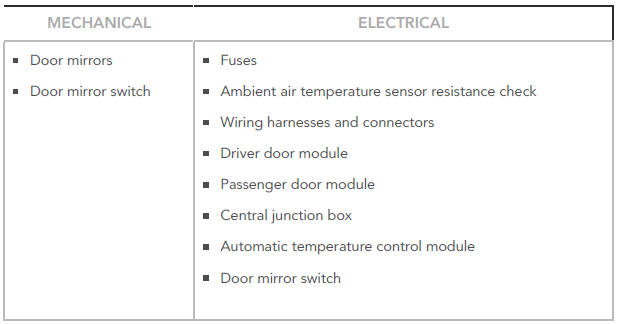

Visual Inspection
.9.jpg)
- If an obvious cause for an observed or reported concern is found,
correct the cause (if possible) before proceeding to the next step
- If the cause is not visually evident, verify the symptom and refer to
the
Symptom Chart, alternatively check for Diagnostic Trouble Codes
(DTCs) and refer to the DTC Index
- Check DDW for open campaigns. Refer to the corresponding bulletins
and SSMs which may be valid for the specific customer complaint and
carry out the recommendations as required

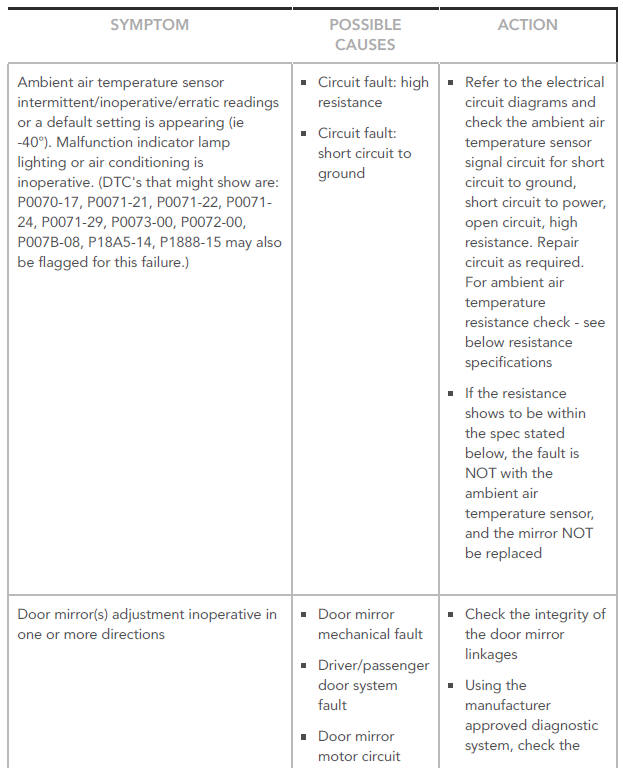

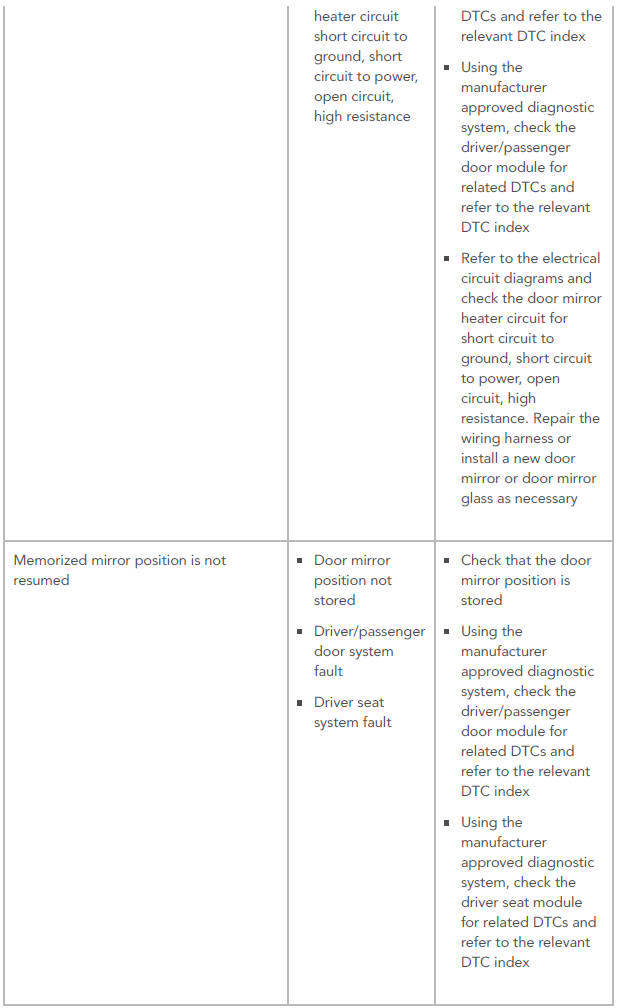

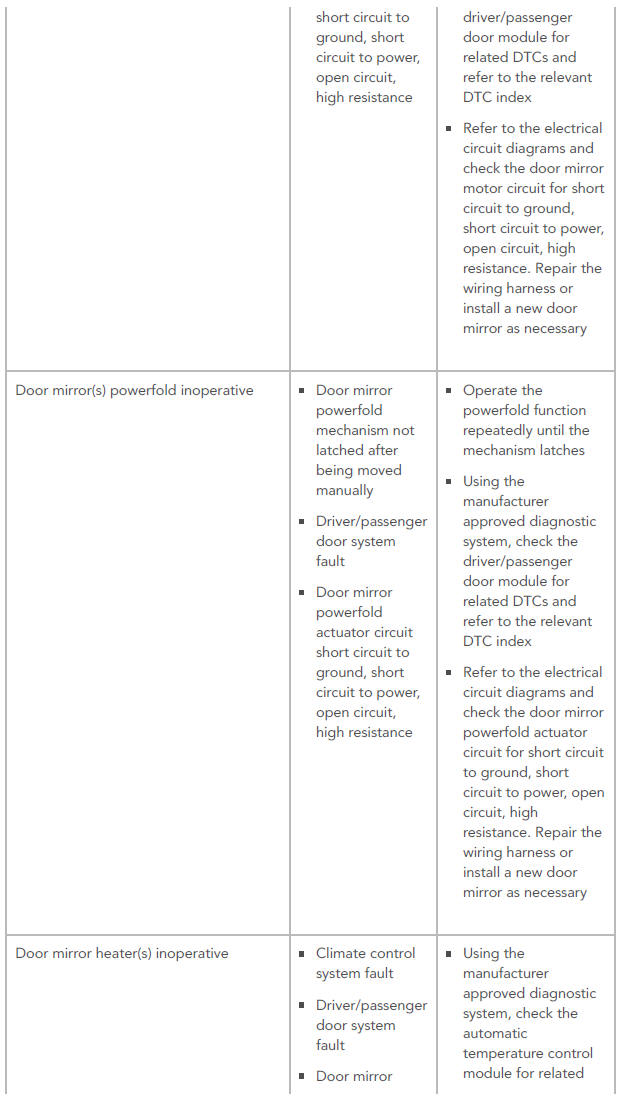

SYMPTOM CHART
.10.jpg)
.11.jpg)
.12.jpg)

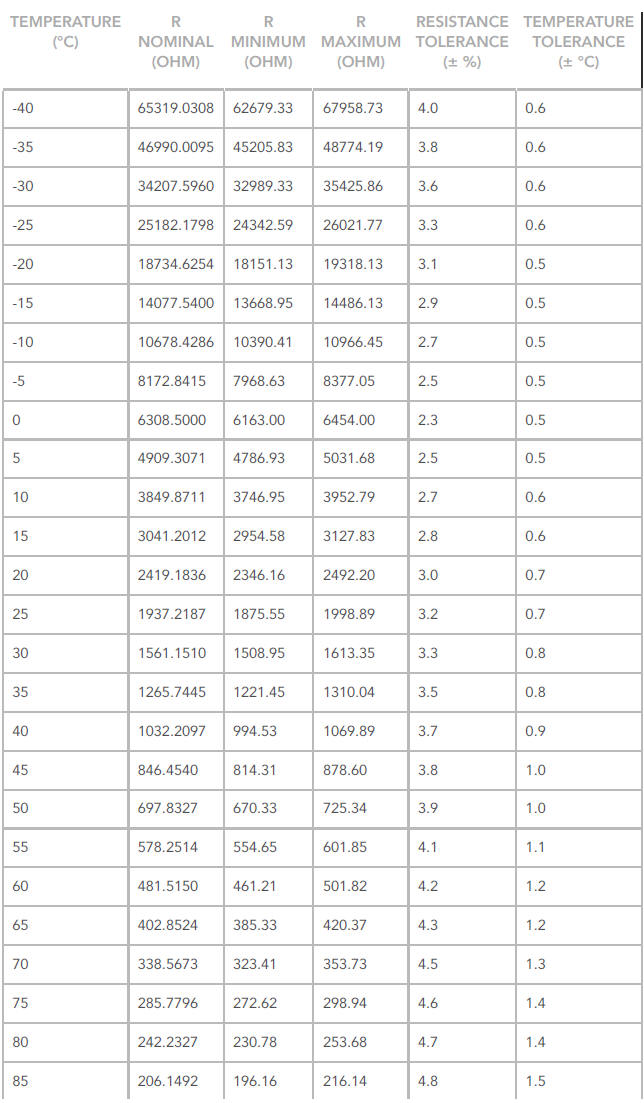

AMBIENT AIR TEMPERATURE SENSOR SPECIFICATIONS
.13.jpg)
DTC INDEX
For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this
vehicle, please refer to Section 100-00. REFER to: (100-00 General
Information)
Diagnostic Trouble Code Index - DTC: Driver / Passenger / Rear Left / Rear
Right Door Module (DDM/PDM/RLDM/RRDM) (Description and Operation),
Diagnostic Trouble Code Index - DTC: Central Junction Box (CJB)
(Description and Operation).
Rear view mirrors specifications

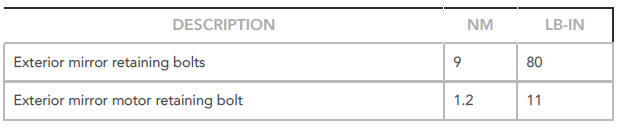

Torque Specifications
.14.jpg)
