Land Rover Discovery: Examples of Damage to Seat Cover
Below are some examples of damage that would not be accepted under the
terms of the Jaguar Land Rover warranty agreement. Please note: these are
examples only and do not represent all warrantable/non warrantable
customer concerns.

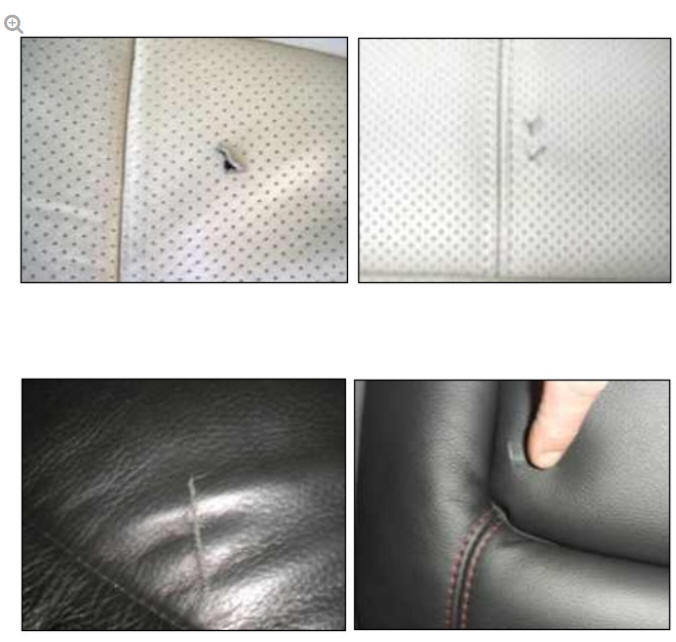

The examples below show damage such as cuts, tears and puncture holes.
These types of damage would not be accepted under the terms of the
Jaguar Land Rover warranty agreement (unless the seat cover damage was
noted on the Pre Delivery Inspection).
.26.jpg)

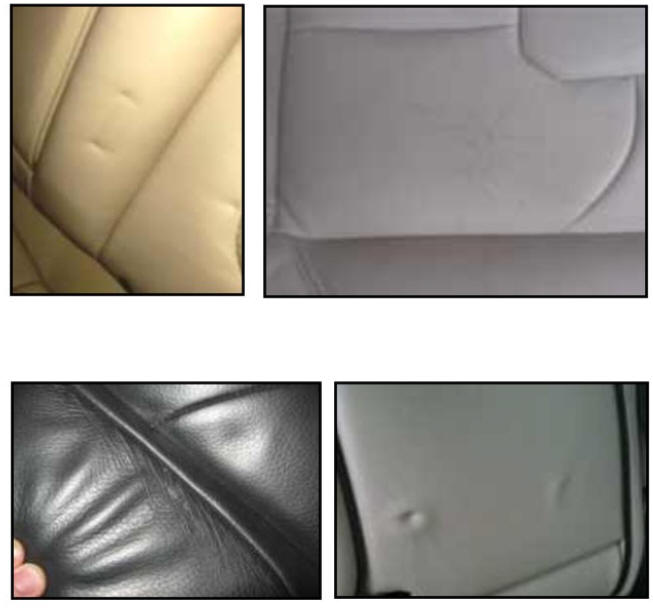

The examples below show damage such as scratches, scrapes, snags and
indentation marks. These types of damage would not be accepted under
the terms of the Jaguar Land Rover warranty agreement (unless the seat
cover damage was noted on the Pre Delivery Inspection).
.27.jpg)

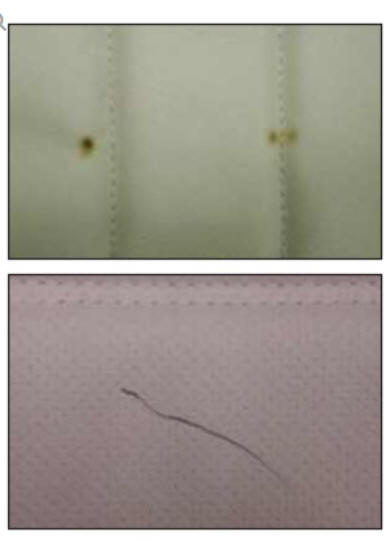

The examples below show damage such as pen marks and visual surface
burns. These types of damage would not be accepted under the terms of
the Jaguar Land Rover warranty agreement (unless the seat cover damage
was noted on the Pre Delivery Inspection).
.28.jpg)
