Land Rover Discovery: Vehicle Dynamic Suspension Front Suspension Height Sensor (G1426750) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Suspension / Vehicle Dynamic Suspension Front Suspension Height Sensor (G1426750) / Removal and Installation

REMOVAL

CAUTION:

LH illustration shown, RH is similar.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Vehicles without dynamic suspension, but with automatic headlamp levelling, only have two suspension height sensors, which are installed on the right hand side of the vehicle.

WARNING:

Make sure to support the vehicle with axle stands

Raise and support the vehicle.

Refer to: Wheel and Tire (204-04, Removal and Installation).

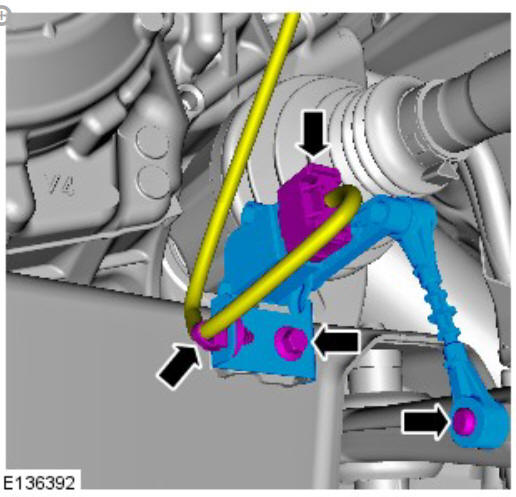

Vehicle dynamic suspension front suspension height sensor (G1426750) Removal and installation

Torque: 5.4 Nm

NOTE:

Do not disassemble further if the component is removed for access only.

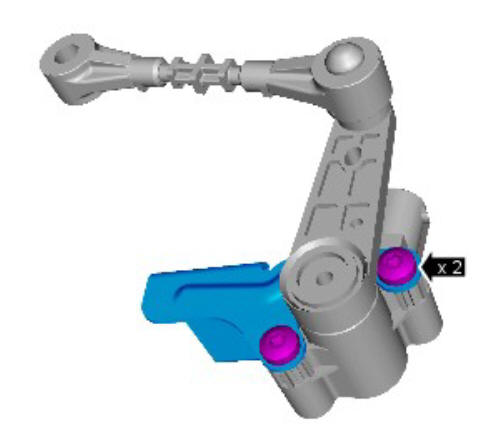

Vehicle dynamic suspension front suspension height sensor (G1426750) Removal and installation

INSTALATION

To install, reverse the removal procedure.

Using Land Rover approved diagnostic equipment, calibrate the sensor.

Check the suspension system ride height.

Vehicle dynamic suspension integrated suspension control module (G1779914) removal and installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Remove left loadspace trim panel.

Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

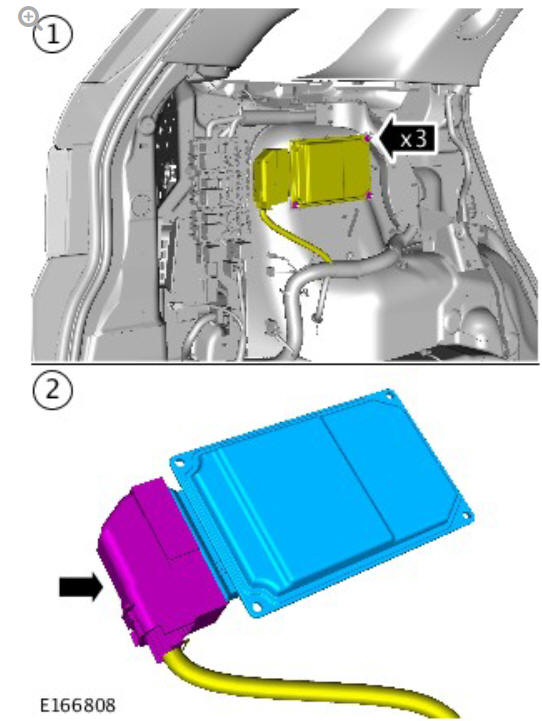

Vehicle dynamic suspension integrated suspension control module (G1779914) removal and installation

Torque: 6 Nm

INSTALLATION

CAUTION:

If a new component has been installed, configure using Land Rover approved diagnostic equipment.

To install, reverse the removal procedure.
