Land Rover Discovery: Transmission Cover (G1780374) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Powertrain / Automatic Transmission Transaxle / Transmission Cover (G1780374) / Removal and Installation
PART(S)
.jpg)
REMOVAL
WARNING:
Be prepared to collect escaping fluid.
CAUTION:
Extreme cleanliness must be exercised when handling this component.
NOTES:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
- Transmission shown removed for clarity.
Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

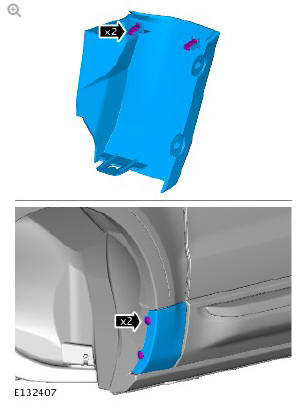

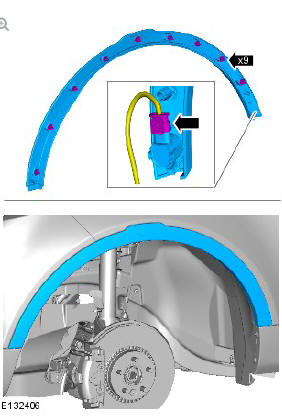

.jpg)
.jpg)
.jpg)
.jpg)
CAUTION:
Discard the bolts.
.jpg)
CAUTION:
Make sure that the mating faces are clean and free of corrosion and foreign material.
NOTE:
Discard the gasket.
.jpg)
INSTALLATION
CAUTION:

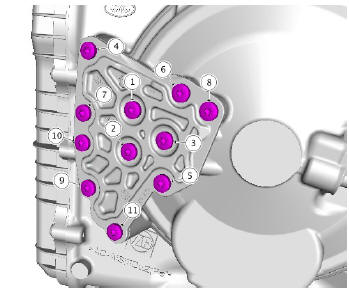

Tighten the bolts in the sequence shown.
NOTE:
Make sure that new bolts are installed.
.jpg)

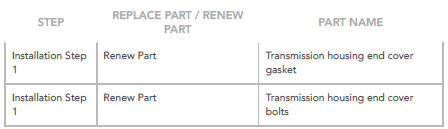

Renew Part: Transmission housing end cover gasket.
Renew Part: Transmission housing end cover bolts.
Torque: 10 Nm
To install, reverse the removal procedure.
Transmission - Ingenium i4 2.0l
Diesel (G1887786) / InstallationTransmission Fluid Drain and
Refill (G1660818)
/ General Procedures
