Land Rover Discovery: Rear Safety Belt Retractor (G1809589) / Removal and Installation
REMOVAL
WARNINGS:
- Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.
- The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.
- The correct procedures must always be used when working on SRS components.
- To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.
- Vehicle sensor orientation is critical for correct system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. If damaged, replace the sensor whether or not the air bag is deployed.
NOTES:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
- LH illustration shown, RH is similar.
All vehicles
Refer to: Standard Workshop Practices (100-00, Description and Operation).
Refer to: Specifications (414-01, Specifications).

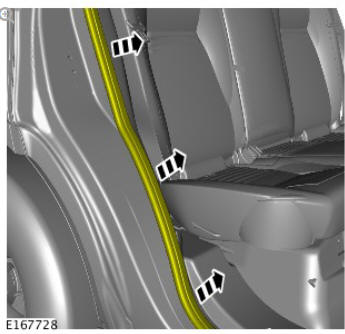

.7.jpg)
Open the rear door.
Vehicles without occasional rear seats
NOTE:
LH illustration shown, RH is similar.

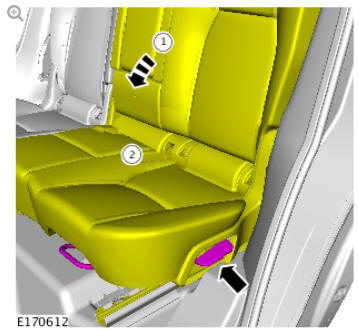

.8.jpg)
Vehicles with occasional rear seats

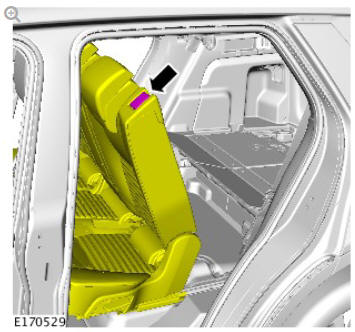

.9.jpg)
All vehicles
.10.jpg)
Torque: 40 Nm
Vehicles with occasional rear seats

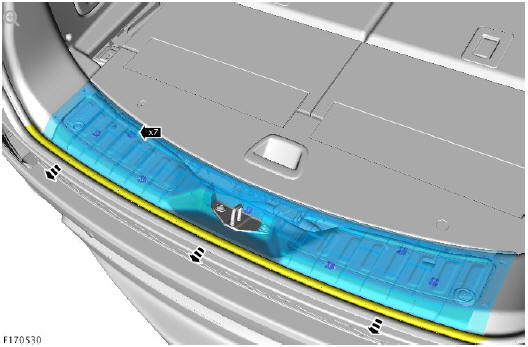

.11.jpg)

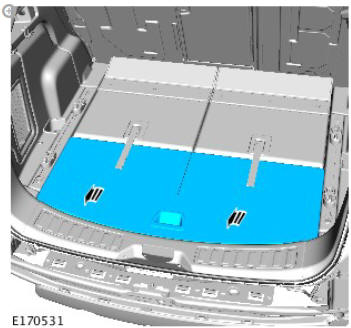

.12.jpg)

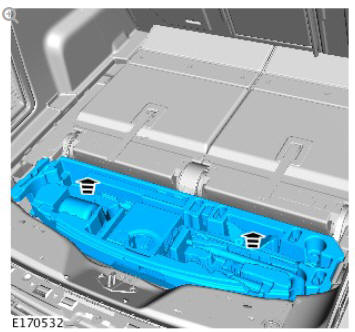

.13.jpg)
All vehicles

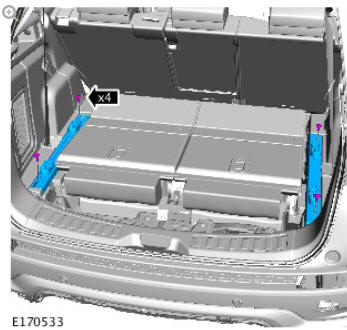

.14.jpg)
Torque: 25 Nm

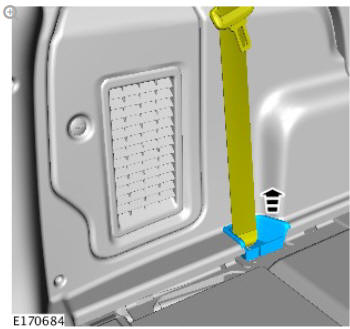

.15.jpg)

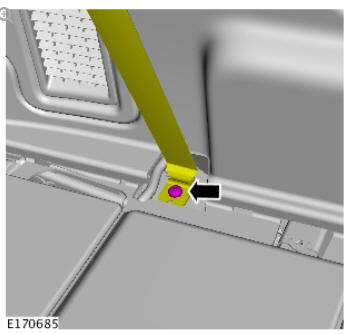

.16.jpg)
Torque: 40 Nm
NOTE:
LH illustration shown, RH is similar.

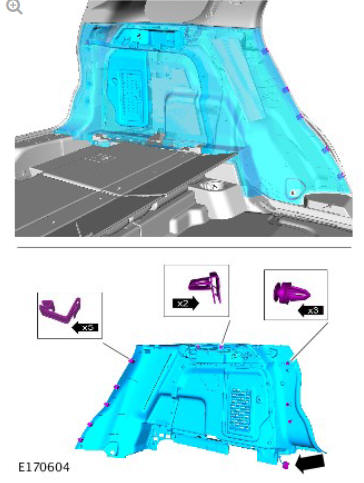

.17.jpg)
NOTE:
RH illustration shown, LH is similar.

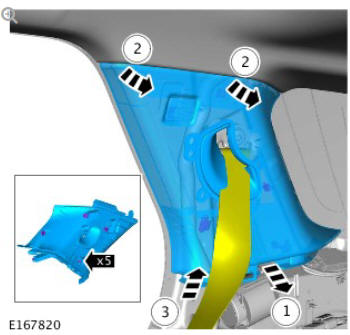

.18.jpg)
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
NOTE:
LH illustration shown, RH is similar.

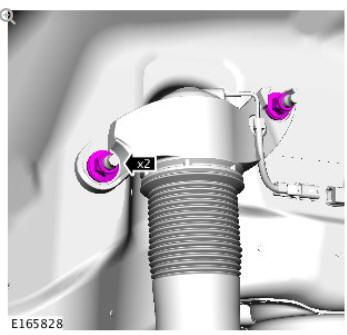

.19.jpg)
Torque: 80 Nm
Vehicles with occasional rear seats

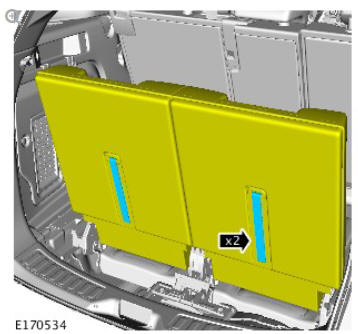

.20.jpg)

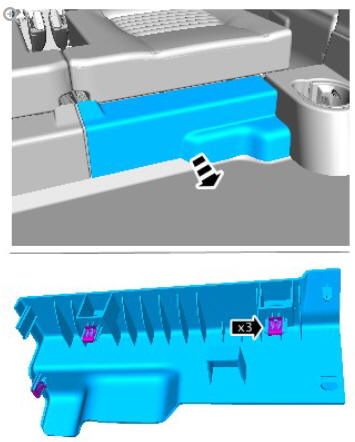

.21.jpg)

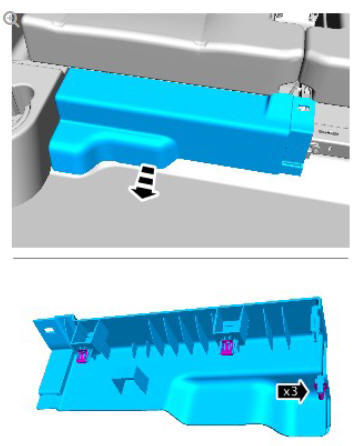

.22.jpg)

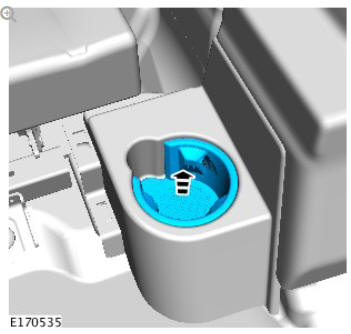

.23.jpg)

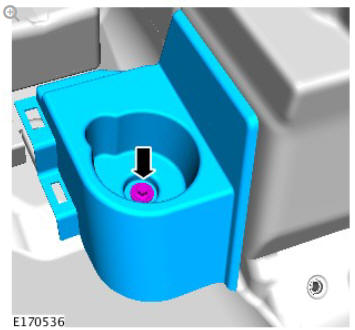

.24.jpg)
Torque: 10 Nm

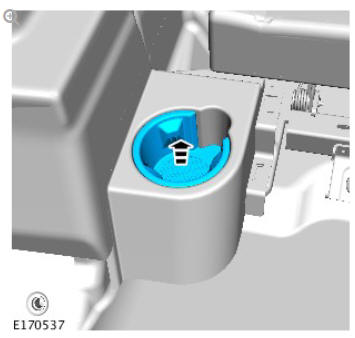

.25.jpg)

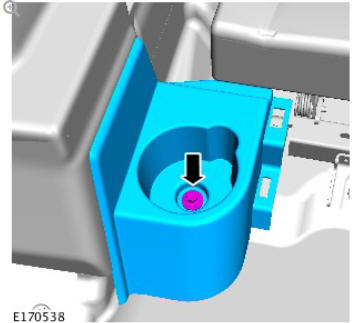

.26.jpg)
Torque: 10 Nm

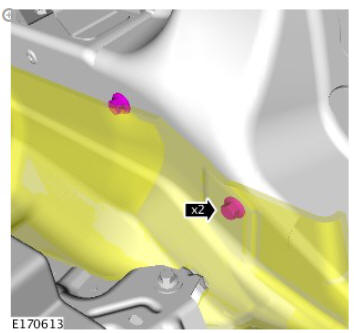

.27.jpg)

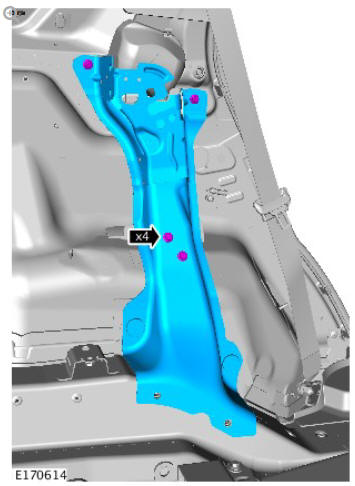

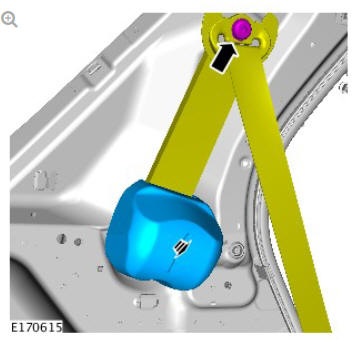

.28.jpg)
Torque: 25 Nm
.29.jpg)
Torque: 40 Nm

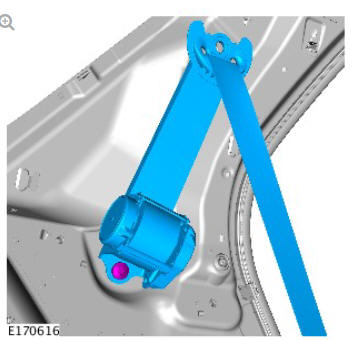

.30.jpg)
Torque: 40 Nm
INSTALLATION
To install, reverse the removal procedure.
