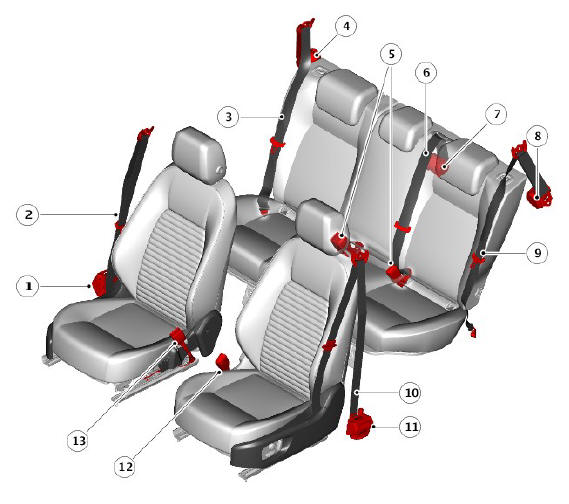

Component Location - Sheet 1 of 3 - 5 Seat Vehicles

Component Location - Sheet 1 of 3 - 5 Seat Vehicles

  1. Front right seatbelt retractor and pretensioner
  2. Front right seatbelt
  3. Rear right seatbelt
  4. Rear right seatbelt retractor
  5. Rear seatbelt buckles
  6. Rear center seatbelt
  7. Rear center seatbelt retractor
  8. Rear left seatbelt retractor
  9. Rear left seatbelt
  10. Front left seatbelt
  11. Front left seatbelt retractor and pretensioner
  12. Front left seatbelt buckle
  13. Front right seatbelt buckle

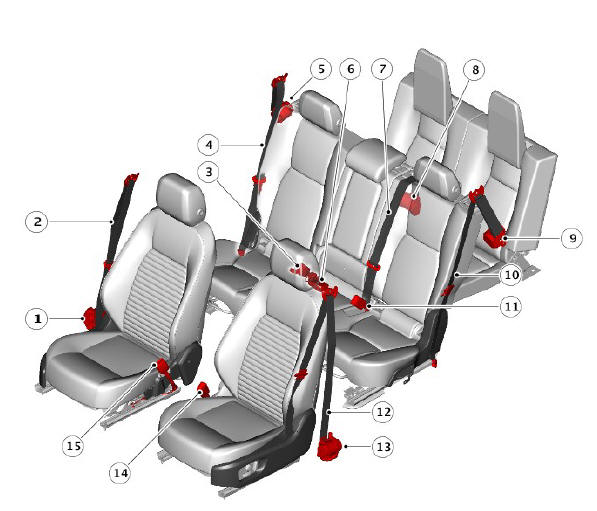

Component Location - Sheet 2 of 3 - 7 Seat Vehicles

Component Location - Sheet 2 of 3 - 7 Seat Vehicles

  1. Front right seatbelt retractor and pretensioner
  2. Front right seatbelt
  3. Rear right seatbelt buckle
  4. Rear right seatbelt
  5. Rear right seatbelt retractor
  6. Rear center seatbelt buckle
  7. Rear center seatbelt
  8. Rear center seatbelt retractor
  9. Rear left seatbelt retractor
  10. Rear left seatbelt
  11. Rear left seatbelt buckle
  12. Front left seatbelt
  13. Front left seatbelt retractor and pretensioner
  14. Front left seatbelt buckle

14. Front right seatbelt buckle

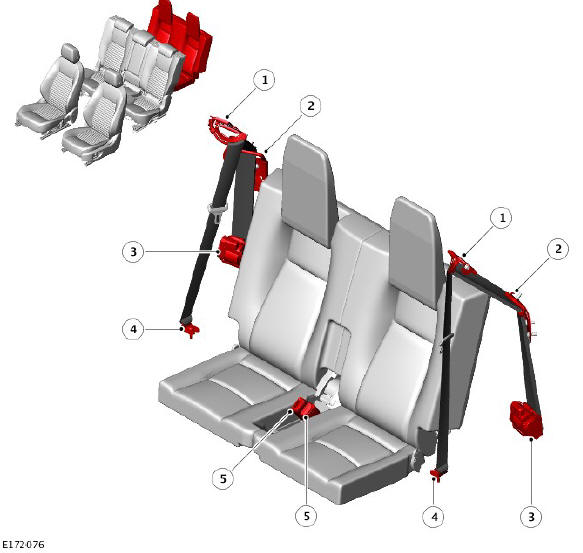

Component Location - Sheet 3 of 3 - 7 Seat Vehicles

Component Location - Sheet 3 of 3 - 7 Seat Vehicles

  1. Upper Seatbelt mounting
  2. Lower seatbelt mounting
  3. Seatbelt retractor
  4. Seatbelt anchor
  5. Seatbelt buckle
  6. Rear center seatbelt
    next pageSeatbelt System / Description and OperationSeatbelt System - Overviewnext page
