Land Rover Discovery: Rear end Sheet Metal Repairs Rear Lamp Panel Outer (G1771163) - Removal

Land Rover Discovery (2009–2016) Service Manual / Body / Body Repairs and General Information / Rear end Sheet Metal Repairs Rear Lamp Panel Outer (G1771163) / Rear end Sheet Metal Repairs Rear Lamp Panel Outer (G1771163) - Removal

Removal

NOTE:

The rear lamp panel outer is installed in conjunction with:

  • Rear bumper cover
  • Rear bumper
  • Rear lamp assembly
  • Quarter panel
  • Quarter panel lower extension
  • Side panel
  • Loadspace trim panel

Rear end sheet metal repairs rear lamp panel outer (G1771163) - Removal

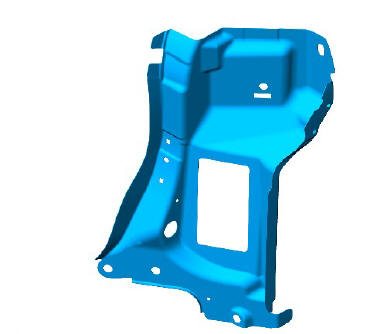

  1. The rear lamp panel outer is serviced as indicated.
  2. Before commencing this procedure make sure that you are aware of all Health and Safety requirements.

    For additional information, refer to: Health and Safety Precautions (100-00, Description and Operation).

  3. For further information on the methods, tools and fixings used in this procedure refer to the body repairs - general information section.

NOTES:

  • Any joints sealed as part of vehicle manufacture must be sealed as part of the repair.
  • Make sure a zinc rich primer is applied to any bare metal surfaces.
  1. For additional information, refer to: Rear Bumper Cover (501-19, Removal and Installation).
  2. For additional information, refer to: Rear Bumper (501-19, Removal and Installation).
  3. For additional information, refer to: Rear Lamp Assembly (417-01, Removal and Installation).
  4. For additional information, refer to: Quarter Panel (501-30, Removal and Installation).
  5. For additional information, refer to: Quarter Panel Lower Extension (501-30, Removal and Installation).
  6. For additional information, refer to: Side Panel (501-29, Removal and Installation).
  7. For additional information, refer to: Loadspace Trim Panel (501-05, Removal and Installation).

Rear end sheet metal repairs rear lamp panel outer (G1771163) - Removal

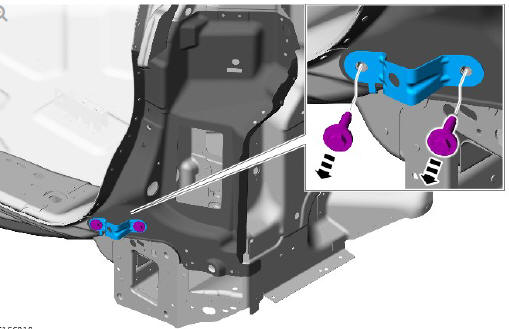

  1. Remove the liftgate mounting buffers as indicated

Rear end sheet metal repairs rear lamp panel outer (G1771163) - Removal

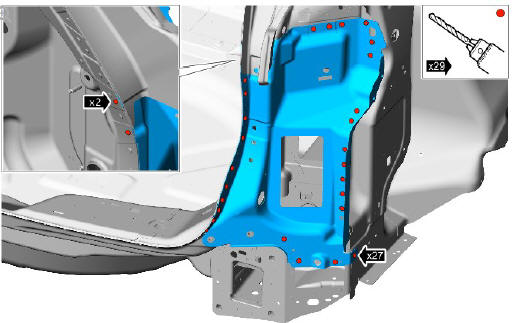

  1. Remove the spot welds as indicated.

Rear end sheet metal repairs rear lamp panel outer (G1771163) - Removal

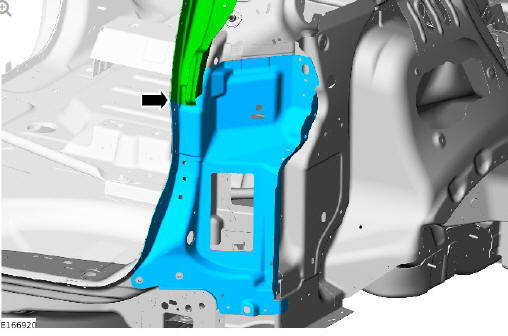

  1. Carefully build an expansion space between the rear lamp panel outer and the water drain panel to aid panel removal as indicated.
  2. Carefully separate the joints and remove the rear lamp panel outer.
