Land Rover Discovery: Steering Column Steering
Wheel (G1775242) / Removal and
Installation
REMOVAL
CAUTION:
Make sure that the road wheels are in the straight ahead position.
NOTES:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential
information is always correct.
Make the SRS system safe.
Refer to: Standard Workshop Practices (100-00 General
Information, Description and Operation).
Refer to: Driver Airbag Module (501-20B Supplemental Restraint
System, Removal and Installation).

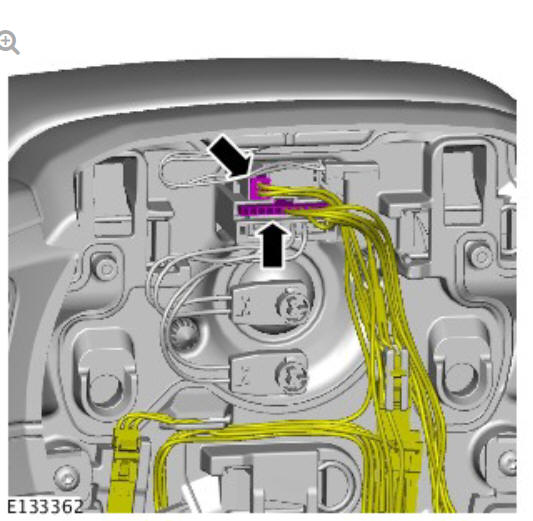

.jpg)

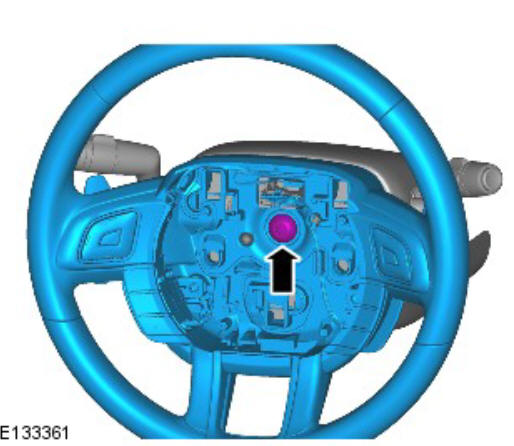

.jpg)
Torque: 47 Nm
CAUTION:
Make sure that the clockspring rotor does not rotate.

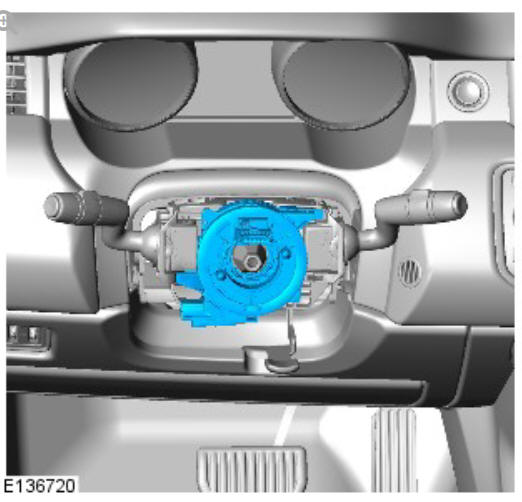

.jpg)
Secure with adhesive tape.
NOTES:
- Do not disassemble further if the component is removed
for access only.
- If equipped.

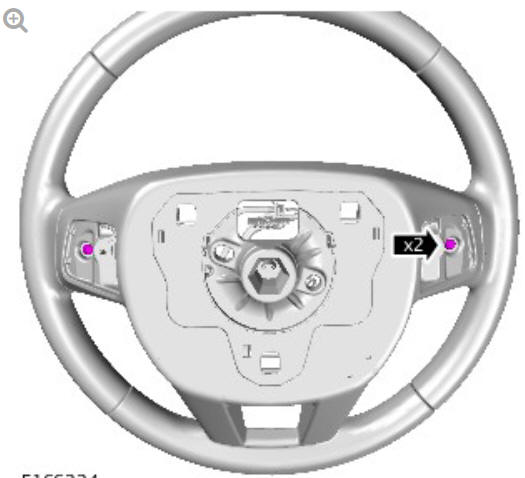

.jpg)
Torque: 1.6 Nm

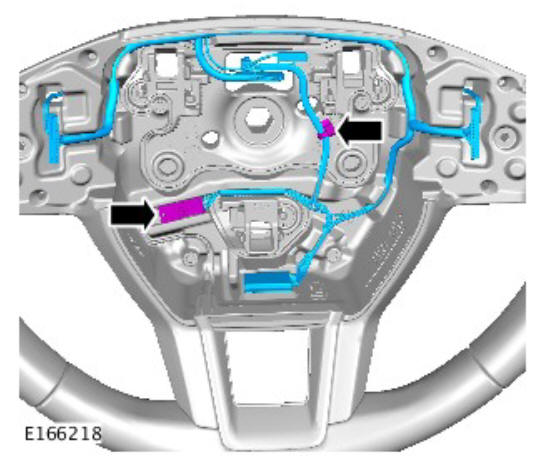

.jpg)
Torque: 2 Nm
CAUTIONS:
- Make sure that the terminals or pins of the connector are
not bent or damaged.
- Take extra care not to damage the edges of the
component.
NOTE:
Repeat the step for the other side.

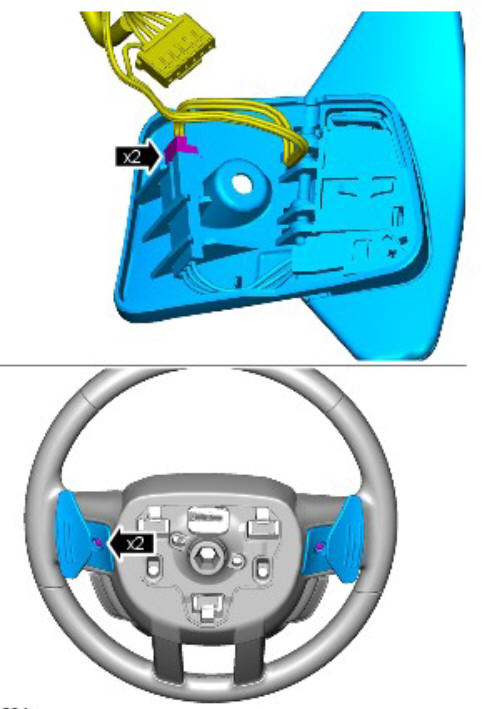

.jpg)
NOTE:
If equipped.

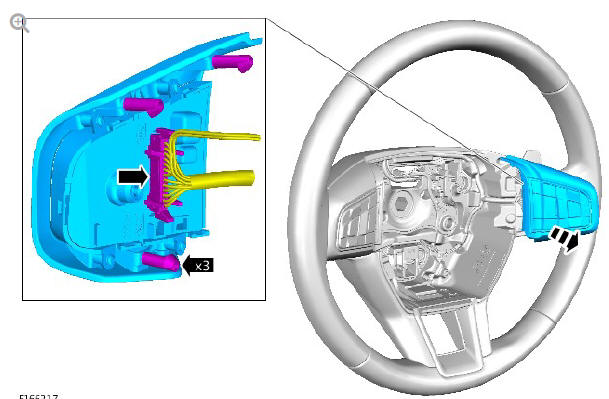

.jpg)
INSTALLATION
- To install, reverse the removal procedure.
- If a new component is installed, the soft lock stop reset routine
should be completed on the power steering system, using the
approved diagnostic tool.
