Land Rover Discovery: Rear end Sheet Metal Repairs Rear Floor Side Extension (G1770934) - Removal

Land Rover Discovery (2009–2016) Service Manual / Body / Body Repairs and General Information / Rear end Sheet Metal Repairs Rear Floor Side Extension (G1770934) / Rear end Sheet Metal Repairs Rear Floor Side Extension (G1770934) - Removal

Removal

NOTE:

The rear floor side extension is installed in conjunction with:

  • Rear bumper cover
  • Rear bumper
  • Back panel outer
  • Back panel inner
  • Rear lamp panel outer
  • Rear side member lower side extension

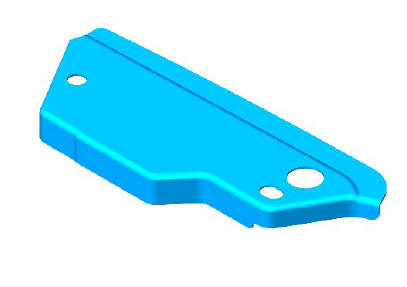

Rear end sheet metal repairs rear floor side extension (G1770934) - Removal

  1. The rear floor side extension is serviced as indicated.
  2. Before commencing this procedure make sure that you are aware of all Health and Safety requirements.

    For additional information, refer to: Health and Safety Precautions (100-00, Description and Operation).

  3. For further information on the methods, tools and fixings used in this procedure refer to the body repairs - general information section.

NOTES:

  • Any joints sealed as part of vehicle manufacture must be sealed as part of the repair.
  • Make sure a zinc rich primer is applied to any bare metal surfaces.
  1. For additional information, refer to: Rear Bumper Cover (501-19, Removal and Installation).
  2. For additional information, refer to: Rear Bumper (501-19, Removal and Installation).
  3. For additional information, refer to: Back Panel Outer (501-30, Removal and Installation).
  4. For additional information, refer to: Back Panel Inner (501-30, Removal and Installation).
  5. For additional information, refer to: Rear Lamp Panel Outer (501- 30, Removal and Installation).
  6. For additional information, refer to: Rear Side Member Lower Side Extension (501-30, Removal and Installation).

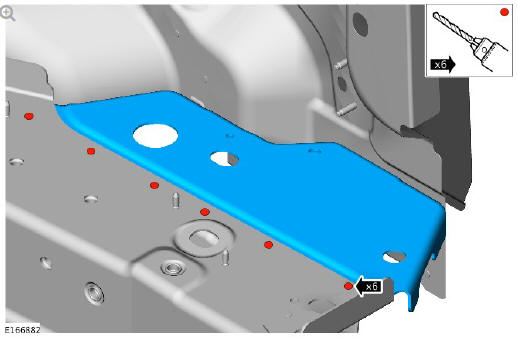

Rear end sheet metal repairs rear floor side extension (G1770934) - Removal

  1. Remove the spot welds as indicated.

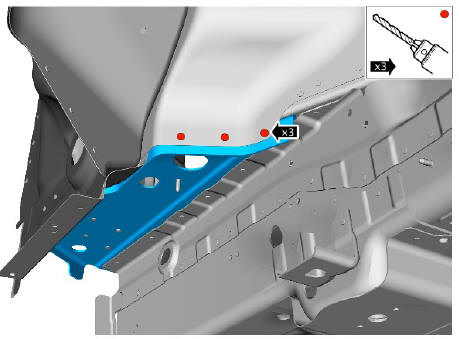

Rear end sheet metal repairs rear floor side extension (G1770934) - Removal

  1. Remove the spot welds as indicated.

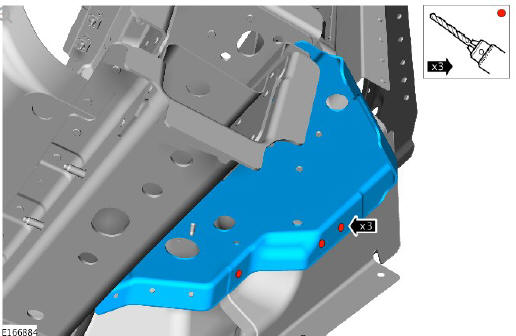

Rear end sheet metal repairs rear floor side extension (G1770934) - Removal

  1. Remove the spot welds as indicated.
  2. Carefully separate the joints and remove the panel.
