Land Rover Discovery: Rear Drive Halfshafts Inner Constant Velocity Joint Boot  (G1791656) / Removal

SPECIAL TOOL(S)

SPECIAL TOOL(S)

Removal

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Rear Halfshaft RH (205-05, Removal and Installation).

Refer to: Rear Halfshaft LH (205-05, Removal and Installation).

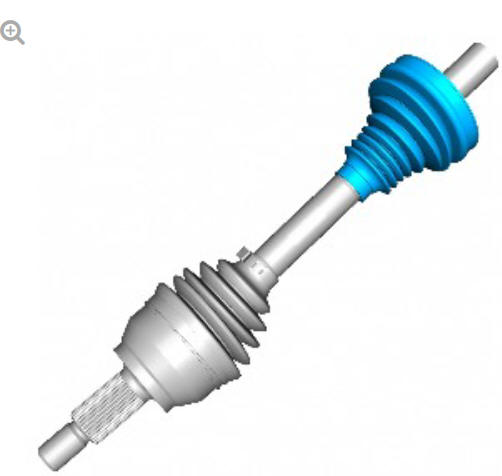

Rear drive halfshafts inner constant velocity joint boot (G1791656) Removal

NOTE:

Using suitable cloth, clean the grease from the halfshaft.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Removal

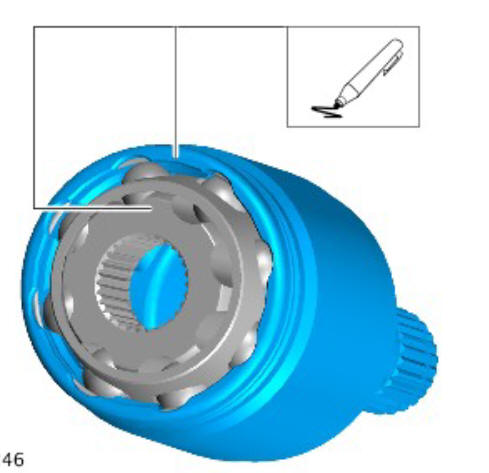

Mark the position of the component(s) as shown.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Removal

NOTE:

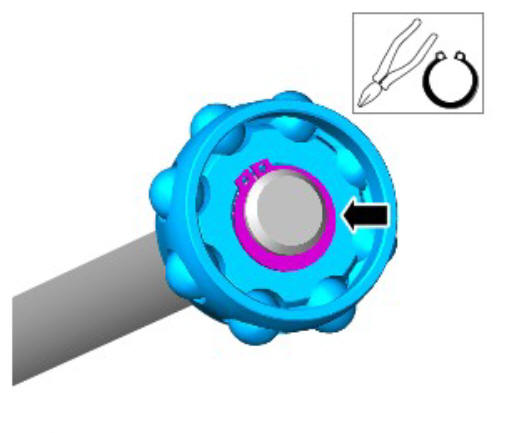

Discard the retaining clip.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Removal

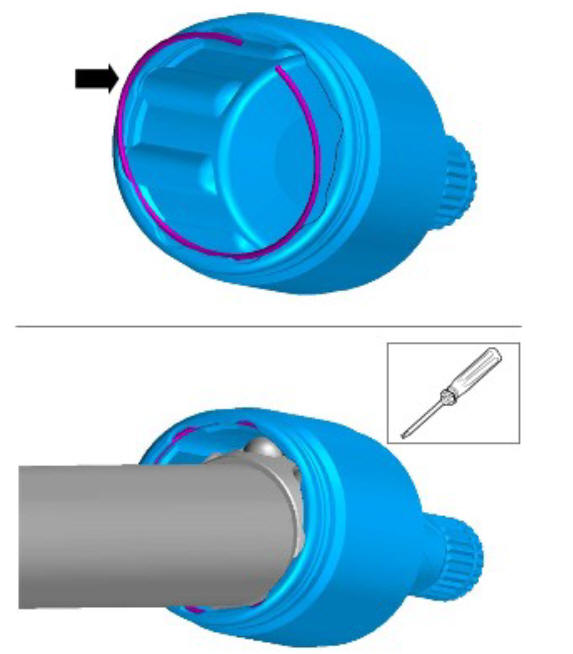

Rear drive halfshafts inner constant velocity joint boot (G1791656) Removal

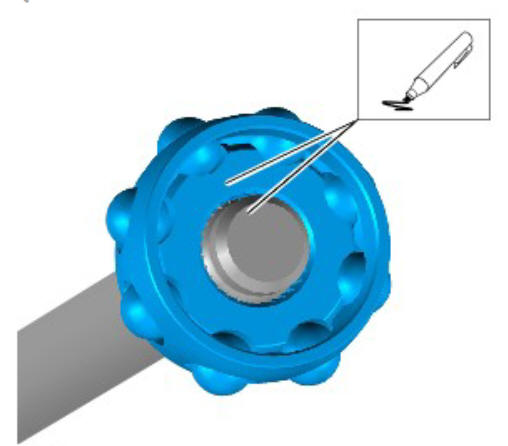

Mark the position of the component(s) as shown.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Removal

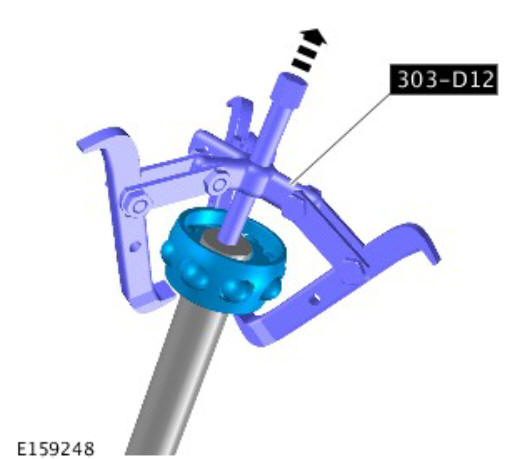

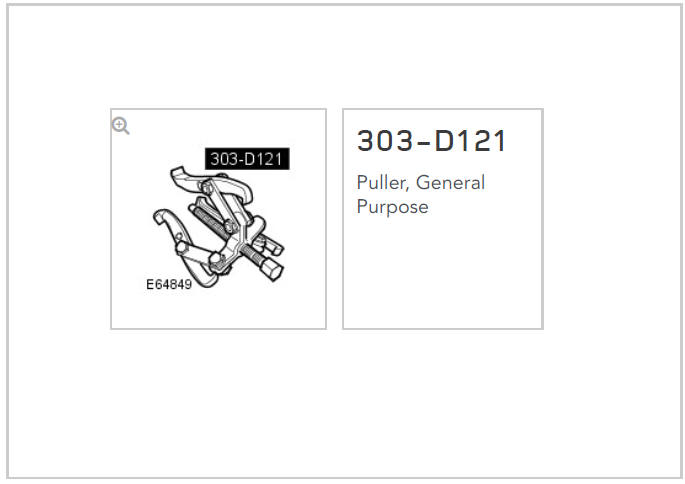

Special Tool(s): 303-D121

CAUTION:

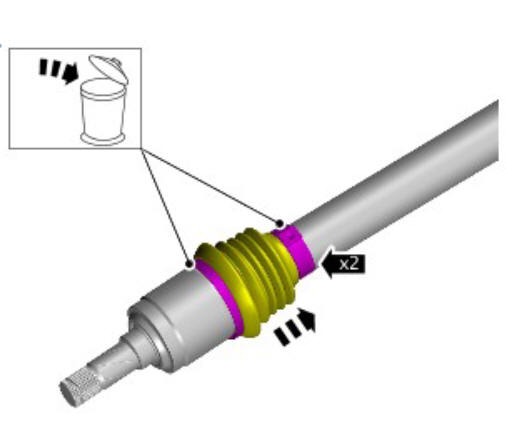

Discard the component.

Rear drive halfshafts inner constant velocity joint boot (G1791656) Removal
