Land Rover Discovery: Rear Drive Axle - Differential - Vehicles without- Active Driveline Differential Draining and Filling (G1775367) / General Procedures

Land Rover Discovery (2009–2016) Service Manual / Chassis / Chassis-Driveline / Rear Drive Axle - Differential - Vehicles without- Active Driveline Differential Draining and Filling (G1775367) / General Procedures

WARNING:

Make sure to support the vehicle with axle stands.

CAUTION:

Make sure the vehicle is on a flat level surface.

Raise and support the vehicle.

NOTE:

Discard the differential case filler plug washer.

Rear drive axle_differential - Vehicles without- Active driveline differential draining and filling (G1775367) General procedures

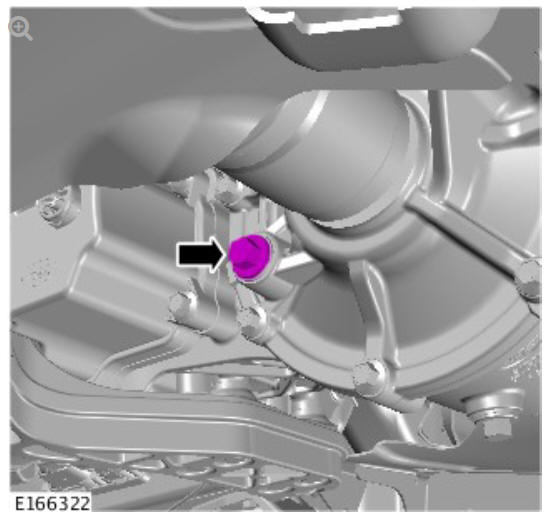

Make sure the vehicle is level. Remove the rear differential case filler plug.

NOTE:

Discard the differential case fluid drain plug washer.

Rear drive axle_differential - Vehicles without- Active driveline differential draining and filling (G1775367) General procedures

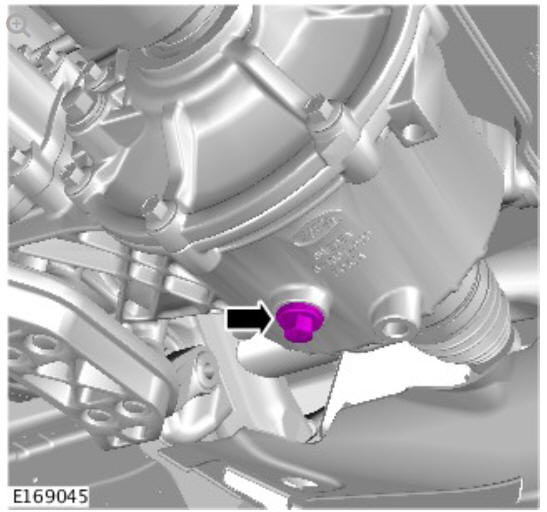

Drain the differential fluid.

CAUTION:

Install a new washer.

Rear drive axle_differential - Vehicles without- Active driveline differential draining and filling (G1775367) General procedures

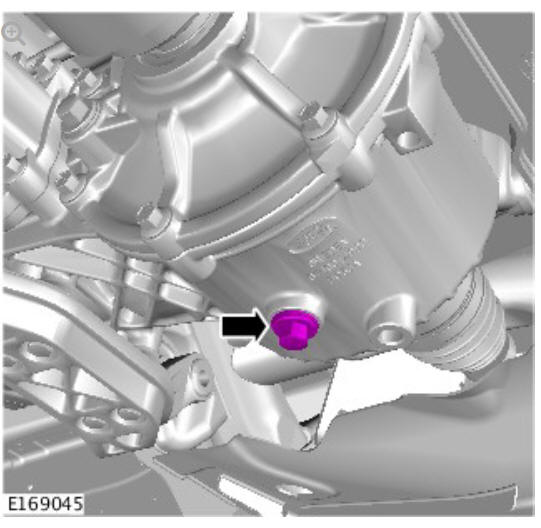

Install the differential case fluid drain plug.

Torque: 34 Nm

Fill the rear differential, until a thin bead of fluid runs from the filler hole.

Refer to: Specifications (205-02A, Specifications).

CAUTION:

Install a new washer.

Rear drive axle_differential - Vehicles without- Active driveline differential draining and filling (G1775367) General procedures

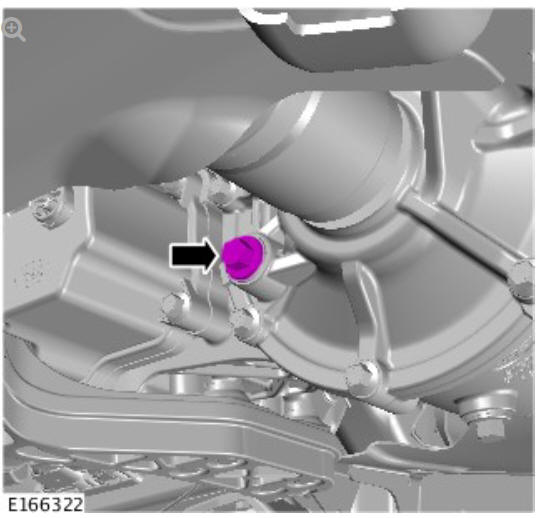

Install the differential case fluid filler plug.

Torque: 34 Nm

Lower the vehicle.
