Land Rover Discovery: Auxiliary Climate Control
Fuel Fired
Booster Heater
Fuel Pump (G1791379)
/ Removal and Installation
REMOVAL
NOTES:
- Removal steps in this procedure may contain installation details.
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety
Precautions (100-00 General Information, Description and
Operation).
Refer to: Diesel Fuel System Health and Safety Precautions (100-00
General Information, Description and Operation).
- Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).

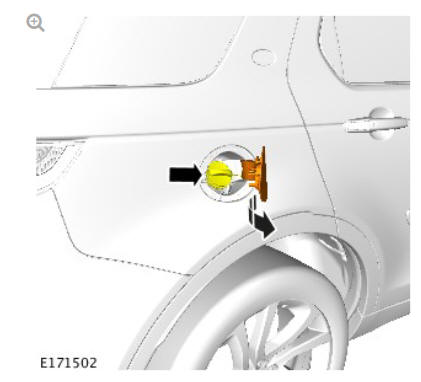

![Auxiliary climate control fuel fired booster heater fuel pump (G1791379) removal and installation](images/books/227/index229(15).jpg)
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
WARNING:
Be prepared to collect escaping fuel.
CAUTION:
Before disconnecting any components, make sure the area is
clean and free from foreign material. When disconnected all
openings must be sealed.

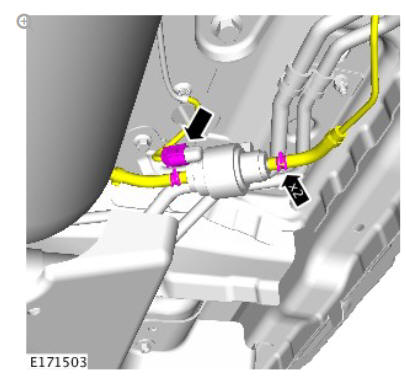

![Auxiliary climate control fuel fired booster heater fuel pump (G1791379) removal and installation](images/books/227/index230(14).jpg)

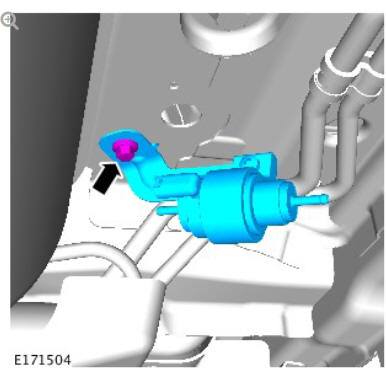

![Auxiliary climate control fuel fired booster heater fuel pump (G1791379) removal and installation](images/books/227/index231(15).jpg)
Torque: 10 Nm
INSTALLATION
- To install, reverse the removal procedure.
Auxiliary climate control fuel fired booster heater receiver unit
(G1429610) removal and installation
REMOVAL
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Parking Aid Module (413-13, Removal and Installation).

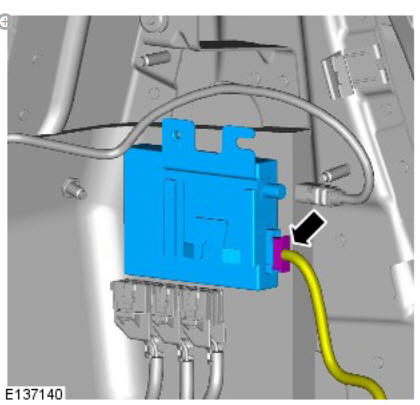

![Auxiliary climate control fuel fired booster heater receiver unit (G1429610) removal and installation](images/books/227/index232(16).jpg)
INSTALLATION
To install, reverse the removal procedure.
