Hydraulic brake actuation brake master cylinder (G1785122) removal and installation

REMOVAL

CAUTION:

If brake fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

NOTE:

Removal steps in this procedure may contain installation details.

All vehicles

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Brake Fluid Reservoir (206-06 Hydraulic Brake Actuation, Removal and Installation).

WARNING:

Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION:

Make sure that all openings are sealed. Use new blanking caps.

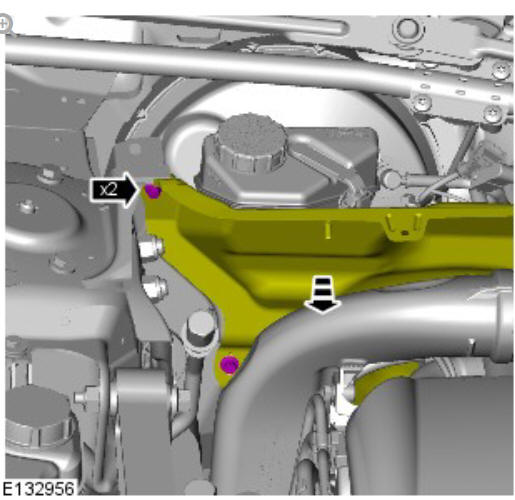

Hydraulic brake actuation brake master cylinder (G1785122) removal and installation

Torque: 17 Nm

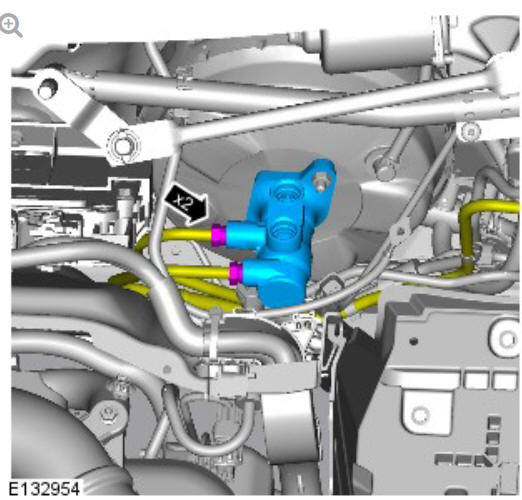

Hydraulic brake actuation brake master cylinder (G1785122) removal and installation

Right-hand drive vehicles

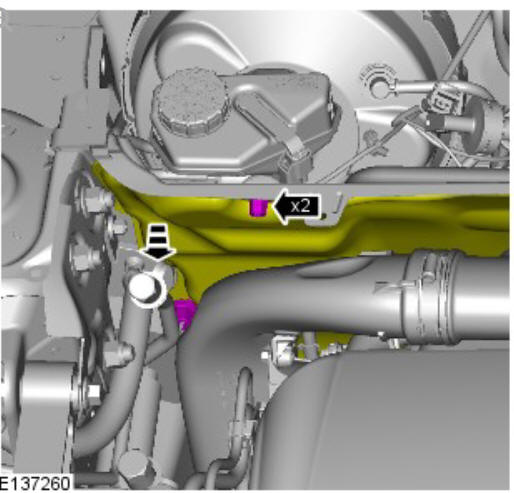

Hydraulic brake actuation brake master cylinder (G1785122) removal and installation

Torque: 10 Nm

All vehicles

CAUTION:

Discard the seal.

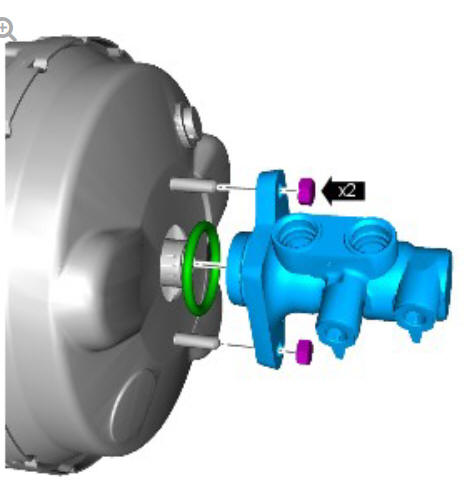

Hydraulic brake actuation brake master cylinder (G1785122) removal and installation

Renew Part: Brake master cylinder seal.

Torque: 25 Nm

INSTALLATION

CAUTION:

A new O-ring seal is to be installed.

To install, reverse the removal procedure.

Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures).
