Land Rover Discovery: Gearshift Cable Adjustment

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Manual Transmission Transaxle and Clutch / Gearshift Cable Adjustment

CAUTION:

Neutral must be selected before the cables are released to allow the cables to be correctly set.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: Air Cleaner (303-12, Removal and Installation).

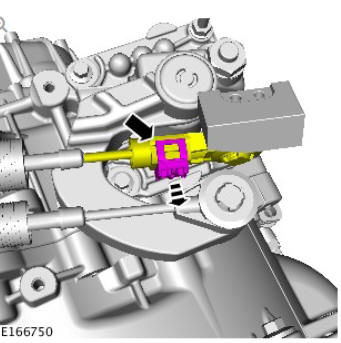

Gearshift cable adjustment

  • Release the LH cable securing clip.
  • Allow the gearshift lever to come to rest in the neutral position.

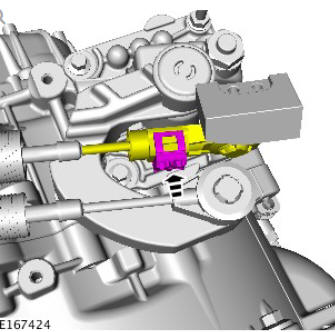

Gearshift cable adjustment

  • Secure the cable selector clip, without disturbing the gearshift selector lever position.
  1. Check the gearshift operation.
  2. If necessary, repeat the above procedure.

Refer to: Air Cleaner (303-12, Removal and Installation).

MANUAL TRANSMISSION TRANSAXLE INPUT SHAFT SEAL (G1353055) REMOVAL AND INSTALLATION

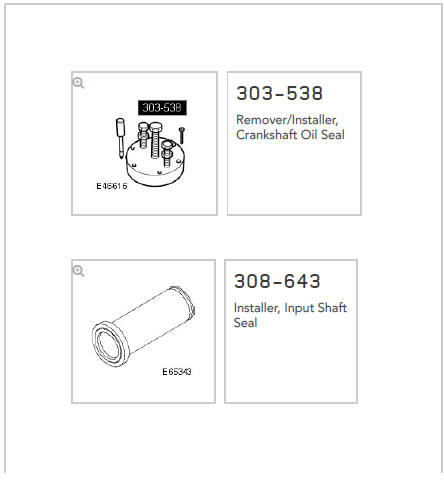

SPECIAL TOOL(S)

MANUAL TRANSMISSION TRANSAXLE INPUT SHAFT SEAL (G1353055) REMOVAL AND INSTALLATION

REMOVAL

Refer to: Clutch Slave Cylinder (308-02, Removal and Installation).

CAUTION:

Take special care to avoid damaging the bearing.

MANUAL TRANSMISSION TRANSAXLE INPUT SHAFT SEAL (G1353055) REMOVAL AND INSTALLATION

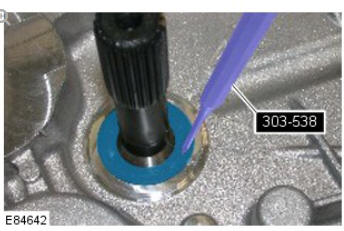

Special Tool(s): 303-538

MANUAL TRANSMISSION TRANSAXLE INPUT SHAFT SEAL (G1353055) REMOVAL AND INSTALLATION

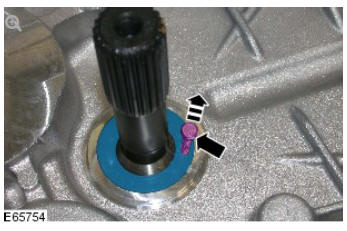

Screw a 2.5 x 15 mm self-tapping screw, a maximum of 2 turns into the input shaft seal and remove the seal using a pair of pliers.

INSTALLATION

  1. Apply adhesive tape over the splines of the input shaft to prevent the input shaft oil seal being damaged.

MANUAL TRANSMISSION TRANSAXLE INPUT SHAFT SEAL (G1353055) REMOVAL AND INSTALLATION

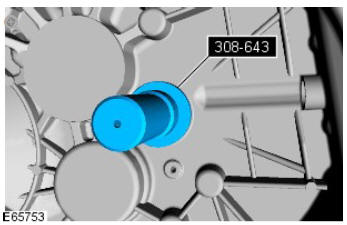

Special Tool(s): 308-643

Remove the adhesive tape.

Refer to: Clutch Slave Cylinder (308-02, Removal and Installation).
