Land Rover Discovery: Front Row Seat Cushion Cover - Vehicles with- power Seats (G1780407) - Removal

Land Rover Discovery (2009–2016) Service Manual / Body / Seating / Front Row Seat Cushion Cover - Vehicles with- power Seats (G1780407) / Front Row Seat Cushion Cover - Vehicles with- power Seats (G1780407) - Removal

Removal

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Refer to: Front Seat - Vehicles With: Power Seats (501-10, Removal and Installation).

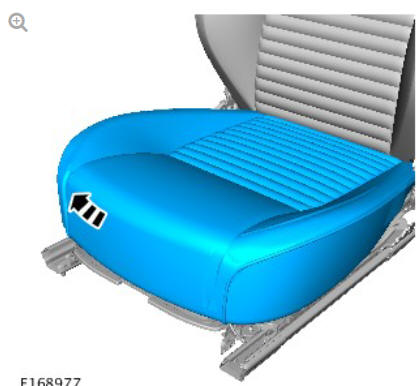

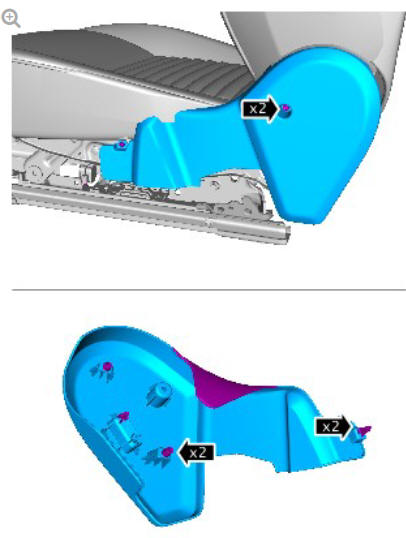

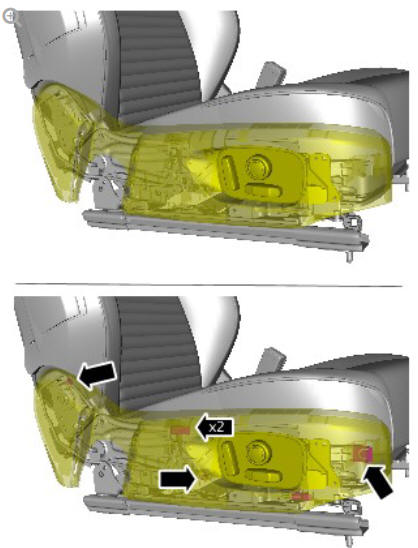

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

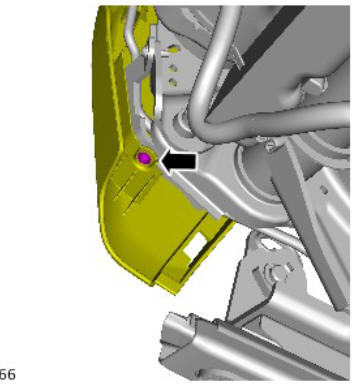

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

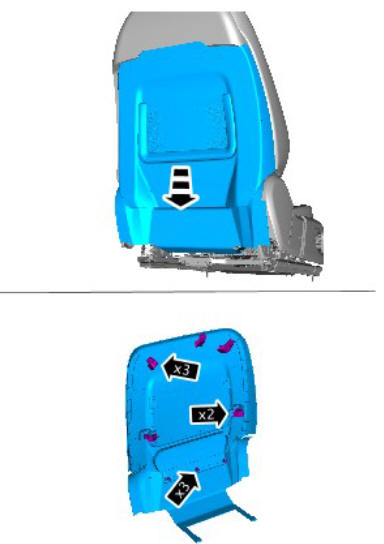

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

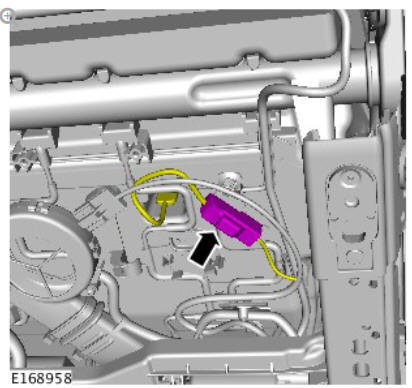

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

NOTE:

RH illustration shown, LH is similar.

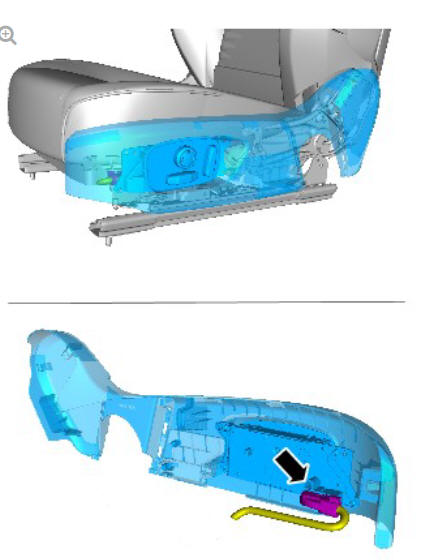

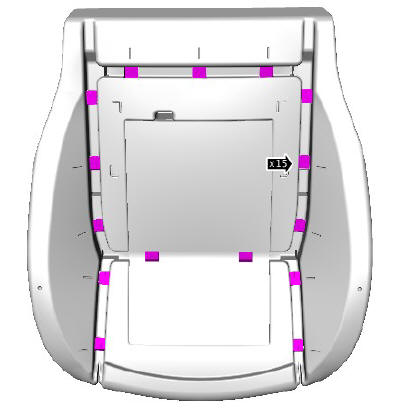

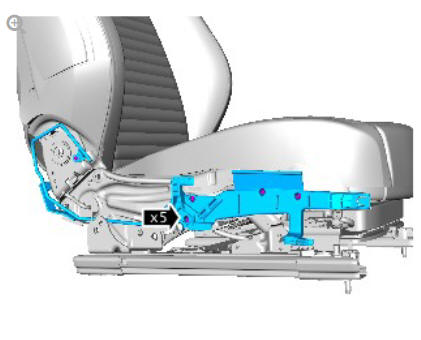

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

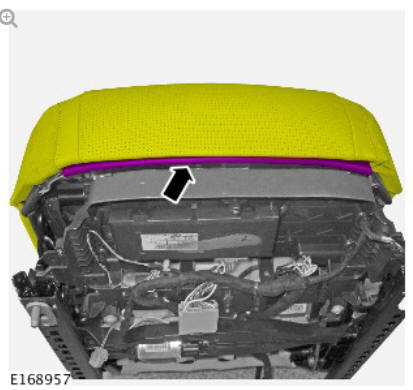

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

NOTE:

LH illustration shown, RH is similar.

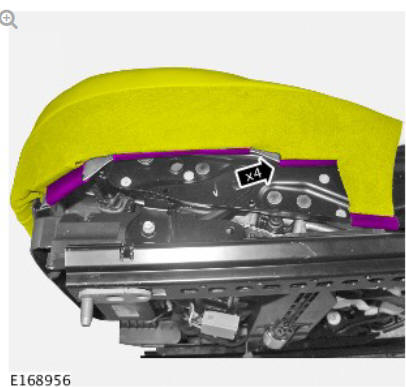

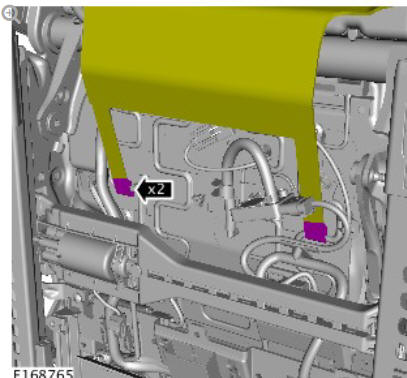

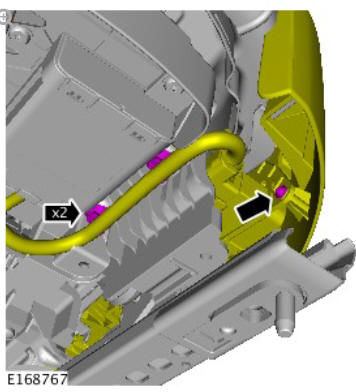

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

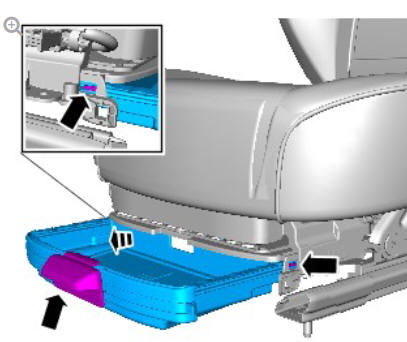

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

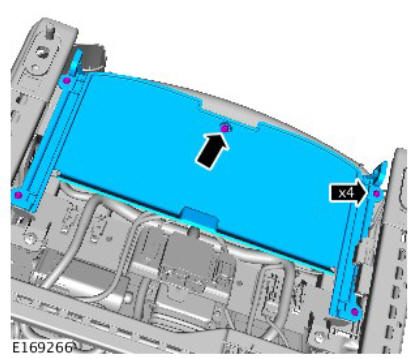

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

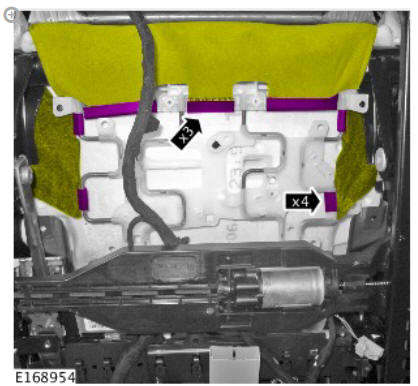

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

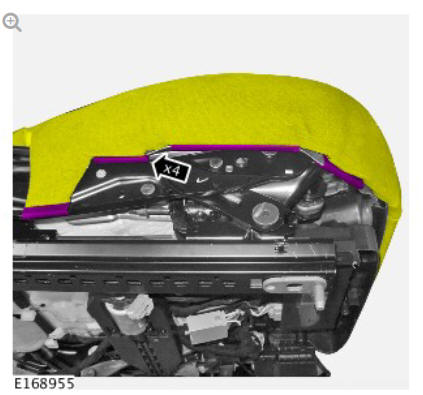

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

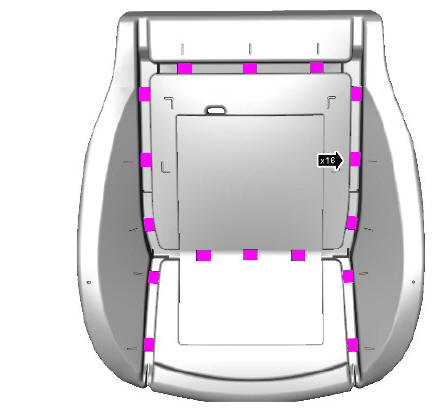

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

Vehicles without climate control.

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal

Vehicles with climate control.

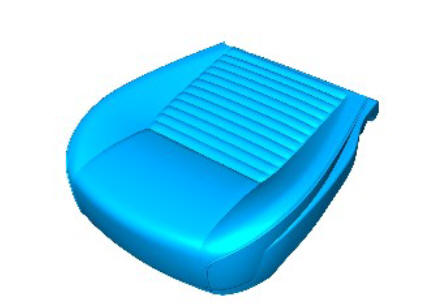

Front row seat cushion cover - vehicles with- power seats (G1780407) - Removal
