Installation

NOTES:

  • Make sure that new hog rings are installed.

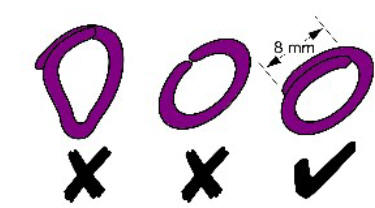

  • Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

Front row seat cushion cover - vehicles with- power seats (G1780407) - Installation

NOTE:

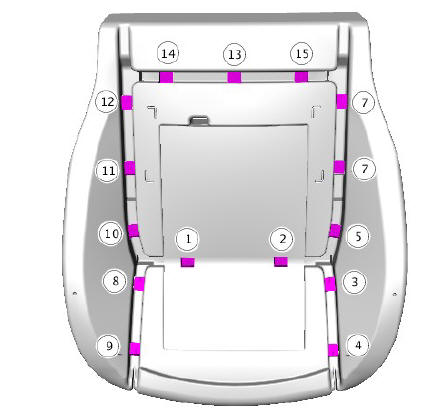

Make sure that the hogrings are installed in the sequence shown.

Front row seat cushion cover - vehicles with- power seats (G1780407) - Installation

Vehicles without climate control.

NOTE:

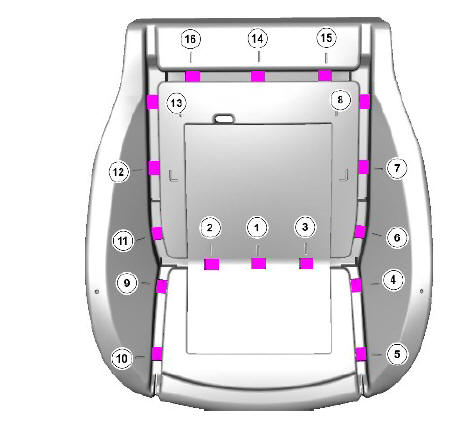

Make sure that the hogrings are installed in the sequence shown.

Front row seat cushion cover - vehicles with- power seats (G1780407) - Installation

Vehicles with climate control.

To install, reverse the removal procedure.

Front row seat driver cushion heater element - vehicles with- power seats (G1780410) removal and installation

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

Refer to: Front Seat Cushion Cover - Vehicles With: Power Seats (501-10, Removal and Installation).

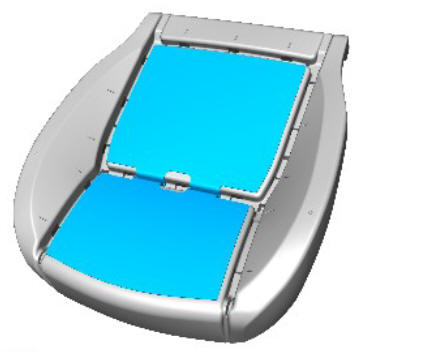

Front row seat driver cushion heater element - vehicles with- power seats (G1780410) removal and installation

INSTALLATION

To install, reverse the removal procedure.
