Land Rover Discovery: Front end Sheet Metal
Repairs Fender
Apron Panel
Front Section (G1775681)
- Installation
Installation
- Dress flanges where necessary.
- Remove the spot welds from the new fender apron panel as
indicated.
- Carefully separate the fender apron panel from the reinforcement.

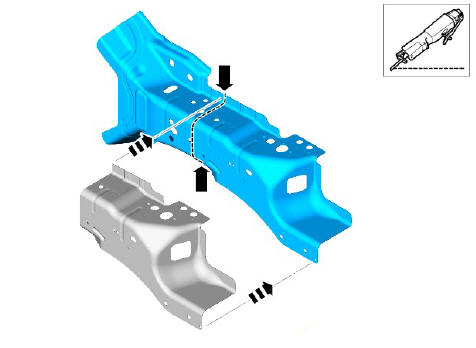

- Mark, measure and cut the new fender apron panel reinforcement
as indicated.
- Offer up the new fender apron panel reinforcement and clamp into
position. Check alignment if correct proceed to next step, if not,
rectify and recheck before proceeding.

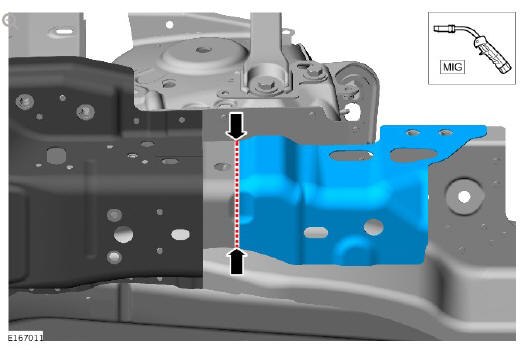

- MIG weld the fender apron panel reinforcement butt joint as
indicated.
- Dress the weld.

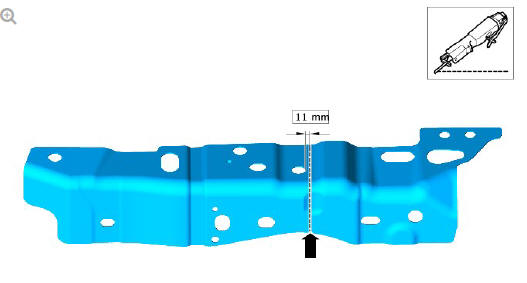

- Using the old fender apron panel as a guide mark, measure and cut the
new fender apron panel as indicated.
- Offer up the new fender apron panel front section and clamp into
position. Check alignment if correct proceed to next step, if not,
rectify and recheck before proceeding.

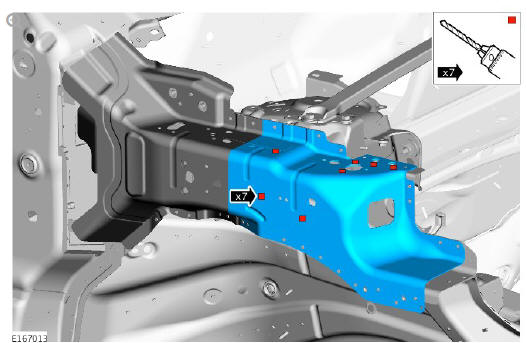

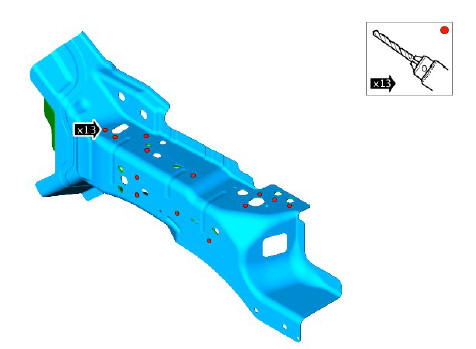

- Drill holes where MIG plug welds are to be installed as indicated.
- Remove the fender apron panel.
- Deburr the drilled holes.
- Clean and prepare the panel surfaces.
- Offer up the new fender apron panel front section and clamp into
position. Check alignment if correct proceed to next step, if not,
rectify and recheck before proceeding.

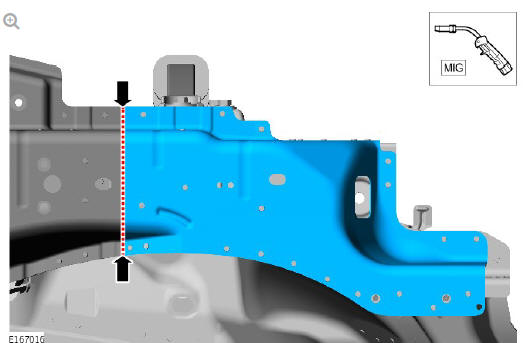

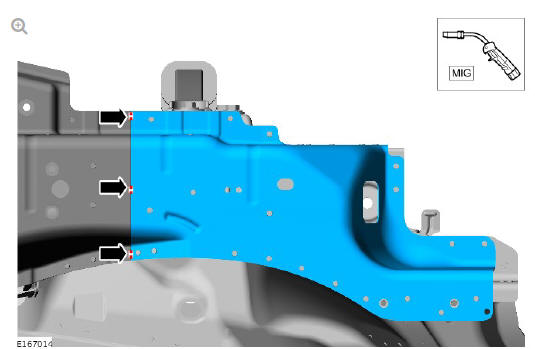

- Tack MIG weld the fender apron panel front section butt joint as
indicated.

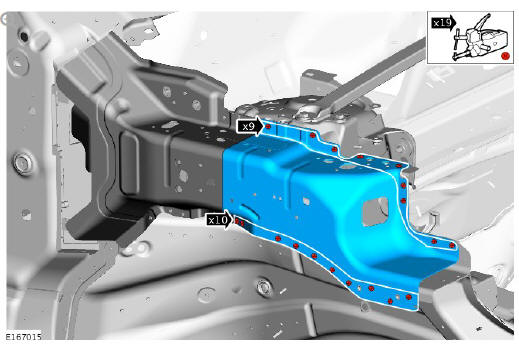

- Install the spot welds as indicated.
- MIG weld the butt joint as indicated.
- Dress all welds.
- Make sure that any open or exposed panel joints are correctly
sealed.
- Make sure corrosion protection is applied to all areas affected by
repair.
- The installation of associated panels and components is the reversal
of removal procedure.
