Land Rover Discovery: Four-Wheel Drive Systems - Vehicles With- Active Driveline Transfer Case Draining and Filling (G1964387) General Procedures
DRAINING
WARNING:
Make sure to support the vehicle with axle stands.
CAUTION:
Make sure the vehicle is on a flat level surface.
Raise and support the vehicle.
Remove the engine undershield.
Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
CAUTION:
Make sure that the area around the component is clean and free of foreign material.
.jpg)

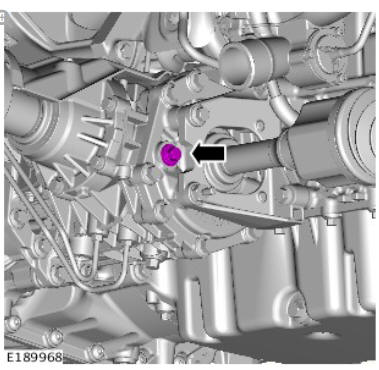

Remove the filler plug.
WARNING:
Be prepared to collect escaping fluid.
NOTE:
Drain the fluid into a suitable container.
.jpg)

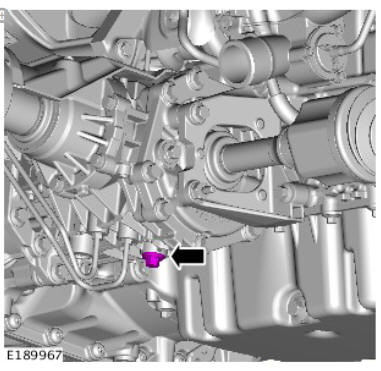

Remove the drain plug.
NOTE:
Install a new sealing washer.
.jpg)

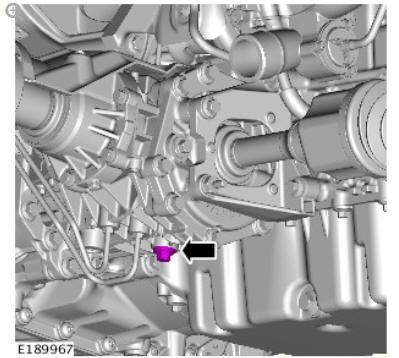

- Install the drain plug.
Torque: 35 Nm
FILLING
CAUTION:
Do not overfill the transfer case.
Fill the transfer case with 400 ml of fluid Refer to: Specifications (308-07C Transfer Case - Vehicles With: M66 6-Speed Manual Transmission AWD/9HP48 9-Speed Automatic Transmission - AWD, Specifications).
NOTE:
Install a new sealing washer.
.jpg)

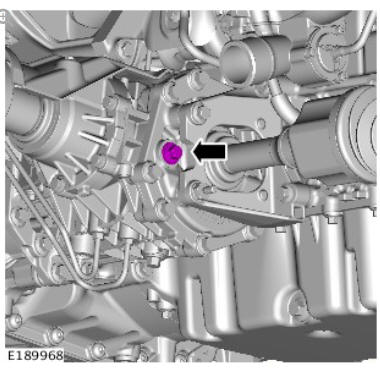

- Install the filler plug.
Torque: 35 Nm
Install the engine undershield.
Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).
