Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Flywheel (G1875896) / Removal and
Installation
REMOVAL
Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Refer to: Clutch Disc and Pressure Plate - INGENIUM I4 2.0L Diesel,
Vehicles With: M66 6-Speed Manual Transmission AWD (308-01
Clutch, Removal and Installation).
Refer to: Clutch Disc and Pressure Plate - INGENIUM I4 2.0L Diesel,
Vehicles With: M66 6-Speed Manual Transmission FWD (308-01
Clutch, Removal and Installation).

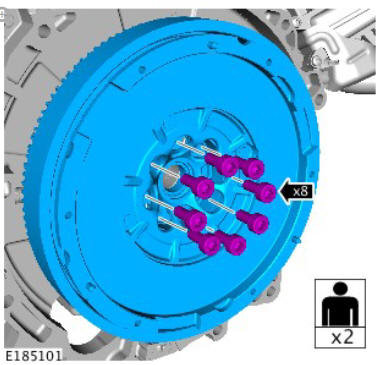

WARNING:
This step requires the aid of another technician.
CAUTION:
Discard the bolts.
.jpg)
INSTALLATION
.jpg)

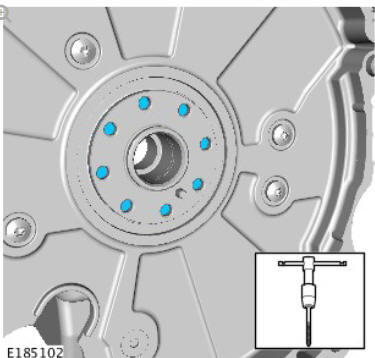

- Using a M10 x 1.0-6H tap, clean out the threaded holes.
- Using suitable brake cleaner, remove any foreign material
from the threads.
WARNING:
This step requires the aid of another technician.

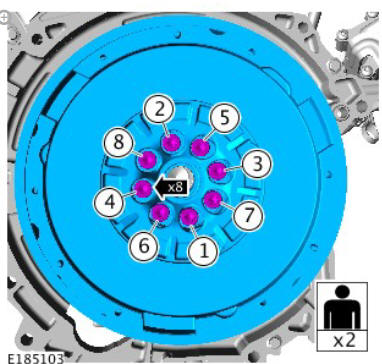

CAUTIONS:
- Make sure that the mating faces are clean and free of
foreign material.
- Make sure that new bolts are installed.
- Tighten the bolts in the sequence shown.
.jpg)
Torque:
Stage 1: 30 Nm
Stage 2: 120º
Refer to: Clutch Disc and Pressure Plate - INGENIUM I4 2.0L Diesel,
Vehicles With: M66 6-Speed Manual Transmission AWD (308-01
Clutch, Removal and Installation).
Refer to: Clutch Disc and Pressure Plate - INGENIUM I4 2.0L Diesel,
Vehicles With: M66 6-Speed Manual Transmission FWD (308-01
Clutch, Removal and Installation).
Connect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
Engine - Ingenium i4 2.0l Diesel Hydraulic Valve Tappet (G1875897) Removal
and Installation
REMOVAL
CAUTION:
Before disconnecting any components, make sure the area is clean
and free from foreign material. When disconnected all openings must
be sealed.
NOTE:
Removal steps in this procedure may contain installation details.
Refer to: Valve Cover (303-01B, Removal and Installation).

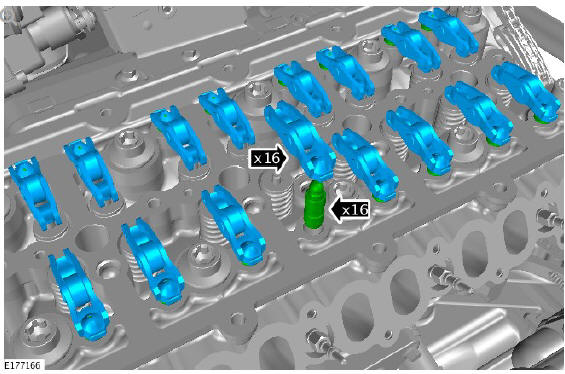

CAUTION:
Remove and store roller finger cam followers and hydraulic
valve tappets in the fitted order and invert to prevent oil loss.
Do not squeeze hydraulic valve tappet chambers together.
.jpg)

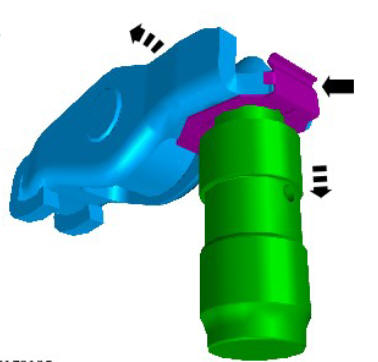

CAUTIONS:
- Check roller finger cam followers and hydraulic valve
tappets for signs of wear, scoring and overheating.
- Make sure oil holes in the hydraulic valve tappets are clear.
- Care must be taken not to damage the retention clip.
.jpg)
INSTALLATION

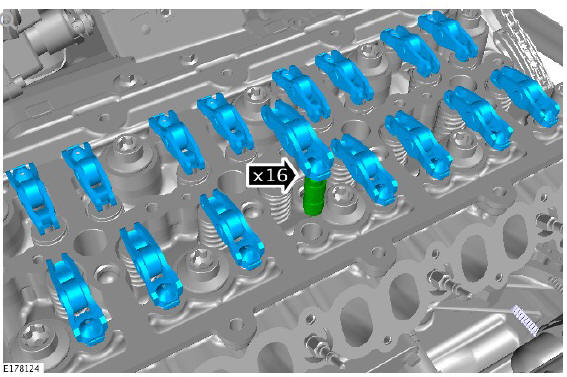

CAUTIONS:
- Lubricate hydraulic valve tappets, roller finger cam
followers and hydraulic valve tappet bores with engine oil.
- Install hydraulic valve tappets and roller finger cam
followers to the original fitted order.
- Make sure the retention clip on the roller finger cam
follower has engaged and installed correctly to the
hydraulic valve tappet.
- Make sure roller finger cam follower is located correctly on
the valve tip between the two guidance arms.
.jpg)
Refer to: Valve Cover (303-01B, Removal and Installation).
