Land Rover Discovery: Engine - Ingenium i4 2.0l Diesel Lower Timing Chain (G1875890) / Removal

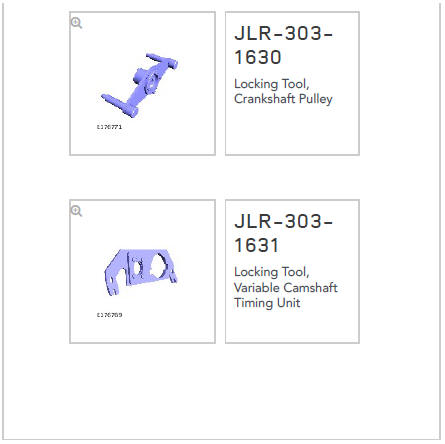

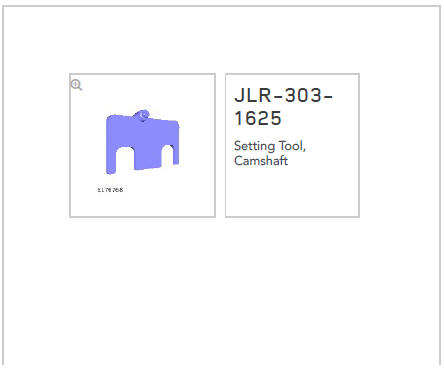

SPECIAL TOOL(S)

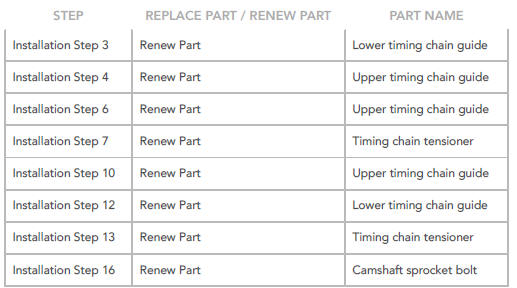

PART(S)
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Some components shown removed for clarity.
Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Remove the upper timing cover.
Refer to: Upper Timing Cover (303-01B Engine - INGENIUM I4 2.0L
Diesel, Removal and Installation).
Remove the lower timing cover.
Refer to: Lower Timing Cover (303-01B Engine - INGENIUM I4 2.0L
Diesel, Removal and Installation).

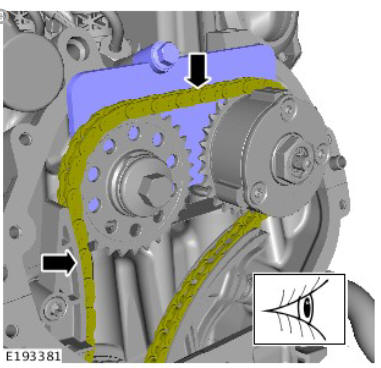

CAUTION:
Make sure the camshaft timing marks are positioned as
illustrated.

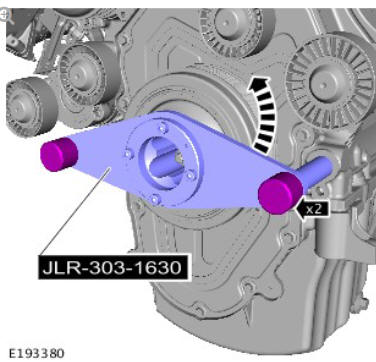

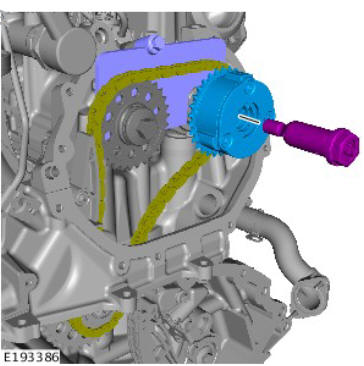

- Using the special crankshaft pulley tool, rotate the crankshaft
until the camshaft locking tool can be installed.
Special Tool(s): JLR-303-1630

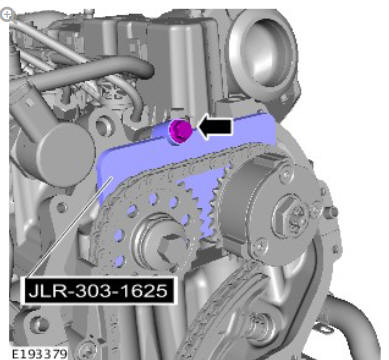

Special Tool(s): JLR-303-1625
Torque: 10 Nm
- Rotate the crankshaft counter-clockwise.
Special Tool(s): JLR-303-1630
NOTE:
The timing chain will not be under tension in the positions
illustrated.

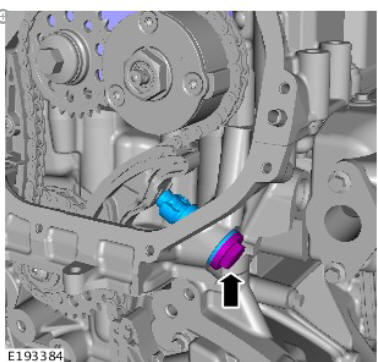

Torque: 10 Nm

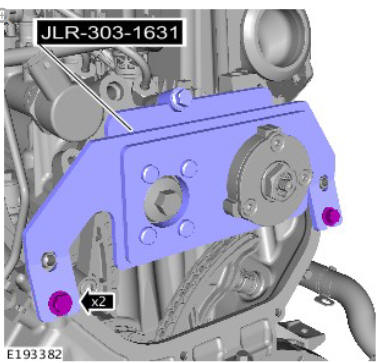

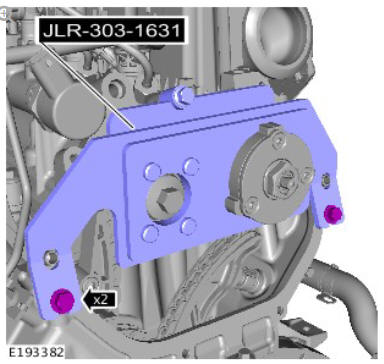

Special Tool(s): JLR-303-1631

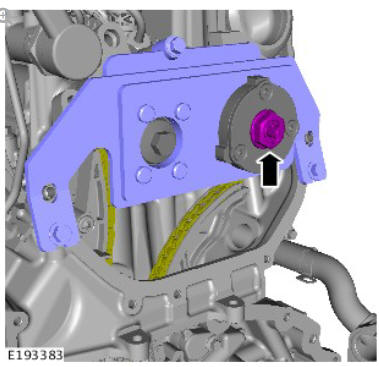

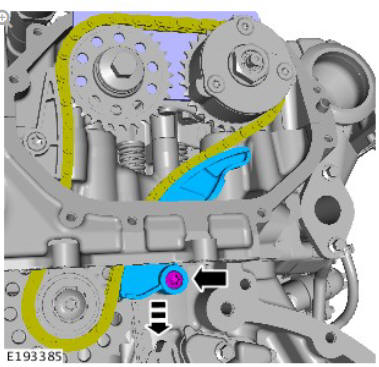

Loosen, but do not fully remove the bolt.
Special Tool(s): JLR-303-1631

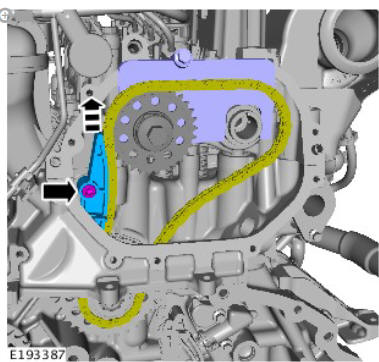

Remove and discard the hydraulic timing chain tensioner

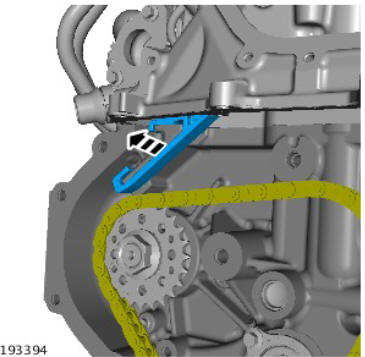

Remove and discard the timing chain guide.

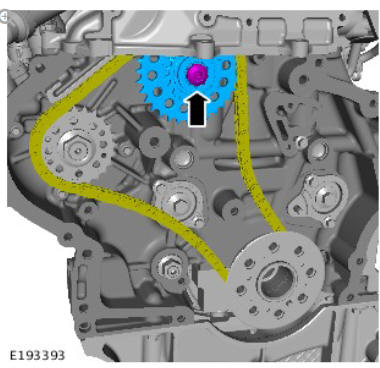

- Remove the camshaft sprocket.
- Discard the bolt.
Remove and discard the timing chain guide.

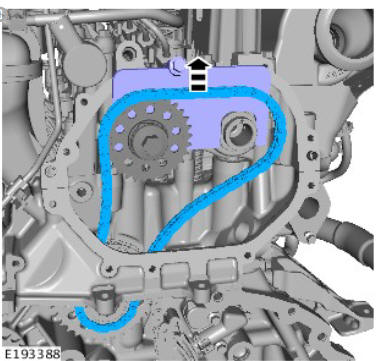

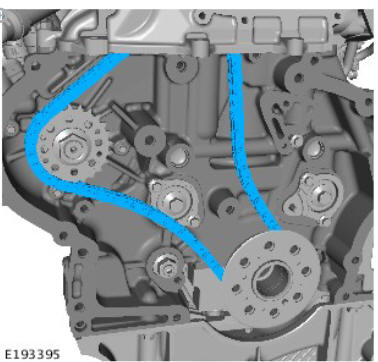

Remove the timing chain.

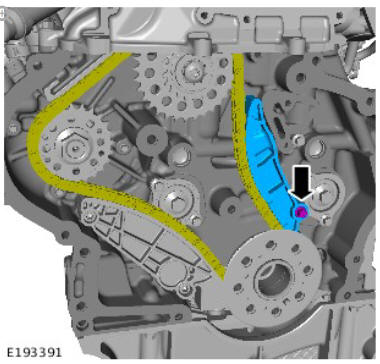

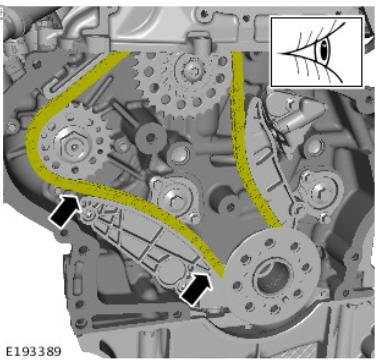

NOTE:
The timing chain will not be under tension in the positions
illustrated.

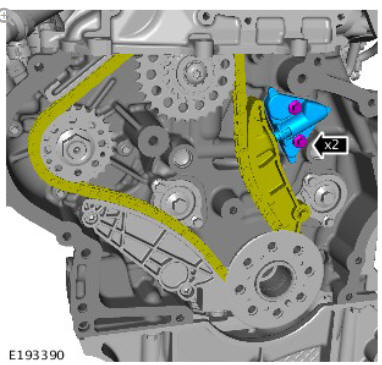

Remove and discard the hydraulic timing chain tensioner.

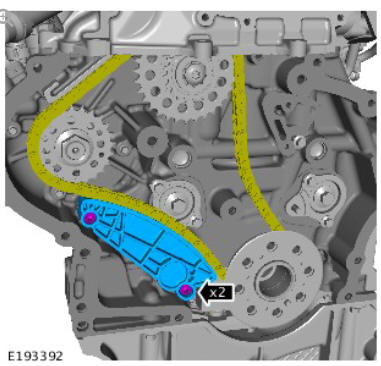

Remove and discard the timing chain guide.
Remove and discard the timing chain guide.
Remove and discard the timing chain guide.
Remove the timing chain.
