Land Rover Discovery: Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Engine / Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

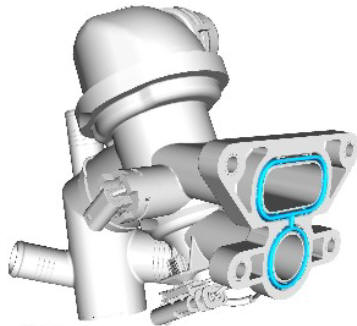

PART(S)

PART(S)

REMOVAL

NOTES:

  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Radiator (303-03B Engine Cooling - INGENIUM I4 2.0L Diesel, Removal and Installation).

CAUTION:

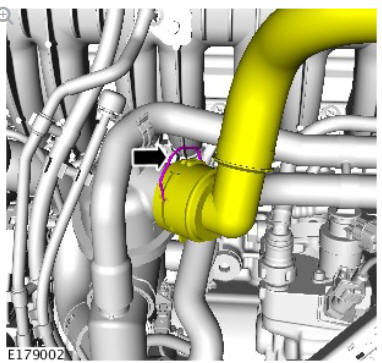

Be prepared to collect escaping coolant.

Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

CAUTION:

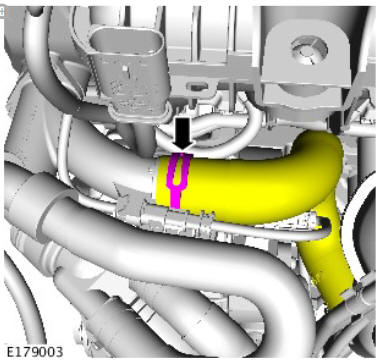

Be prepared to collect escaping coolant.

Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

CAUTION:

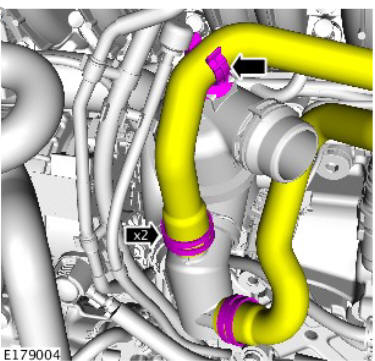

Be prepared to collect escaping coolant.

Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

CAUTION:

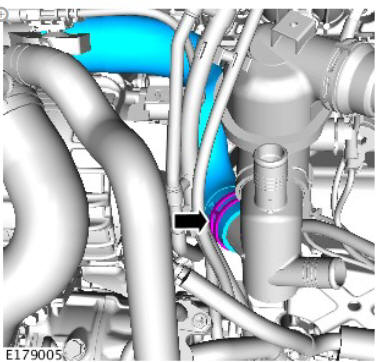

Be prepared to collect escaping coolant.

Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

CAUTION:

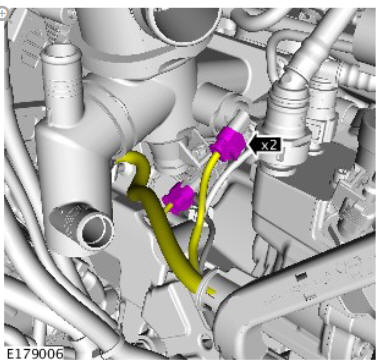

Be prepared to collect escaping coolant.

Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

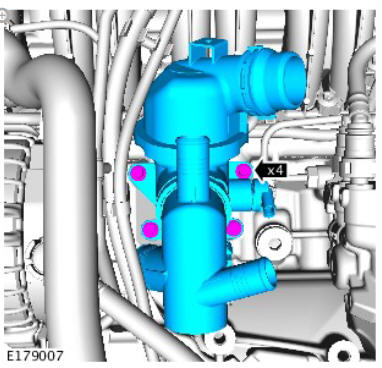

Torque: 12 Nm

NOTE:

Remove and discard the gasket.

Engine Cooling - Ingenium i4 2.0l Diesel Thermostat (G1879555) / Removal and Installation

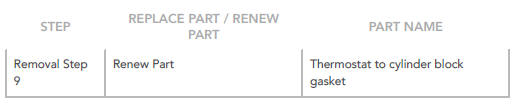

Renew Part: Thermostat to cylinder block gasket.

INSTALLATION

CAUTION:

Install a new gasket.

To install, reverse the removal procedure.
