Land Rover Discovery: Torque Converter Seal - Ingenium i4 2.0l Diesel (G1894394) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Automatic Transmission  Transaxle / Torque Converter Seal - Ingenium i4 2.0l Diesel (G1894394) / Removal and Installation

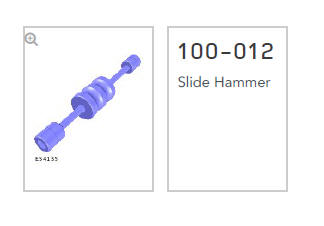

SPECIAL TOOL(S)

Torque Converter Seal - Ingenium i4 2.0l Diesel (G1894394) Removal and Installation

Torque Converter Seal - Ingenium i4 2.0l Diesel (G1894394) Removal and Installation

REMOVAL

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Refer to: Torque Converter - INGENIUM I4 2.0L Diesel (307-01 Automatic Transmission/Transaxle, Removal and Installation).

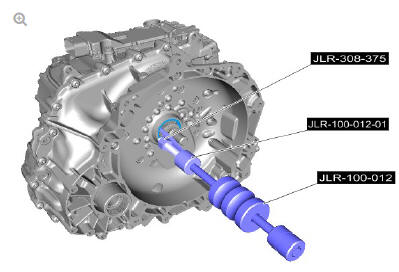

CAUTIONS:

  • Care must be taken when removing the seal. Failure to follow this instruction may cause damage to the components.
  • Make sure that extreme cleanliness is observed with the following steps.
  • Make sure that the tools and equipment are clean, free of foreign material and lubricant.

Torque Converter Seal - Ingenium i4 2.0l Diesel (G1894394) Removal and Installation

INSTALLATION

CAUTIONS:

  • Make sure a new oil seal is installed.
  • Make sure that the tools and equipment are clean, free of foreign material and lubricant.
  • Make sure that all the component mating faces are clean

Torque Converter Seal - Ingenium i4 2.0l Diesel (G1894394) Removal and Installation

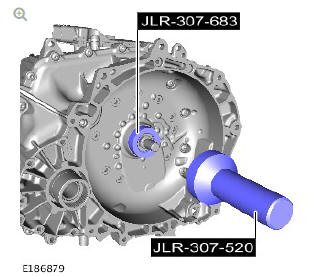

  • Special Tool(s): 307-520, JLR-307-683

Refer to: Torque Converter - INGENIUM I4 2.0L Diesel (307-01 Automatic Transmission/Transaxle, Removal and Installation).

Carry out a transmission fluid level check.

Refer to: Transmission Fluid Level Check (307-01 Automatic Transmission/Transaxle, General Procedures).
