Land Rover Discovery: Third Row Seat (G1808245)
/ Removal and Installation
REMOVAL
NOTES:
- Some variation in the illustrations may occur, but the essential
information is always correct.
- Removal steps in this procedure may contain installation details.
Disconnect the ground cable.
Refer to: Specifications (414-01, Specifications).

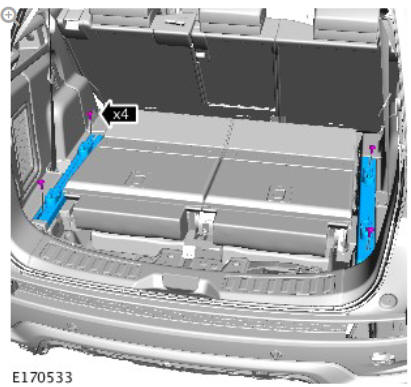

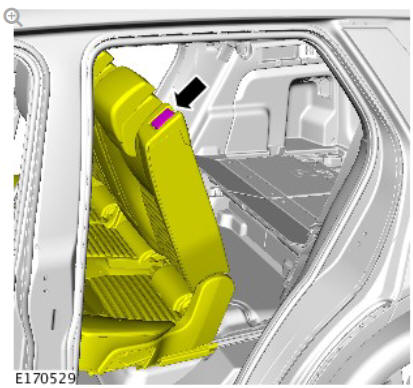

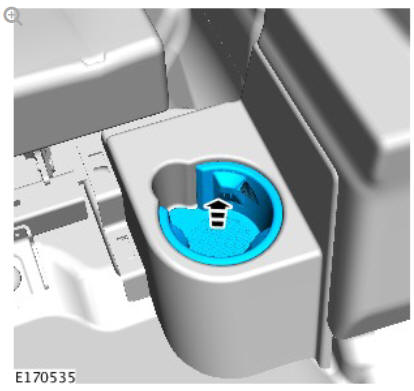

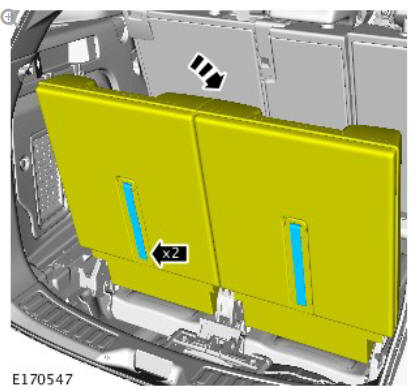

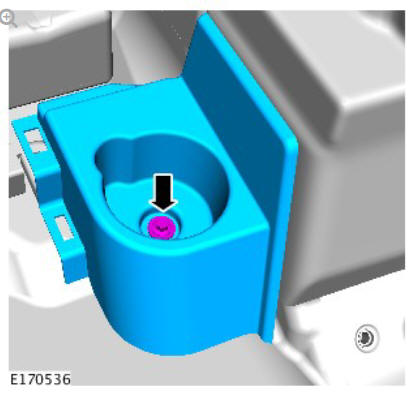

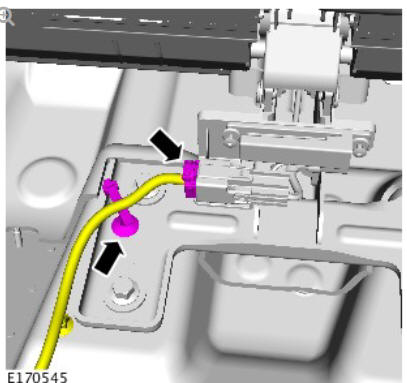

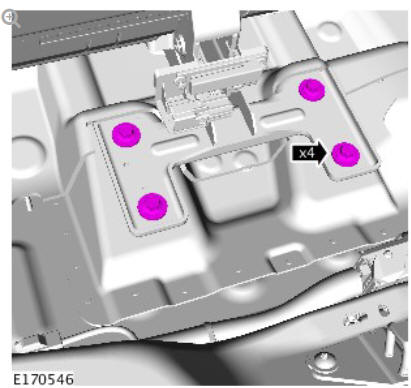

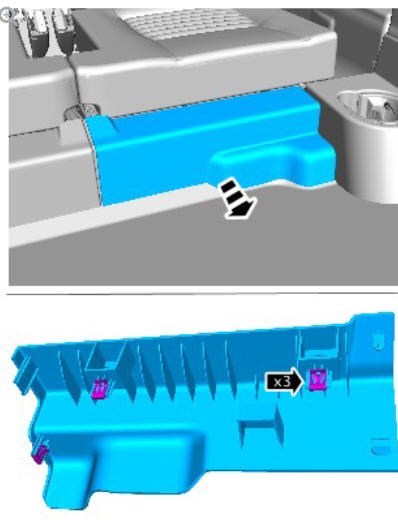

![Third row seat (G1808245) removal and installation](images/books/227/index(16).70.jpg)

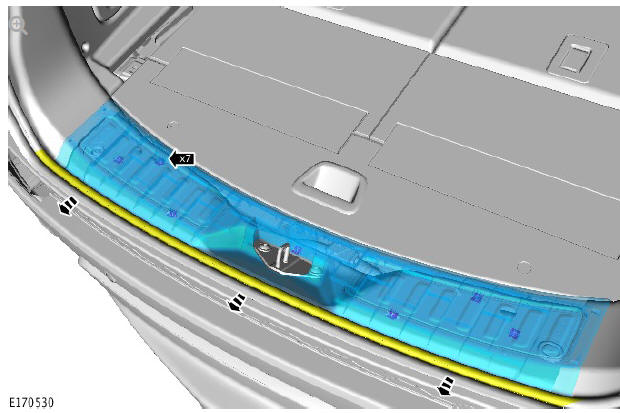

![Third row seat (G1808245) removal and installation](images/books/227/index(14).71.jpg)

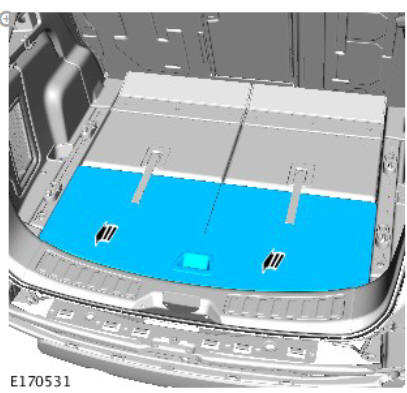

![Third row seat (G1808245) removal and installation](images/books/227/index(15).72.jpg)

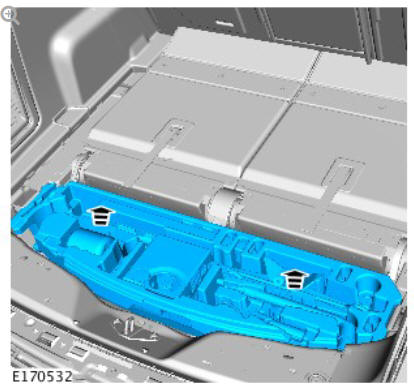

![Third row seat (G1808245) removal and installation](images/books/227/index(13).73.jpg)
![Third row seat (G1808245) removal and installation](images/books/227/index(14).74.jpg)
Torque: 25 Nm

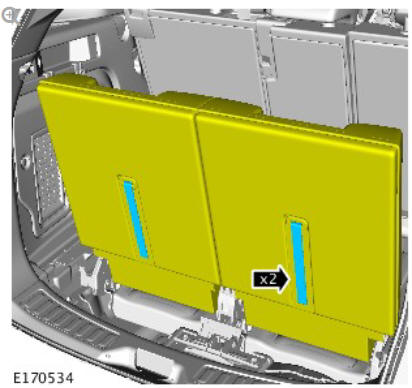

![Third row seat (G1808245) removal and installation](images/books/227/index(14).75.jpg)
![Third row seat (G1808245) removal and installation](images/books/227/index(14).76.jpg)

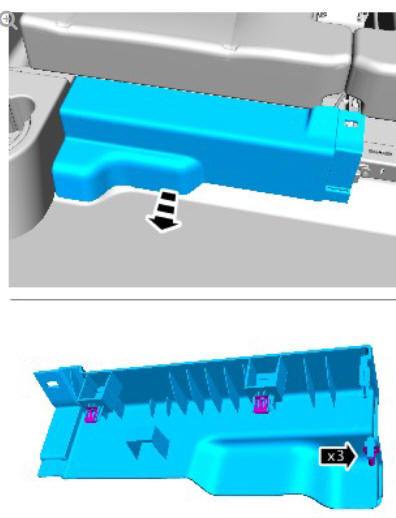

![Third row seat (G1808245) removal and installation](images/books/227/index(14).77.jpg)
![Third row seat (G1808245) removal and installation](images/books/227/index(14).78.jpg)
![Third row seat (G1808245) removal and installation](images/books/227/index(14).79.jpg)
Torque: 10 Nm

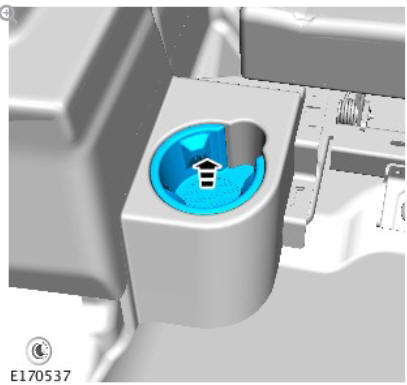

![Third row seat (G1808245) removal and installation](images/books/227/index(14).80.jpg)

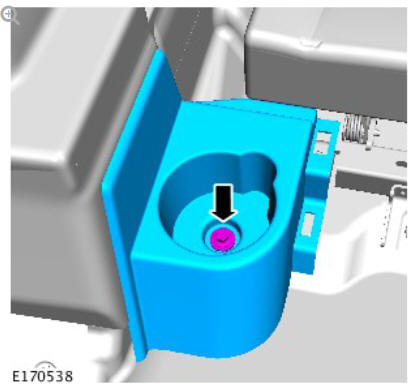

![Third row seat (G1808245) removal and installation](images/books/227/index(14).81.jpg)
Torque: 10 Nm

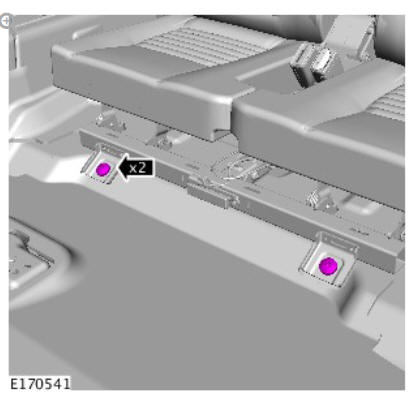

![Third row seat (G1808245) removal and installation](images/books/227/index(13).82.jpg)
Torque: 40 Nm
NOTE:
Repeat the step for the other side.

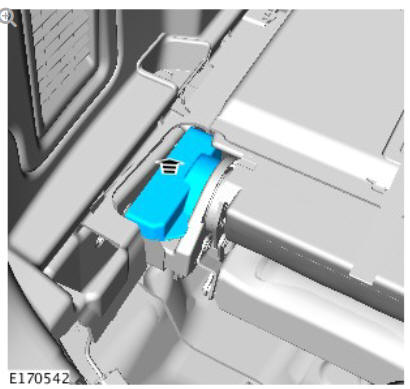

![Third row seat (G1808245) removal and installation](images/books/227/index(13).83.jpg)

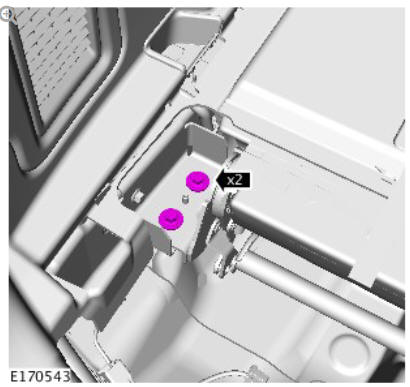

![Third row seat (G1808245) removal and installation](images/books/227/index(14).84.jpg)
Torque: 40 Nm

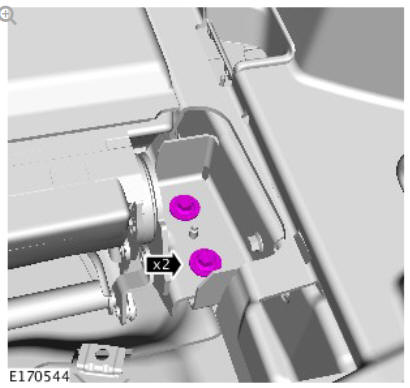

![Third row seat (G1808245) removal and installation](images/books/227/index(14).85.jpg)
Torque: 40 Nm
![Third row seat (G1808245) removal and installation](images/books/227/index(14).86.jpg)
![Third row seat (G1808245) removal and installation](images/books/227/index(14).87.jpg)
![Third row seat (G1808245) removal and installation](images/books/227/index(14).88.jpg)
Torque: 40 Nm
WARNING:
This step requires the aid of another technician.
CAUTIONS:
- Take extra care not to damage the surrounding
components.
- Make sure to protect the paintwork.

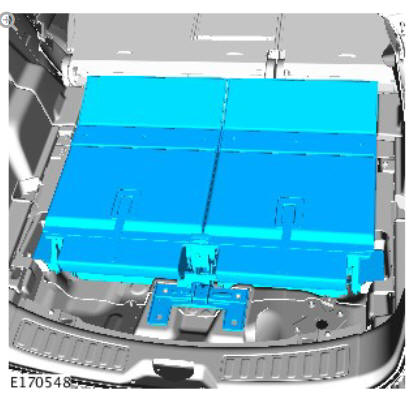

![Third row seat (G1808245) removal and installation](images/books/227/index(14).89.jpg)
INSTALLATION
- To install, reverse the removal procedure.
