Land Rover Discovery: Seats

PRINCIPLES OF OPERATION

For a detailed description of the Seats, refer to the relevant Description and Operation section in the workshop manual. REFER to: Seats (501-10 Seating, Description and Operation).

INSPECTION AND VERIFICATION

CAUTION:

Diagnosis by substitution from a donor vehicle is NOT acceptable.

Substitution of control modules does not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor vehicle.

NOTES:

  • If a control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the Warranty Policy and Procedures manual, or determine if any prior approval programme is in operation, prior to the installation of a new module/component.
  • When performing voltage or resistance tests, always use a digital multimeter that has the resolution ability to view 3 decimal places.

    For example, on the 2 volts range can measure 1mV or 2 K Ohm range can measure 1 Ohm. When testing resistance always take the resistance of the digital multimeter leads into account.

  • Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.
  1. Verify the customer concern

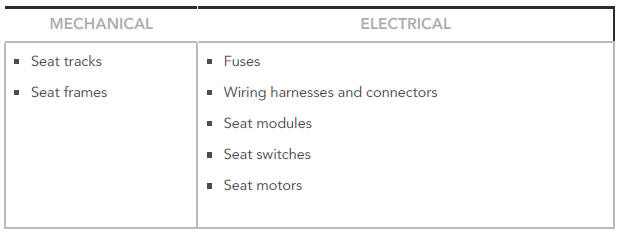

  2. Visually inspect for obvious signs of damage and system integrity

Visual Inspection

Visual Inspection

  1. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step
  2. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index
  3. Check DDW for open campaigns. Refer to the corresponding bulletins and SSMs which may be valid for the specific customer complaint and carry out the recommendations as required

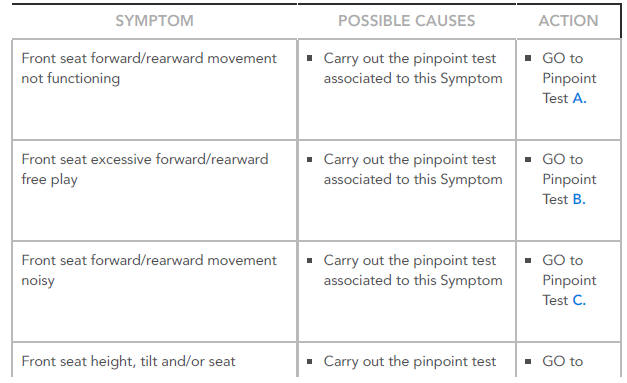

SYMPTOM CHART

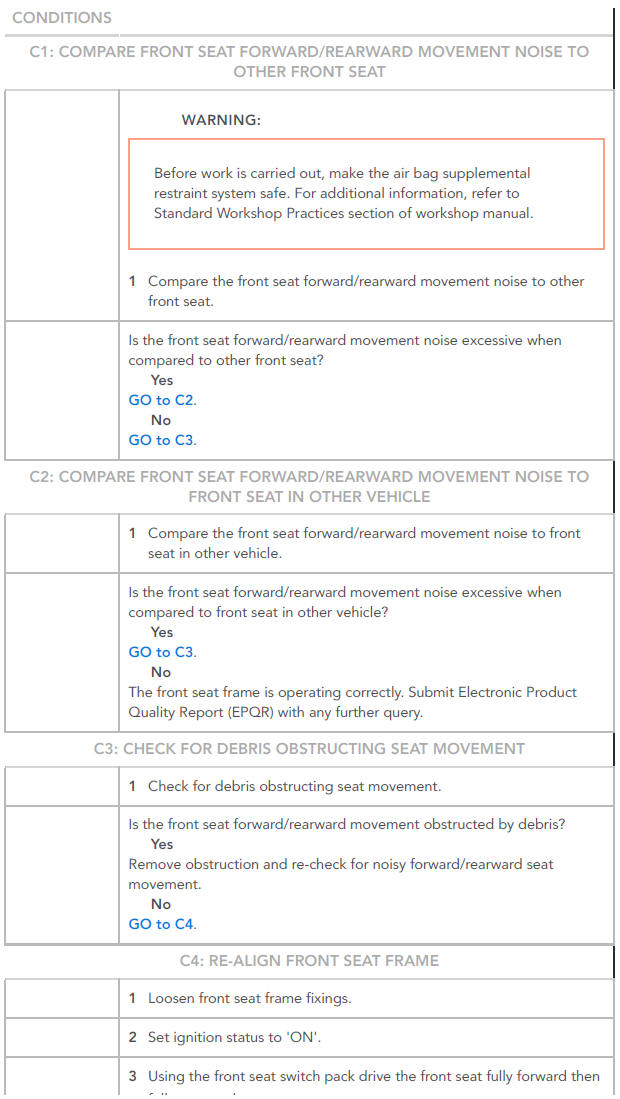

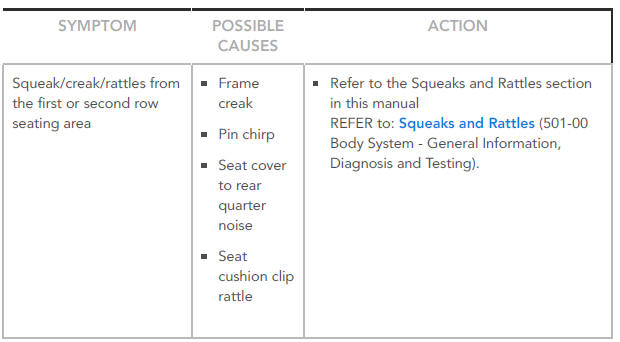

Squeaks, Creaks & Rattles

Squeaks, Creaks & Rattles

Seat Movement

Seat Movement

Seat Movement

PINPOINT TESTS

WARNING:

When carrying out the following steps, stand clear of all moving parts and ensure link harness is routed accordingly.

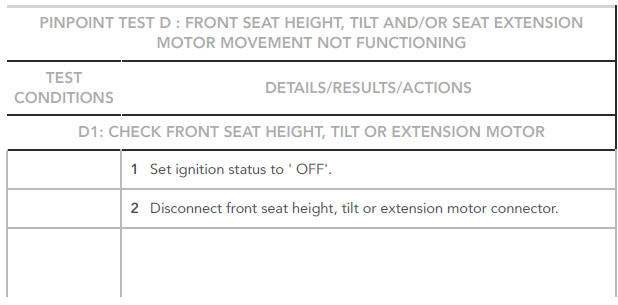

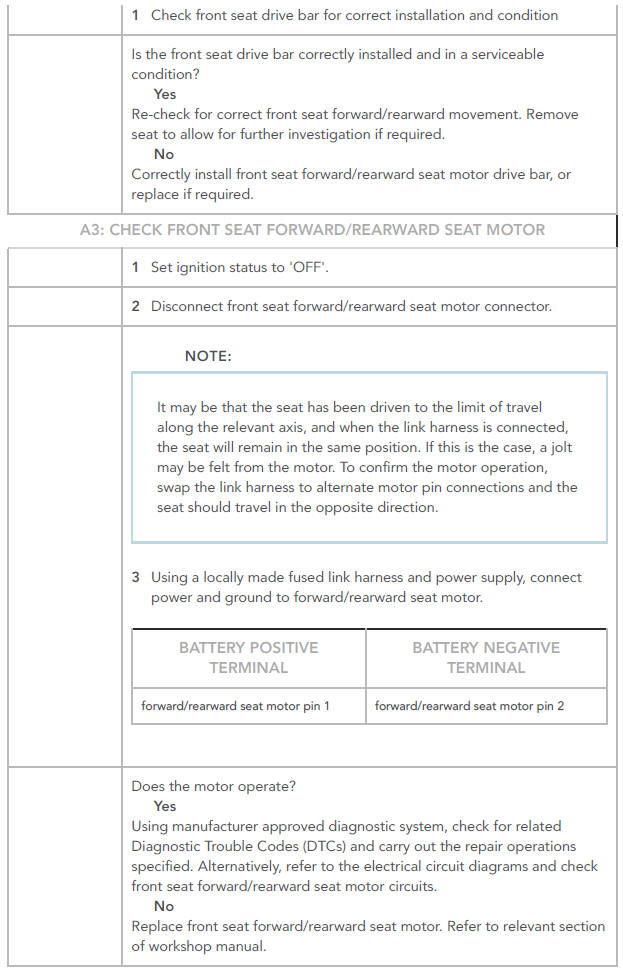

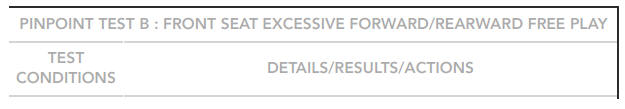

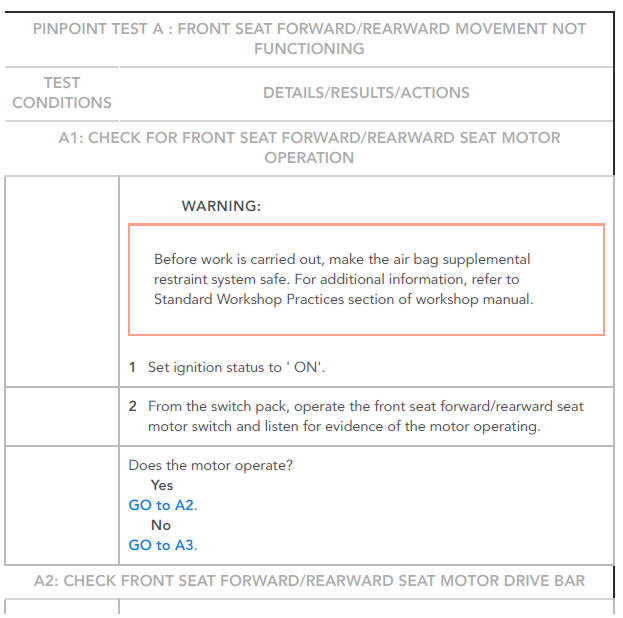

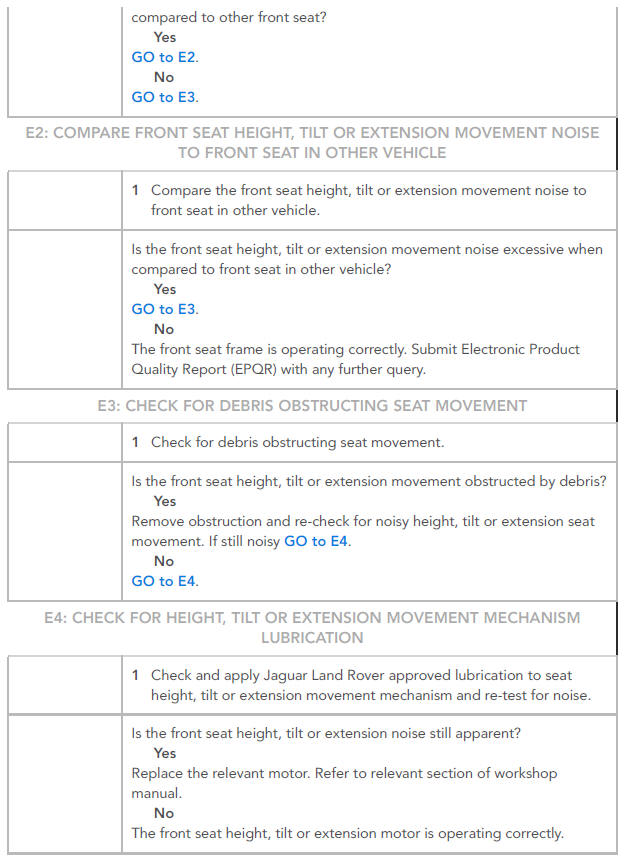

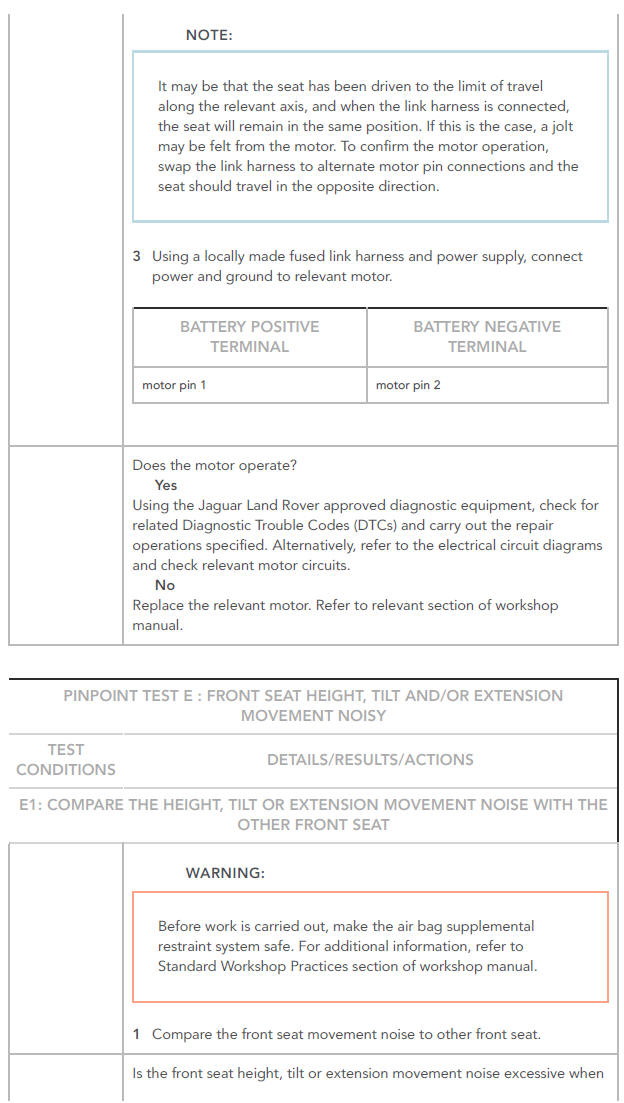

PINPOINT TESTS

PINPOINT TESTS

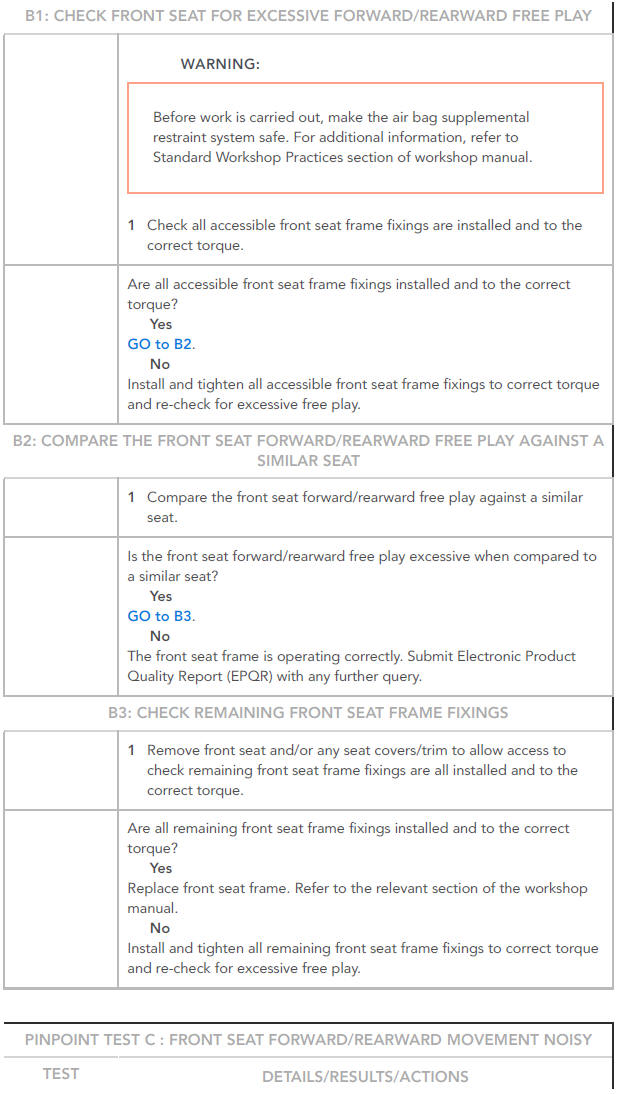

PINPOINT TESTS

PINPOINT TESTS

PINPOINT TESTS

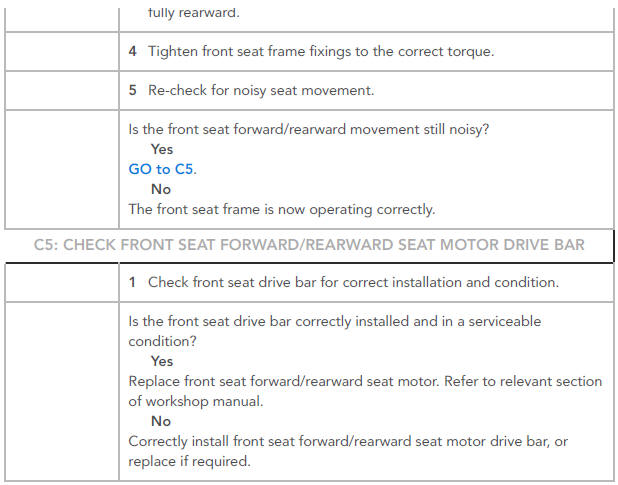

PINPOINT TESTS

WARNINGS:

  • Before work is carried out, make the air bag supplemental restraint system safe. For additional information, refer to Standard Workshop Practices section of workshop manual.
  • When carrying out the following steps, stand clear of all moving parts and ensure link harness is routed accordingly.

PINPOINT TESTS

PINPOINT TESTS

PINPOINT TESTS

DTC INDEX

For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00. REFER to: Diagnostic Trouble Code Index - DTC: Driver/Passenger Seat Module (DSM/PSM) (100-00 General Information, Description and Operation).
