REMOVAL

CAUTION:

Do not allow the side air curtain module to twist. Failure to follow this instruction may result in damage to the component.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Right illustration shown, left is similar.

All vehicles

Disconnect the battery ground cable.

Refer to: Specifications (414-01, Specifications).

Make the supplemental restraint system (SRS) system safe.

Refer to: Standard Workshop Practices (100-00, Description and Operation).

Refer to: Headliner (501-05, Removal and Installation).

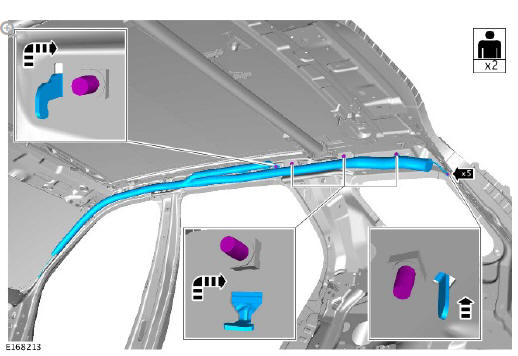

Supplemental restraint system side air curtain module (G1785537) removal and installation

Torque: 10 Nm

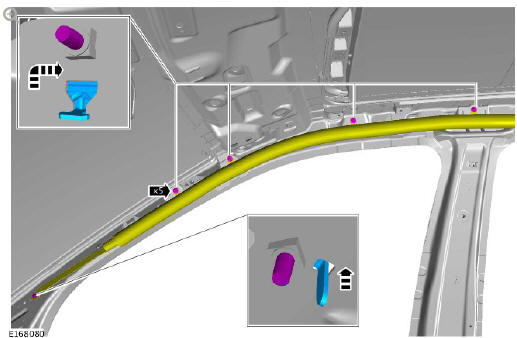

Supplemental restraint system side air curtain module (G1785537) removal and installation

Torque: 10 Nm

CAUTION:

Take extra care not to damage the wiring harnesses.

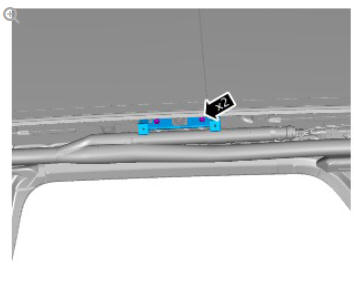

Supplemental restraint system side air curtain module (G1785537) removal and installation

CAUTION:

Take extra care not to damage the component.

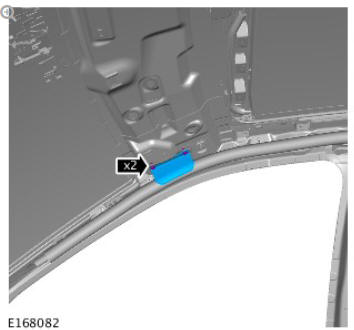

Supplemental restraint system side air curtain module (G1785537) removal and installation

Torque: 10 Nm

Vehicles without occasional rear seats

WARNING:

This step requires the aid of another technician.

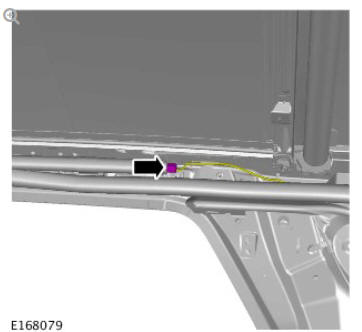

Supplemental restraint system side air curtain module (G1785537) removal and installation

Torque: 10 Nm

Vehicles with occasional rear seats

WARNING:

This step requires the aid of another technician.

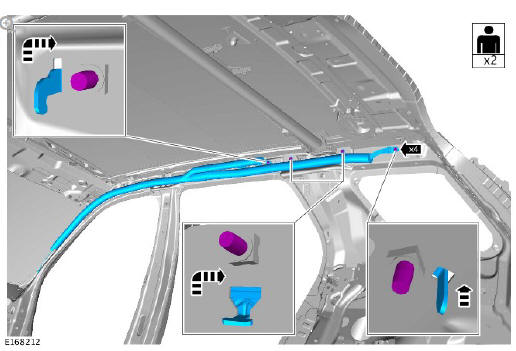

Supplemental restraint system side air curtain module (G1785537) removal and installation

Torque: 10 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.
