Land Rover Discovery: Side Panel Sheet
Metal Repairs 'B'
Pillar Outer
Panel (G1770904) - Installation
Installation
- Dress the flanges where necessary
.95.jpg)

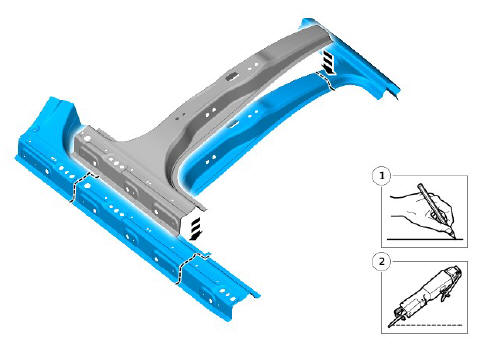

- Using the old B-pillar outer panel for reference measure, mark and
cut the new B-pillar outer panel where the Metal Inert Gas (MIG)
welded butt joints are to be made as indicated.
- Offer up the new B-pillar outer panel and clamp into position.
Check alignment if correct, proceed to next step, if not, rectify and
recheck before proceeding.
NOTE:
Follow Steps 1 and 2 as shown above to cut the MIG braze
slots.
.96.jpg)

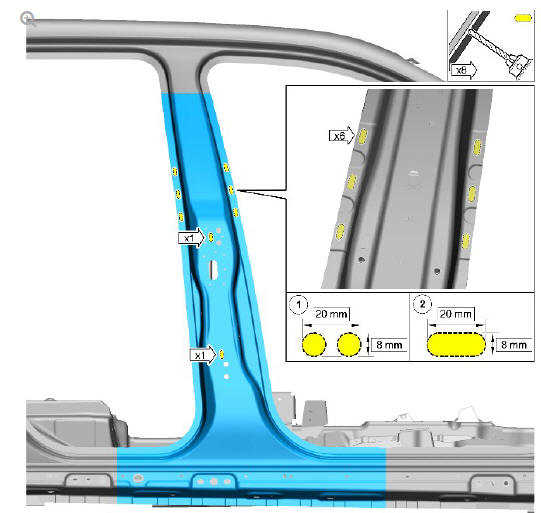

- Cut slots in the new B-pillar outer panel where the MIG braze slot
welds are to be installed as indicated.
NOTE:
Follow Steps 1 and 2 as shown above to cut the MIG braze
slots.
.97.jpg)

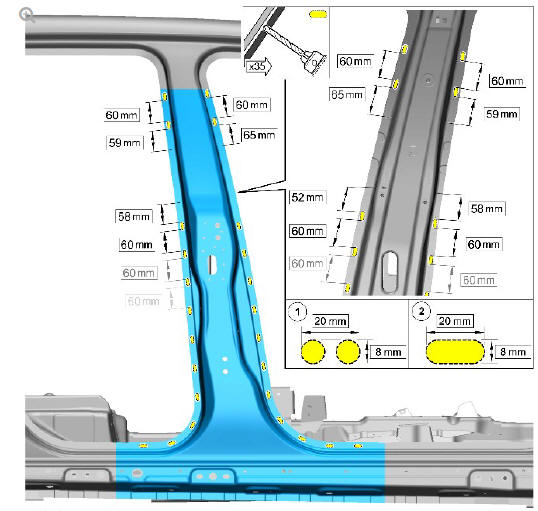

- Cut slots in the new B-pillar outer panel where the MIG braze slot
welds are to be installed as indicated.
NOTE:
Follow Steps 1 and 2 as shown above to cut the MIG braze
slots.

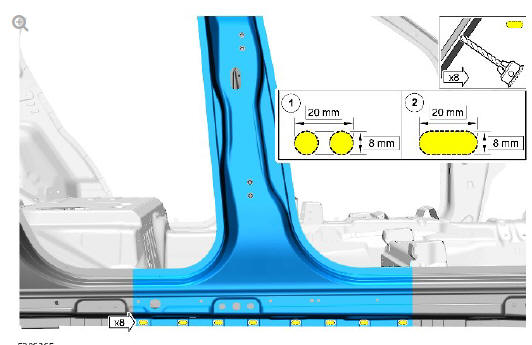

- Cut slots in the new B-pillar outer panel where the MIG braze slot
welds are to be installed as indicated.
.98.jpg)
- Remove the new B-pillar outer panel.
- Deburr the drilled holes.
- Prepare the panel joint surfaces including the Noise, Vibration and
Harshness (NVH) component
.99.jpg)

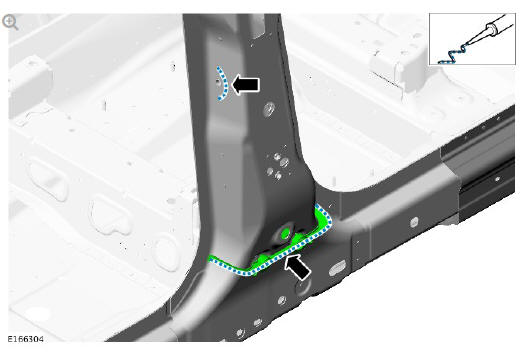

- Apply a 5 mm bead of Land Rover approved sealer adhesive to the
B-pillar and NVH component as indicated.
- Offer up the new B-pillar outer panel and clamp into position.
Check alignment if correct, proceed to next step, if not, rectify and
recheck before proceeding.
NOTE:
This joint must be MIG brazed due to the boron
reinforcement
.1.jpg)

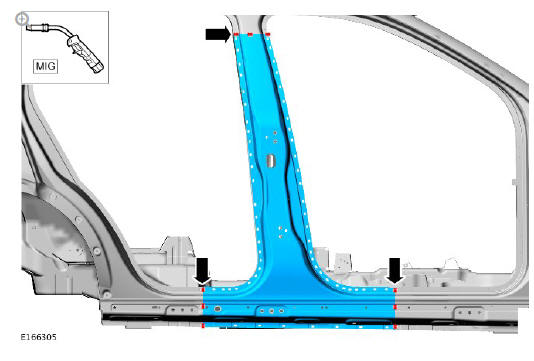

- Tack MIG weld the butt joints as indicated.
NOTE:
This slots must be MIG brazed due to the boron
reinforcement.
.2.jpg)

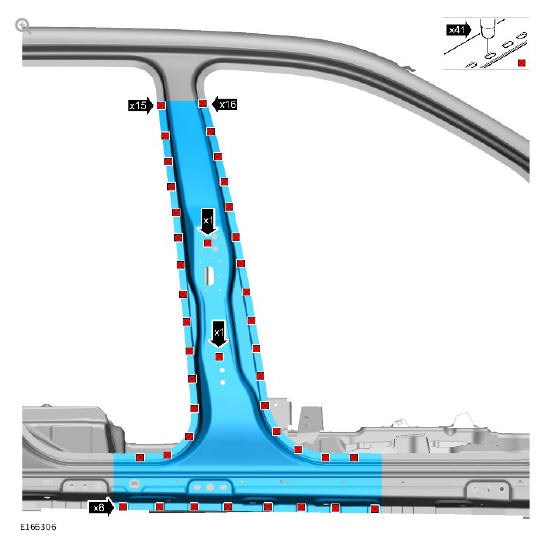

- Install the MIG braze slot welds as indicated.
.3.jpg)

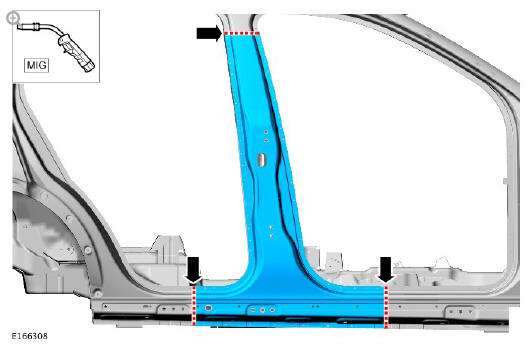

- MIG weld the upper and lower butt joints as indicated.
- Dress all welds.
- Install the rear door hinges and tighten the bolts to 30 Nm.
- Apply a Land Rover recommended sealer and seal the panel flange
edges of the MIG braze slot welds in the door aperture area to
prevent water ingress.
- Make sure that any open or exposed panel joints are correctly
sealed.
- Make sure corrosion protection is applied to all areas affected by
repair.
- The installation of associated panels and components is the reversal
of removal procedure.
