Land Rover Discovery: Rear end Sheet Metal
Repairs Inner
Quarter Panel
Assembly (G1770950)
- Installation
Installation
- Dress the flanges where necessary.
CAUTION:
This step will require the aid of another person as the panel
will be heavy.
- Offer up the new inner quarter panel assembly and clamp into
position. Check alignment, if correct proceed to next step, if not,
rectify and recheck before proceeding.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).73.jpg)

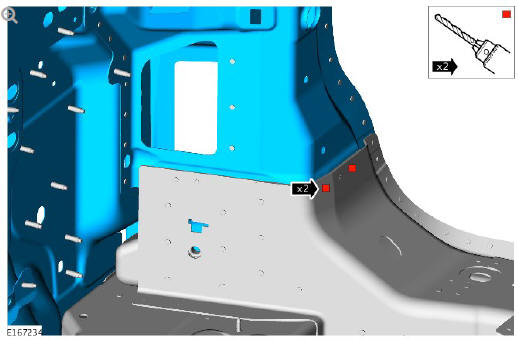

- Drill holes where the metal inert gas (MIG) plug welds are to be
installed as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).74.jpg)

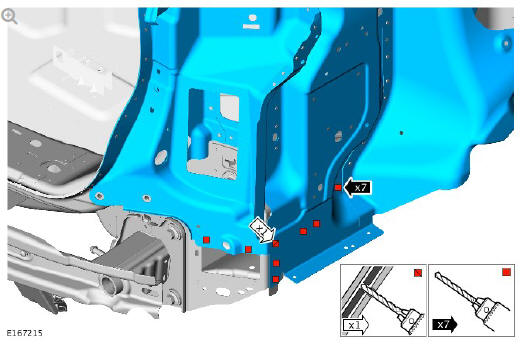

- Drill holes where the MIG plug welds are to be installed as
indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).75.jpg)

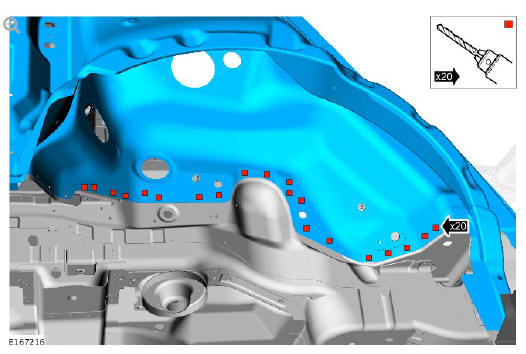

- Drill holes where the MIG plug welds are to be installed as
indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).76.jpg)

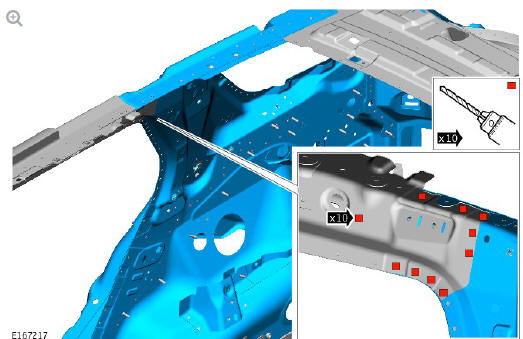

- Drill holes where the MIG plug welds are to be installed as
indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).77.jpg)

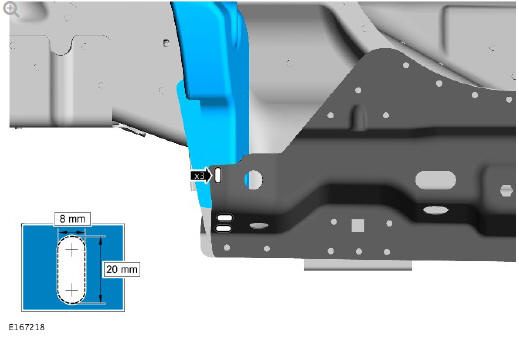

- Cut slots where the MIG braze slot welds are to be installed as
indicated.
CAUTION:
This step will require the aid of another person as the panel
will be heavy.
- Remove the inner quarter panel assembly.
- Deburr the drilled holes.
- Clean and prepare the panel surfaces.
CAUTION:
This step will require the aid of another person as the panel
will be heavy.
- Offer up the new inner quarter panel assembly and clamp into
position. Check alignment, if correct proceed to next step, if not,
rectify and recheck before proceeding.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).78.jpg)

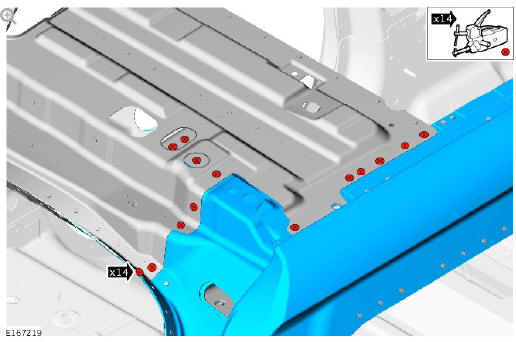

- Install the spot welds as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).79.jpg)

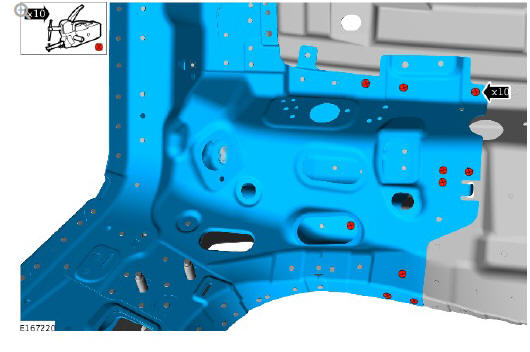

- Install the spot welds as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).80.jpg)

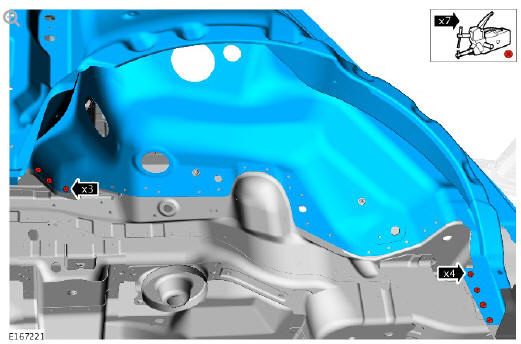

- Install the spot welds as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).81.jpg)

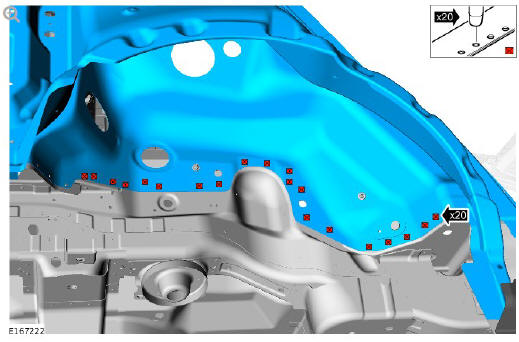

- Install the MIG plug welds as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(2).82.jpg)

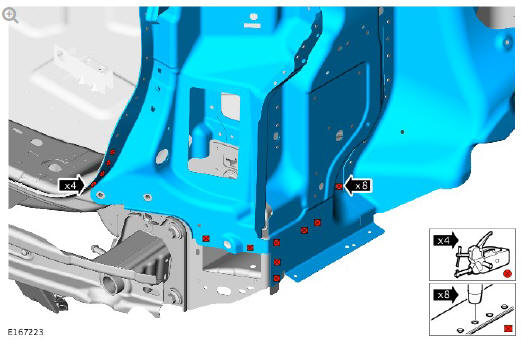

- Install the MIG plug and the spot welds as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(2).83.jpg)

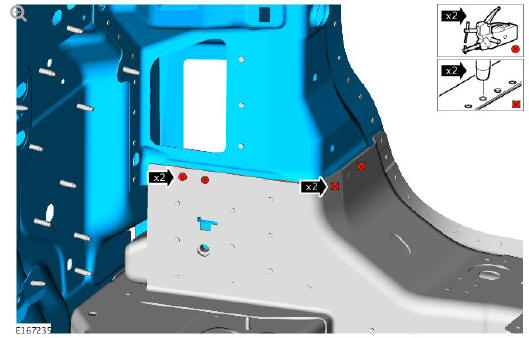

- Install the MIG plug and the spot welds as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).84.jpg)

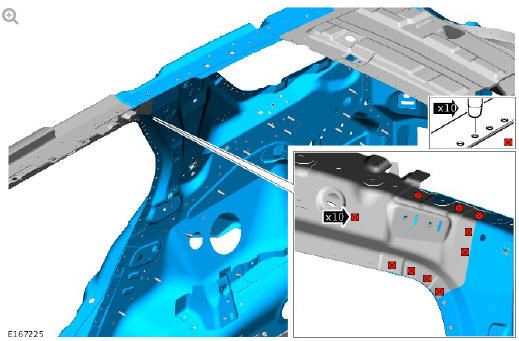

- Install the MIG plug welds as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).85.jpg)

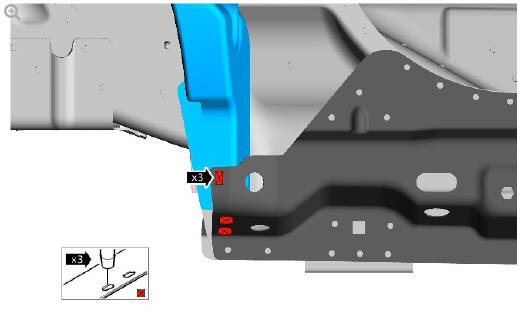

- MIG braze the slots as indicated.
NOTE:
The components that are located/installed to these weld
studs must be offered up and cross checked for alignment
prior to the installation of the weld studs to the new panel.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).86.jpg)

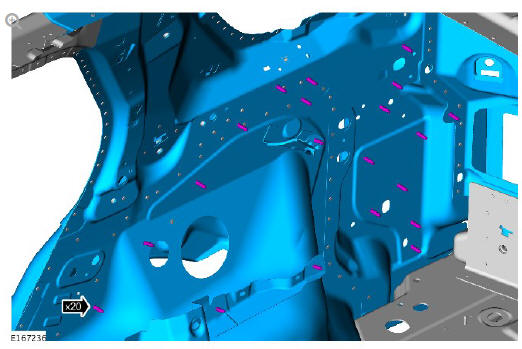

- Prepare the new panel and install the weld studs in their original
locations as indicated.
NOTE:
The components that are located/installed to these weld
studs must be offered up and cross checked for alignment
prior to the installation of the weld studs to the new panel.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).87.jpg)

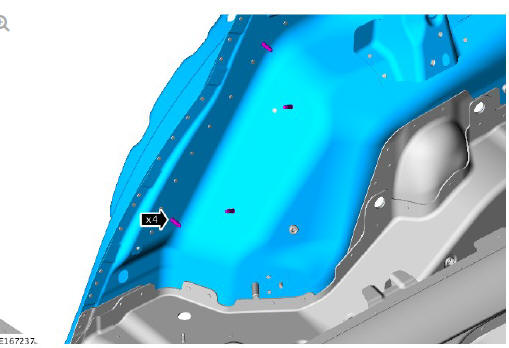

- Prepare the new panel and install the weld studs in their original
locations as indicated.
- Dress all welds.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).88.jpg)

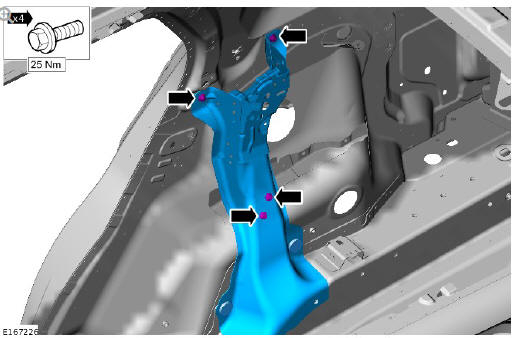

- Install the bracket and tighten the bolts to 25Nm as indicated.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).89.jpg)

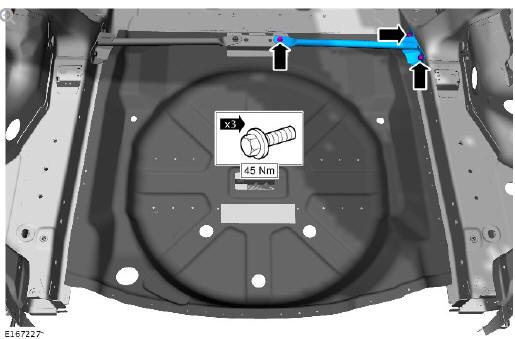

- Install the r3
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).90.jpg)

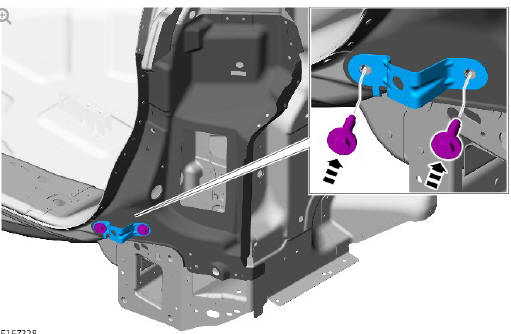

- Install the liftgate buffer and tighten the bolts to 25Nm as
indicated.
- Install the quarter panel.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).91.jpg)
- Tack MIG weld the quarter panel butt joint as indicated.
- Install the quarter panel MIG and spot welds.
![Rear end sheet metal repairs inner quarter panel assembly (G1770950) - Installation](images/books/227/index(3).92.jpg)

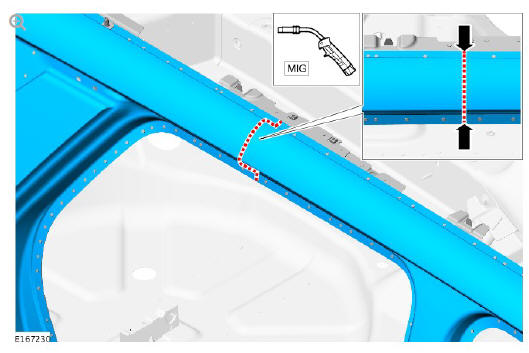

- Mig weld the quarter panel butt joint as indicated.
- Make sure that any open or exposed panel joints are sealed with a
Land Rover recommended sealer.
- Make sure corrosion protection is applied to all areas affected by
repair.
- The installation of associated panels and components is the reversal
of removal procedure.
