Land Rover Discovery: Rear Center Safety Belt Retractor (G1808246) / Removal and Installation
Land Rover Discovery (2009–2016) Service Manual / Body / Seatbelt and Supplemental Restraint
System / Rear Center Safety
Belt Retractor (G1808246)
/ Removal and Installation
Removal
NOTES:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Removal steps in this procedure may contain installation details.
Disconnect the ground cable.
Refer to: Specifications (414-01, Specifications).

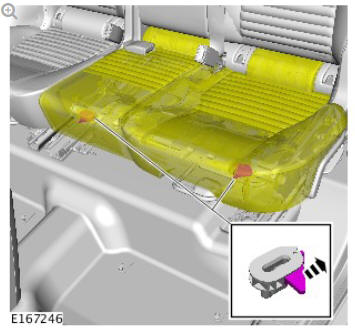

.74.jpg)
NOTE:
LH illustration shown, RH is similar.

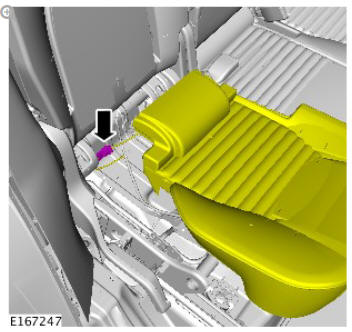

.75.jpg)

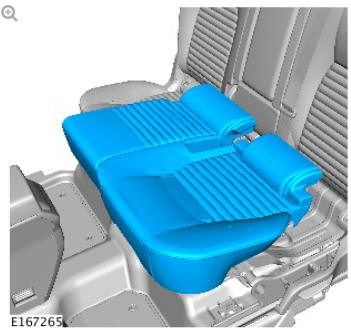

.76.jpg)

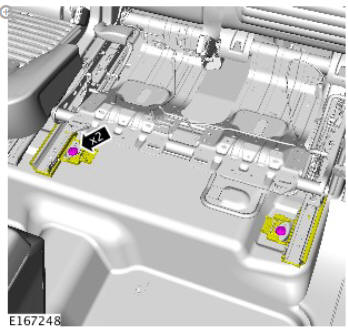

.77.jpg)
Torque: 40 Nm

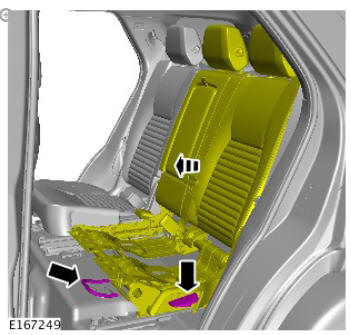

.78.jpg)

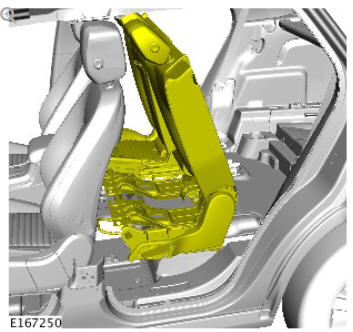

.79.jpg)

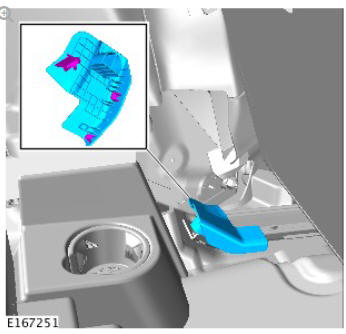

.80.jpg)

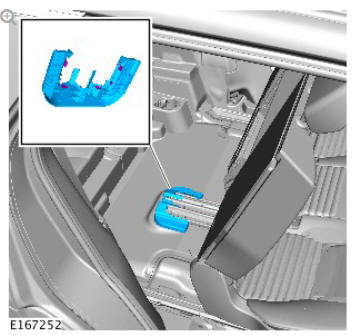

.81.jpg)

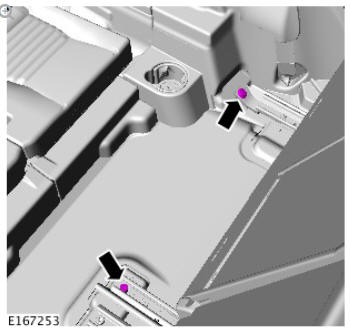

.82.jpg)

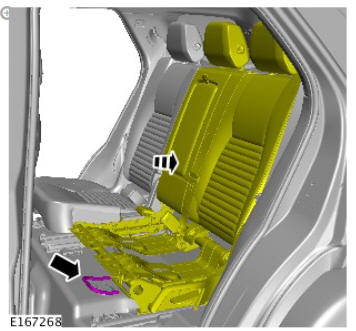

.83.jpg)
WARNING:
This step requires the aid of another technician.
CAUTIONS:
- Make sure to protect the paintwork.
- Protect the surrounding paintwork to avoid damage.

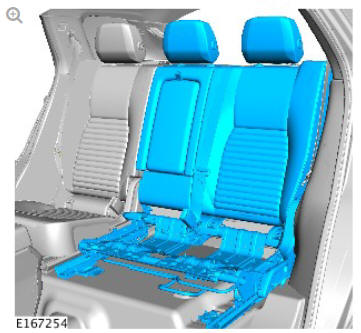

.84.jpg)

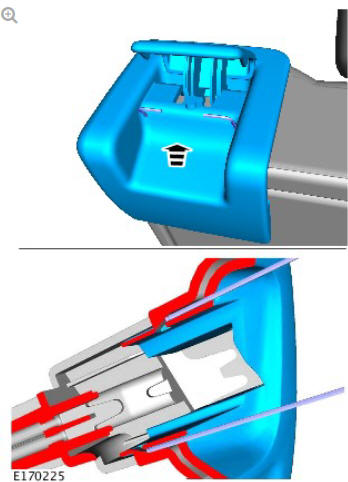

.85.jpg)

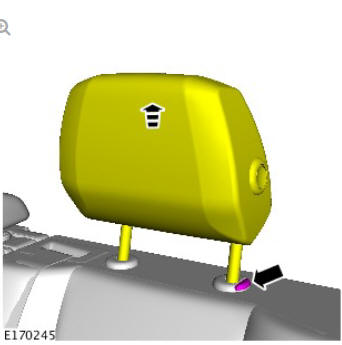

.86.jpg)

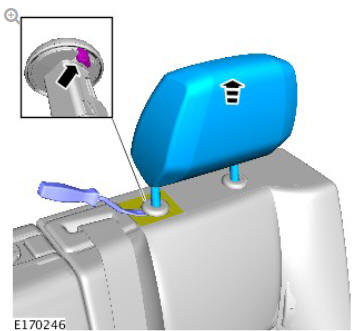

.87.jpg)
- Using a suitable tool, push in the clip to release the headrest
NOTE:
Repeat the procedure for the other side.

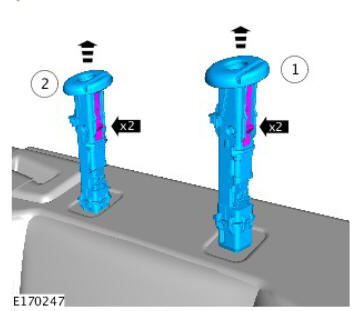

.88.jpg)

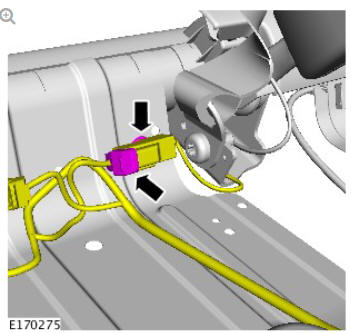

.89.jpg)

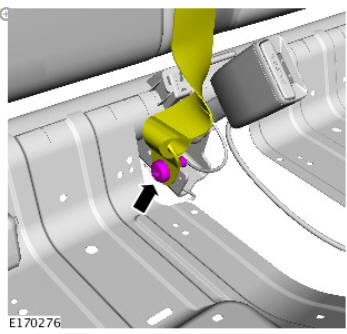

.90.jpg)
Torque: 40 Nm

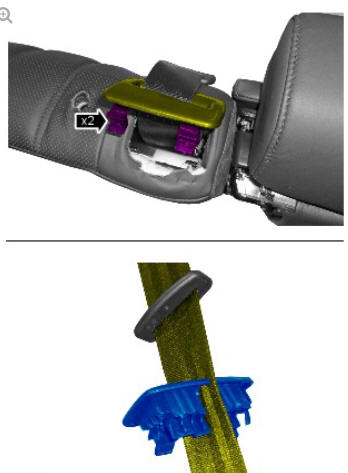

.91.jpg)

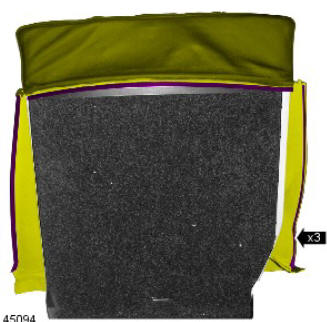

.92.jpg)
CAUTION:
Care must be taken not to damage the component.

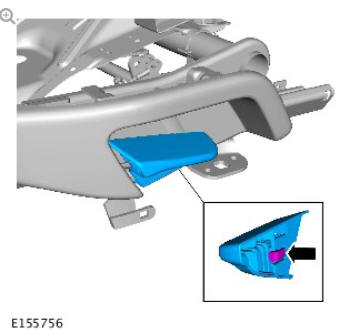

.93.jpg)

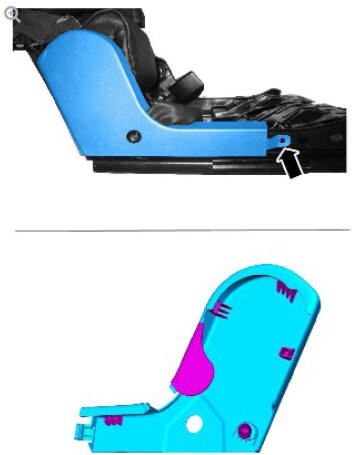

.94.jpg)

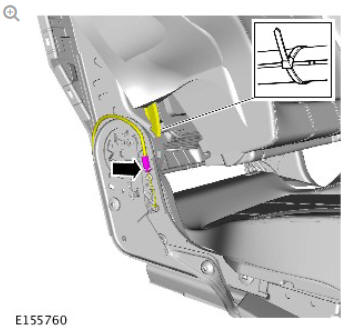

.95.jpg)

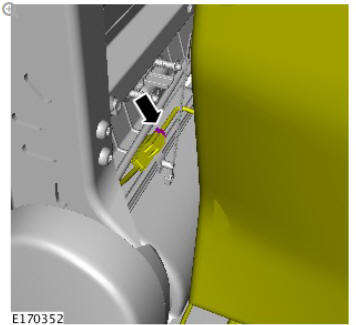

.96.jpg)
NOTE:
LH shown.

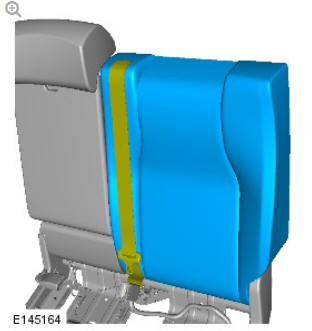

.97.jpg)

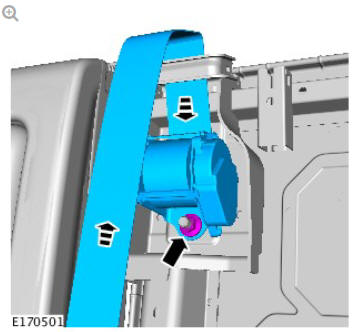

.98.jpg)
Torque: 40 Nm
INSTALLATION
To install, reverse the removal procedure.
