Land Rover Discovery: Rear Armature (G1780372) / Removal and Installation

Land Rover Discovery (2009–2016) Service Manual / Body / Bumpers / Rear Armature (G1780372) / Removal and Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

All vehicles

WARNING:

Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.
  2. Refer to: Rear Bumper Cover (501-19, Removal and Installation).

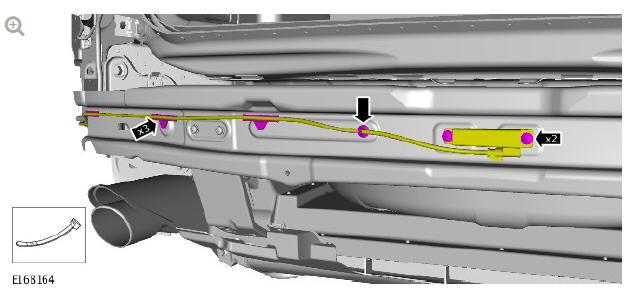

Rear armature (G1780372) removal and installation

Vehicles with occasional rear seats

WARNING:

Observe due care when working near a hot exhaust system.

Rear armature (G1780372) removal and installation

All vehicles

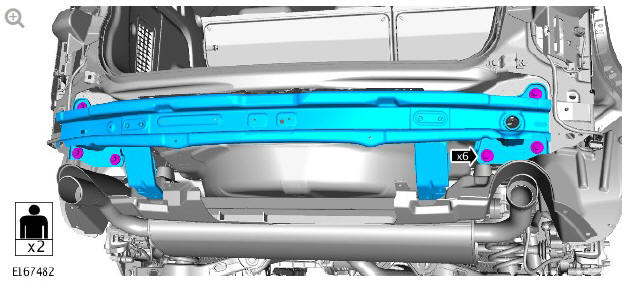

Rear armature (G1780372) removal and installation

Torque: 30 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
