Land Rover Discovery: Navigation SD card
.gif)

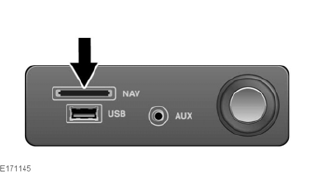

The Navigation SD card reader is located in the front centre cubby box.
Make sure the SD card is located correctly in the card reader before operating the Navigation system.
Note: If for any reason the SD card is ejected while the Navigation system is in operation, locate the SD card correctly in the card reader and touch Retry soft key on the Touch screen, when prompted.
USING THE NAVIGATION SYSTEM
- In the interests of safety, only operate, adjust, or view the system when it is safe to do so.
- The Navigation system is not a substitute for driving safely, with due care and attention. Drivers should not assume that a feature will correct errors in judgement when driving. It is the driver's responsibility to stay alert, drive safely, and be in control of the vehicle at all times, relative to the prevailing conditions. It is also the driver's responsibility to determine the safety of the route suggested by the Navigation system. The Navigation system may not function properly in all circumstances.
- Do not allow the system to distract the driver while the vehicle is moving. Driver distraction can lead to accidents, causing serious injury or death.
To access the Navigation system, press the Navigation button or touch the NAVIGATION area on the HOME screen.
Note: The Navigation system will remain active until the ignition is switched off and the driver's door is opened.
This will show the current vehicle position.
Touch the NAV MENU soft key to display the NAV MENU screen.
At this point, the first time user should set up personal preferences in the NAV SET-UP area. These settings are applied, whenever the Navigation system is used.
