REMOVAL

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTES:

  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

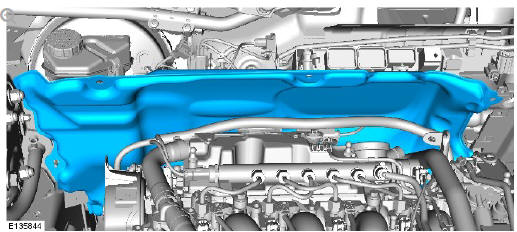

Front end body panels secondary bulkhead centre panel - ingenium I4 2.0l diesel (G1893371) removal and installation

Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

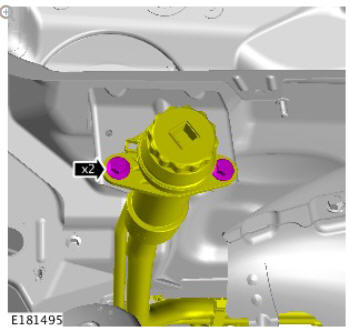

Front end body panels secondary bulkhead centre panel - ingenium I4 2.0l diesel (G1893371) removal and installation

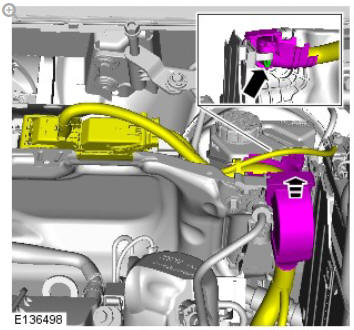

Front end body panels secondary bulkhead centre panel - ingenium I4 2.0l diesel (G1893371) removal and installation

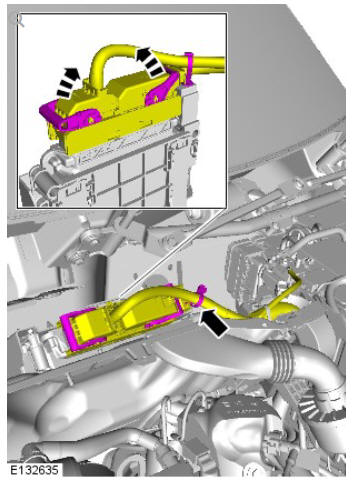

Front end body panels secondary bulkhead centre panel - ingenium I4 2.0l diesel (G1893371) removal and installation

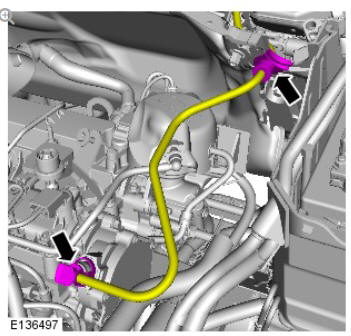

Front end body panels secondary bulkhead centre panel - ingenium I4 2.0l diesel (G1893371) removal and installation

Torque: 8 Nm

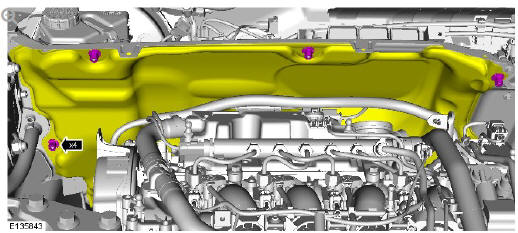

Front end body panels secondary bulkhead centre panel - ingenium I4 2.0l diesel (G1893371) removal and installation

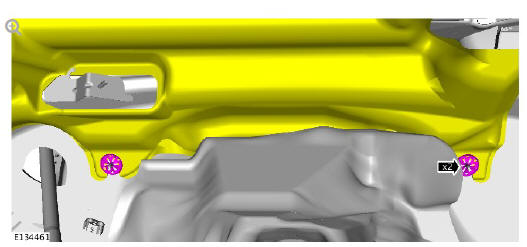

Front end body panels secondary bulkhead centre panel - ingenium I4 2.0l diesel (G1893371) removal and installation

Torque: 10 Nm

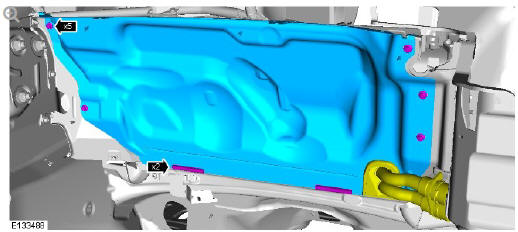

Front end body panels secondary bulkhead centre panel - ingenium I4 2.0l diesel (G1893371) removal and installation

INSTALLATION

  1. To install, reverse the removal procedure.

Front end body panels specifications

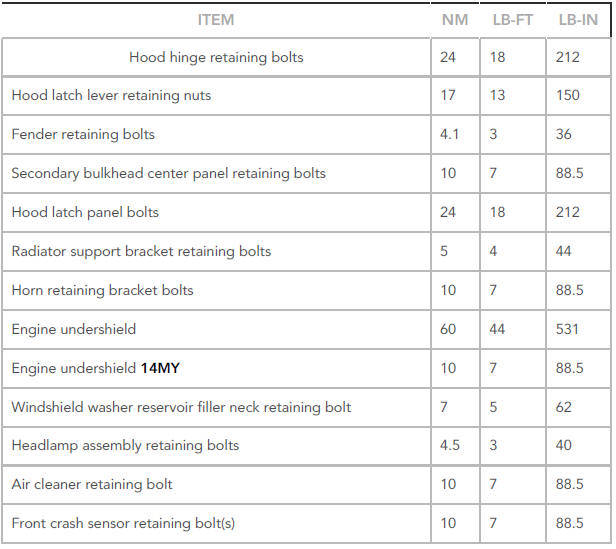

Torque Specifications
