Land Rover Discovery: Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

Land Rover Discovery (2009–2016) Service Manual / Powertrain / Exhaust System / Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

REMOVAL

WARNING:

Observe due care when working near a hot exhaust system.

NOTE:

Removal steps in this procedure may contain installation details.

WARNING:

Make sure to support the vehicle with axle stands.

Raise and support the vehicle.

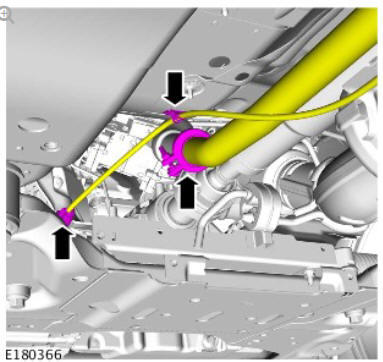

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

Torque: 55 Nm

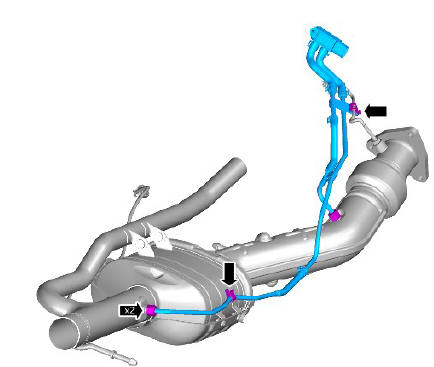

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

Torque: 10 Nm

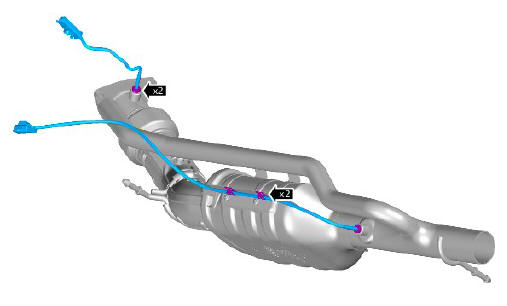

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

Torque: 6 Nm

CAUTION:

Make sure that new nuts are installed.

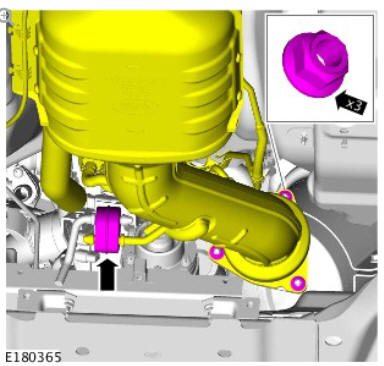

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

Torque: 24 Nm

NOTE:

Install new gasket.

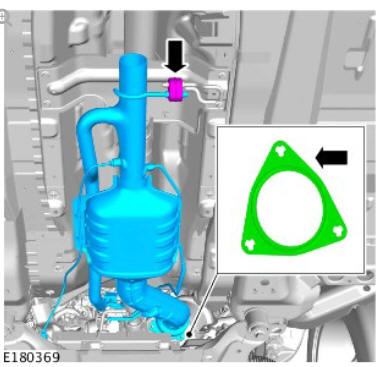

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

NOTE:

Do not disassemble further if the component is removed for access only.

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

Torque: 35 Nm

Exhaust - Ingenium i4 2.0l Diesel Diesel Particulate Filter - Vehicles Without- Diesel Exhaust Fluid (G1887685) / Removal Installation

Torque: 35 Nm

INSTALLATION

  1. To install, reverse the removal procedure.
  2. If a new unit is installed, configure using Land Rover approved diagnostic equipment.
