Land Rover Discovery: Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid
Injector (G1875907) / Removal and Installation
GENERAL EQUIPMENT
Land Rover diagnostic equipment
PART(S)
![PART(S)](images/books/227/index479(9).jpg)
REMOVAL
WARNING:
Observe due care when working near a hot exhaust system.
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
NOTE:
Removal steps in this procedure may contain installation details.
WARNING:
Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
CAUTIONS:
- Make sure that all openings are sealed. Use new blanking
caps.
- Make sure that the area around the component is clean
and free of foreign material.

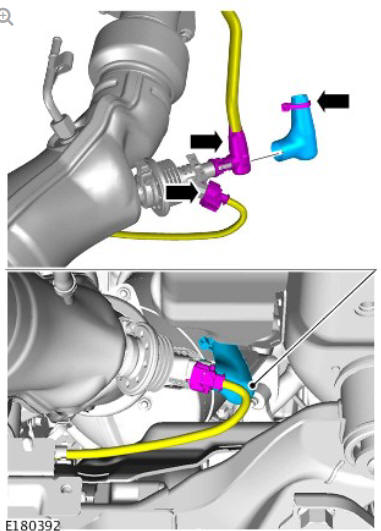

- Be prepared to collect escaping fluids.
![Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Injector (G1875907) / Removal and Installation](images/books/227/index480(10).jpg)
![Engine Emission Control - Ingenium i4 2.0l Diesel Diesel Exhaust Fluid Injector (G1875907) / Removal and Installation](images/books/227/index481(9).jpg)

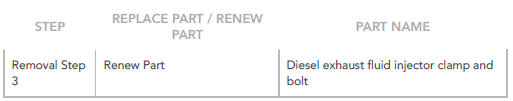

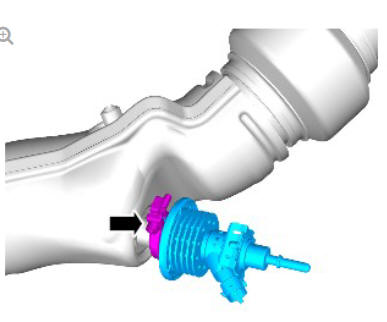

Discard the clamp.
Renew Part: Diesel exhaust fluid injector clamp and bolt.
Torque: 10 Nm
INSTALLATION
- To install, reverse the removal procedure.
- If a new component has been installed, configure using Land Rover
approved diagnostic equipment.
General Equipment: Land Rover diagnostic equipment
- Using Land Rover approved diagnostic equipment, prime the diesel
exhaust fluid system.
General Equipment: Land Rover diagnostic equipment
